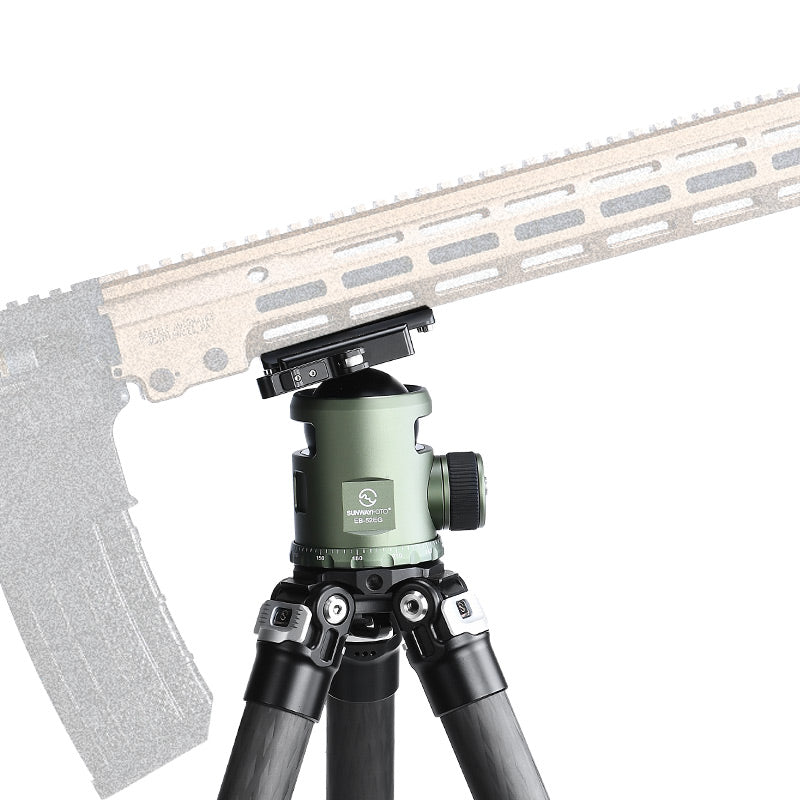

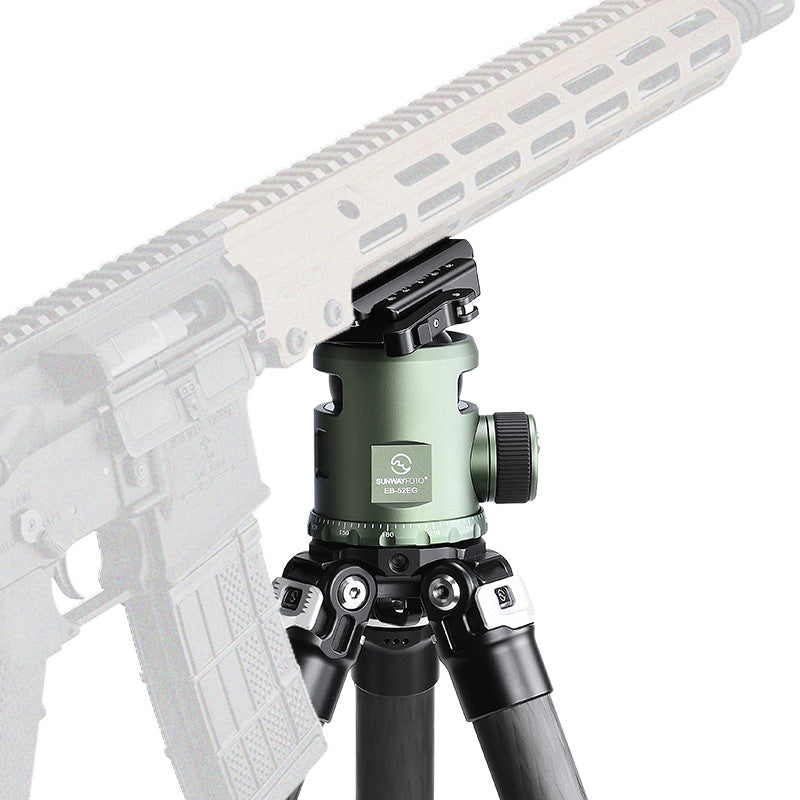

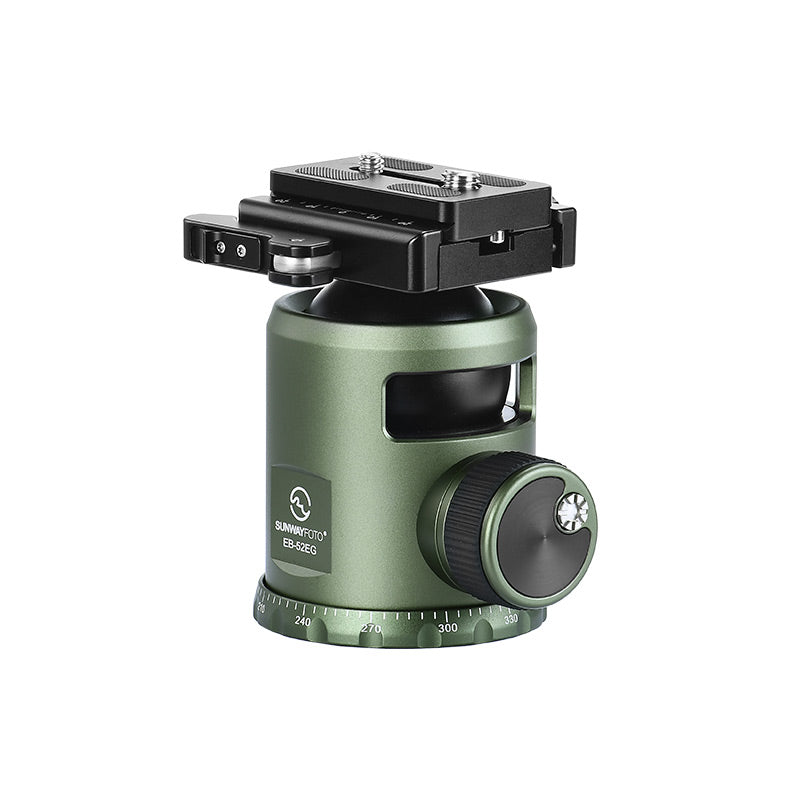

EB-52EGD 52mm Tripod Ball Head for Rifle without Notch with Lever Arca Swiss Clamp DLC-60, Load 44.1lb(20KG),OD Green
Check your setup
Match this item to your camera, device and existing support system. Check the model, mounting thread, clamp type and dimensions in the product details.
Ask us about compatibility ↗Shipping & returns
Review delivery information and return conditions before placing your order.
The right connection makes all the difference.
KNOW YOUR EQUIPMENT
The details make the difference.
Body Material：T6061 Aluminum
Color：OD Green
Ball Diameter ：52mm/2.04in
Height：100mm/3.93in
Net Weight：594.3g/1.31lb
Load Capacity：20KG/44.1lb
Base Diameter：70mm/2.76in

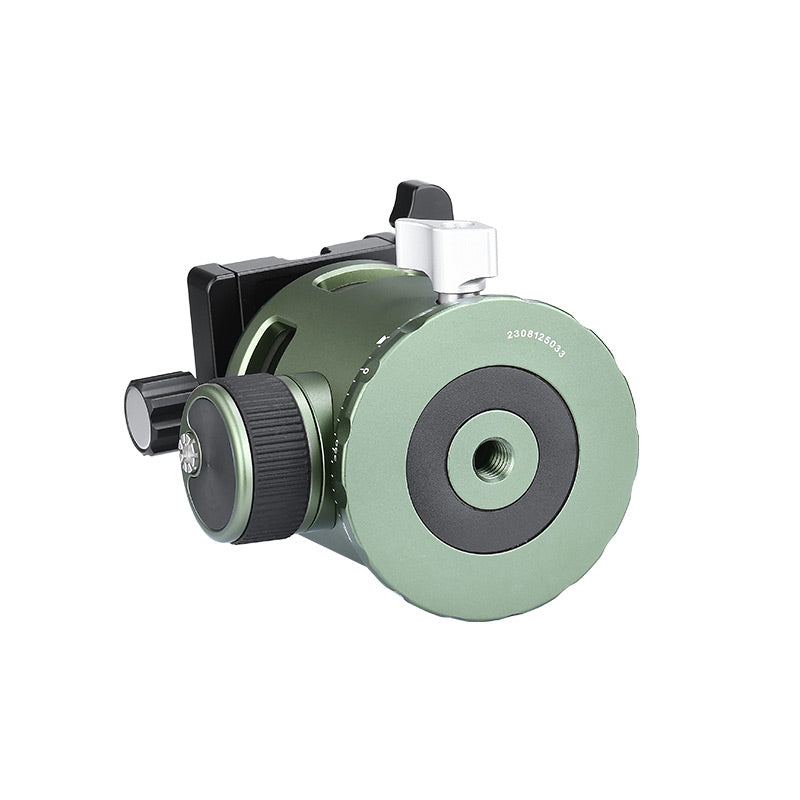

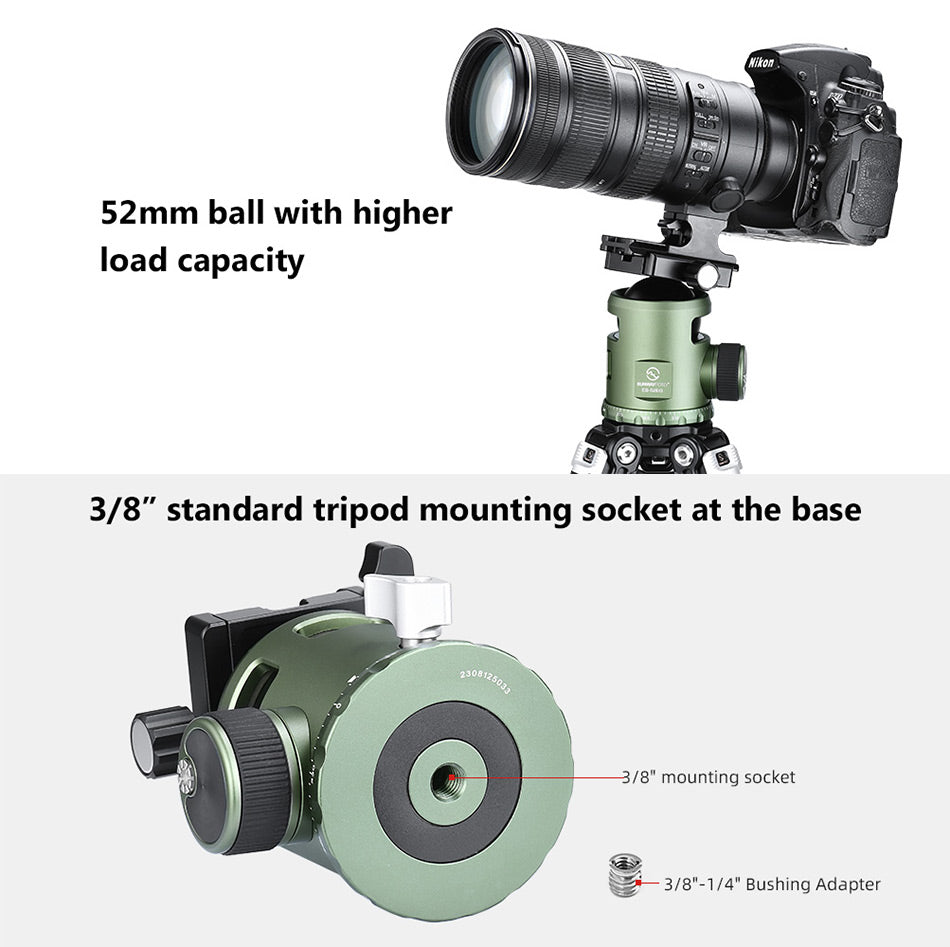

Base Thread Socket：UNC3/8"-16
Clamp Model：DLC-60
✪T6061 grade aluminum main body, elaborately CNC machined with hard-anodized finish making it durable and resistant to abrasion and corrosion.It is adopted by Army green hard oxidation,suitable for out-door jungle,easy to hide and confuse targets.

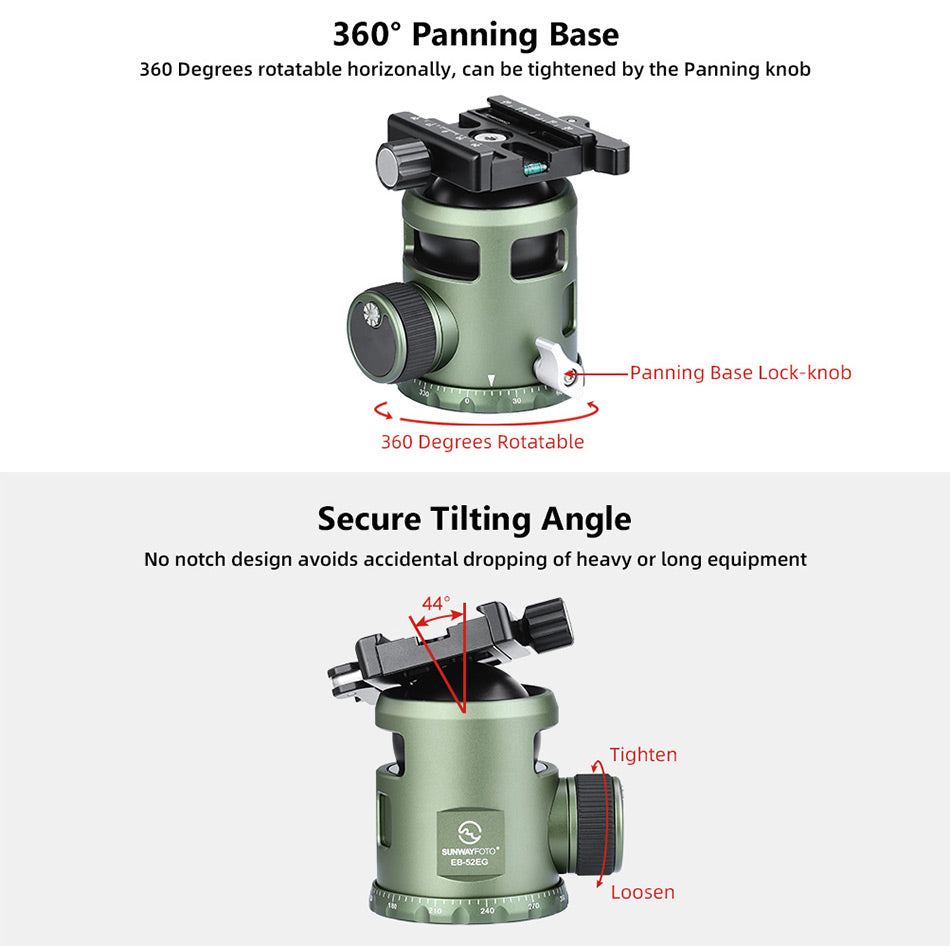

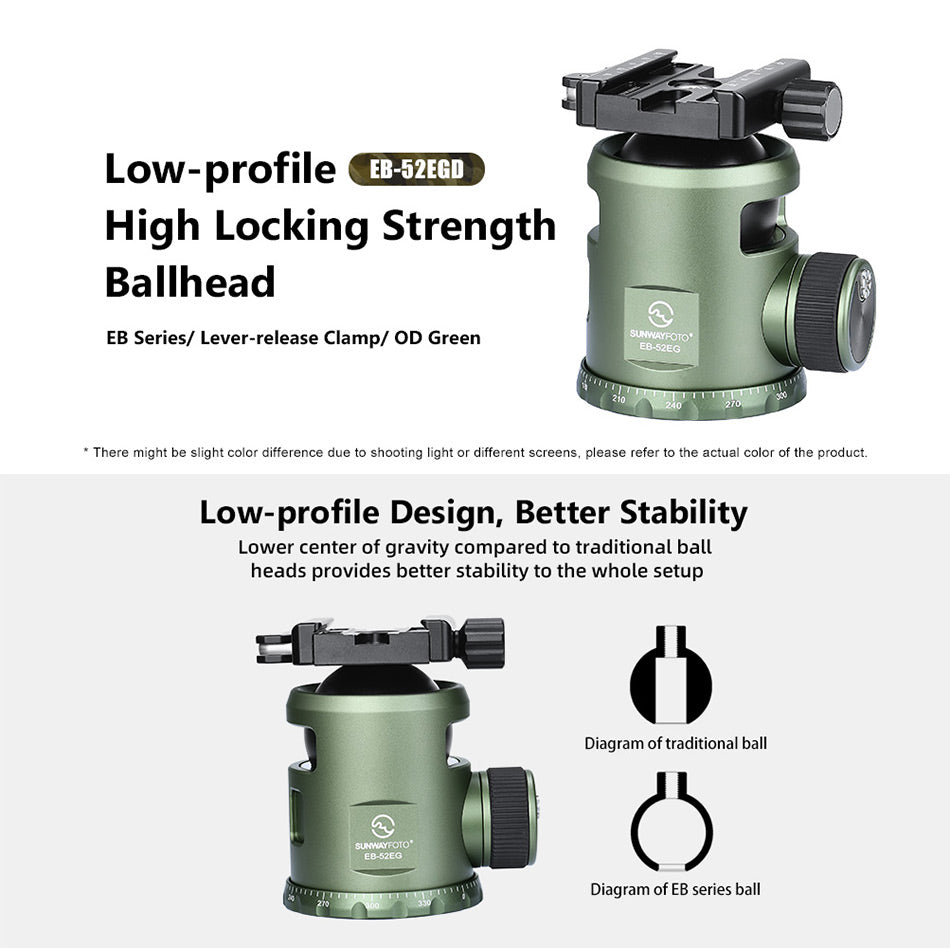

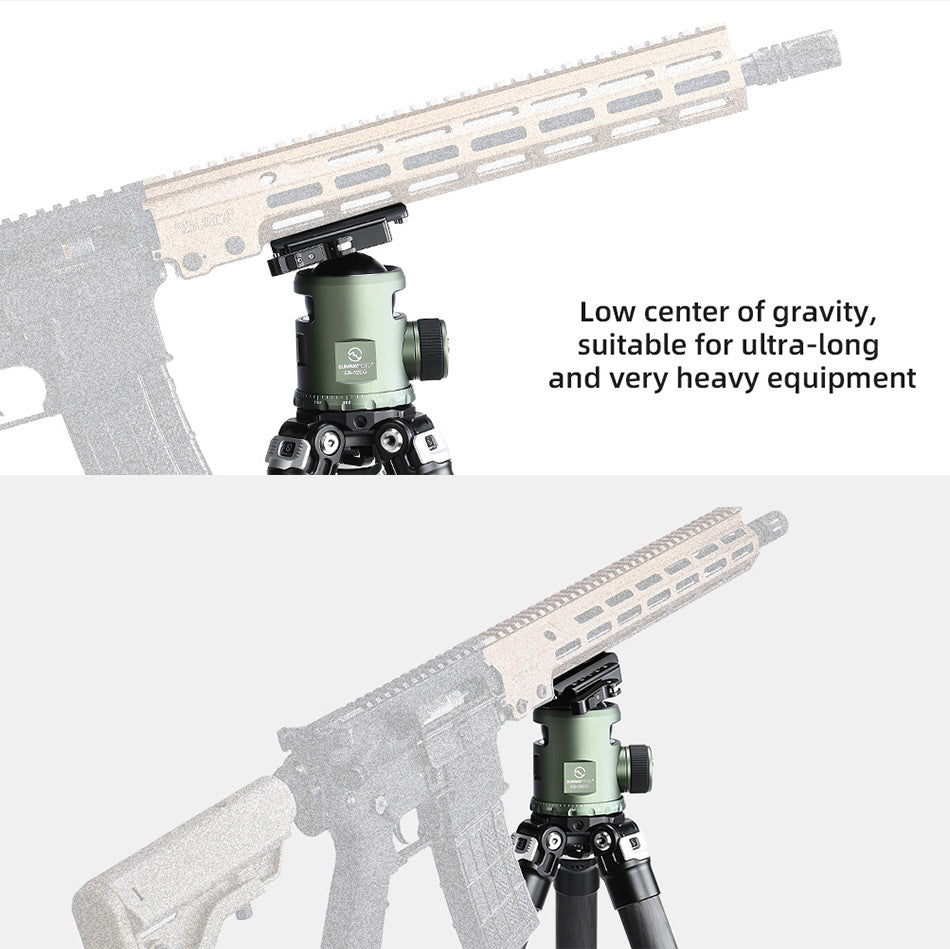

✪Compared with traditional ballheads, EB-52EGD is designed without neck to provide the head with even lower center of gravity hence ensuring much better stability when it's loaded with cameras or rifles.

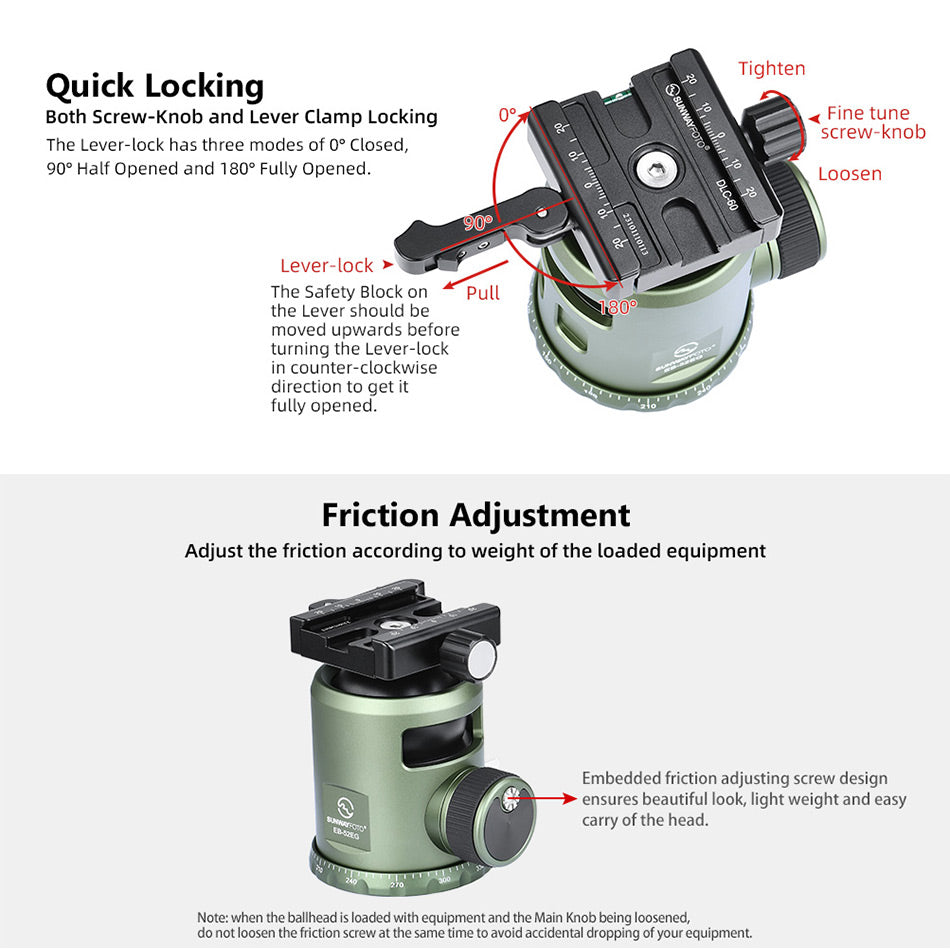

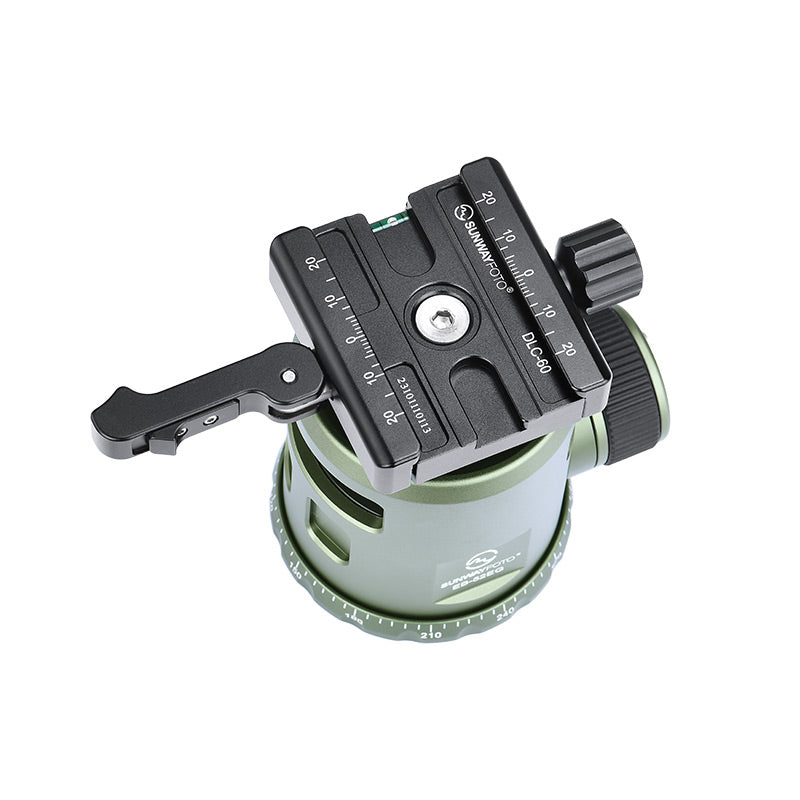

✪Both the screw-knob and lever-lock can be used for tightening, which also provides better compatibility of different QR plates as well as quick-locking.
✪Clamp width can be fine tuned to work with different Arca QR plates.Anti-slip block effectively avoids dropping of the loaded equipment under power shock.
✪Adjust and set appropriate friction according to equpiment weight to ensure safety and quicker photo composition

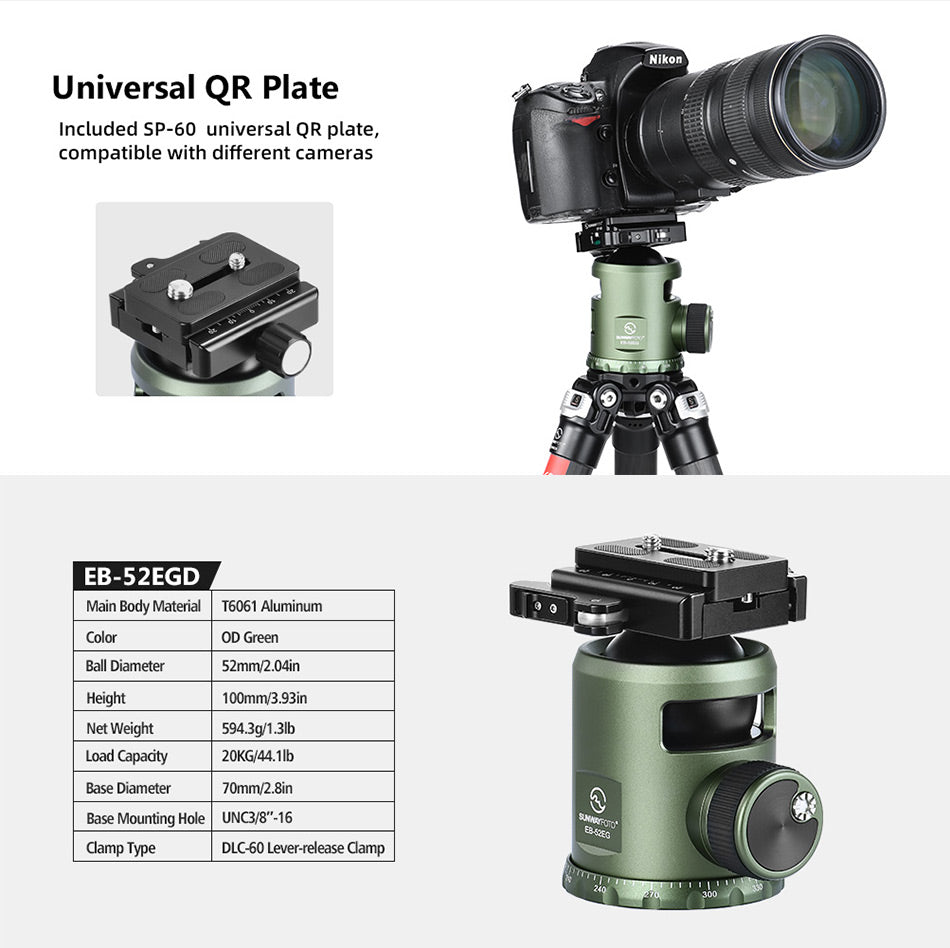

✪Arca QR plate SP-60 is included and comes with two screws of 1/4-20 and 3/8-16 standards each.
