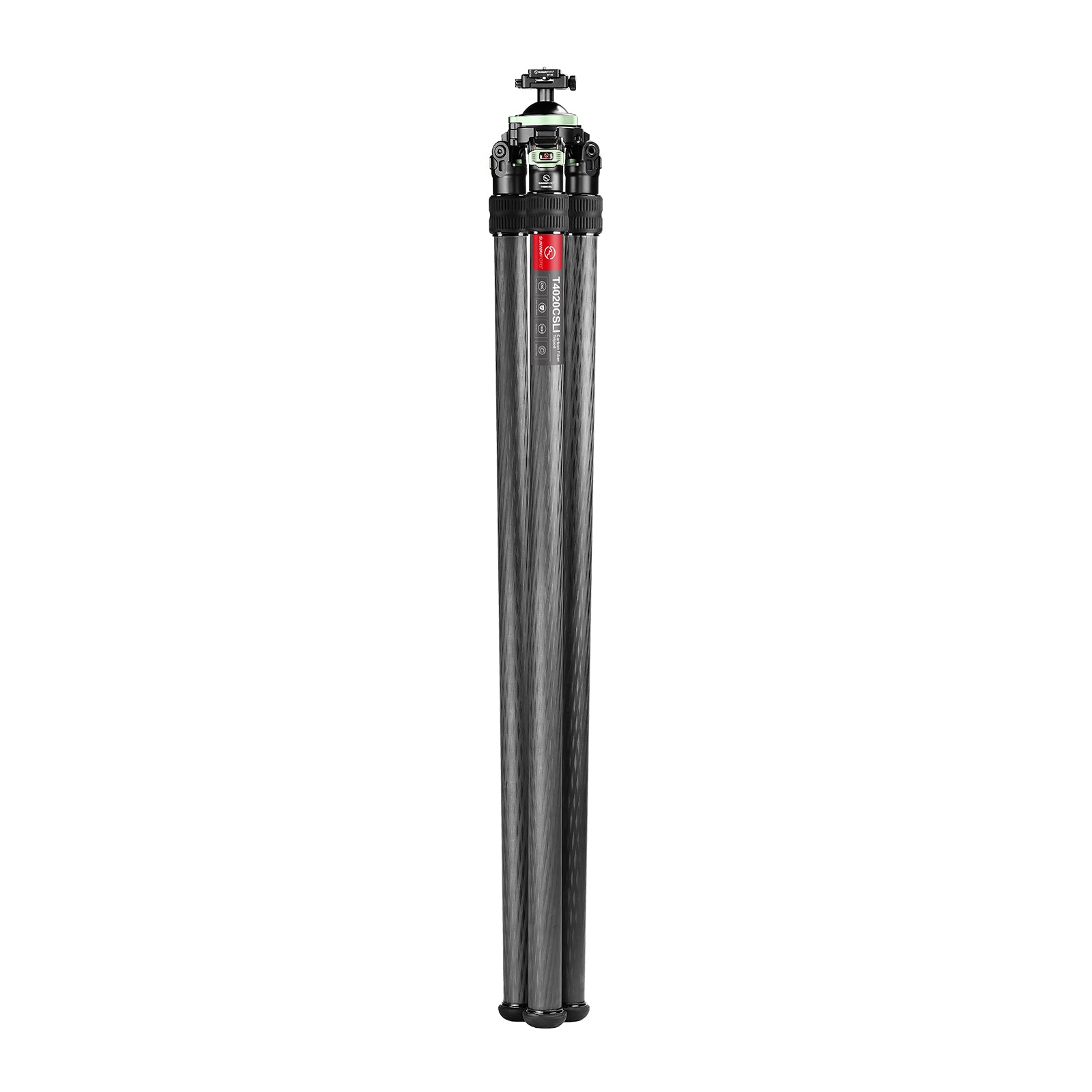

T4020CSLI, 70” Tall Inverted Leg Series Carbon Fiber Tripod with 65mm Arca Ballhead, 40mm Tubes Two Section
Check your setup
Match this item to your camera, device and existing support system. Check the model, mounting thread, clamp type and dimensions in the product details.
Ask us about compatibility ↗Shipping & returns
Review delivery information and return conditions before placing your order.
The right connection makes all the difference.
KNOW YOUR EQUIPMENT
The details make the difference.

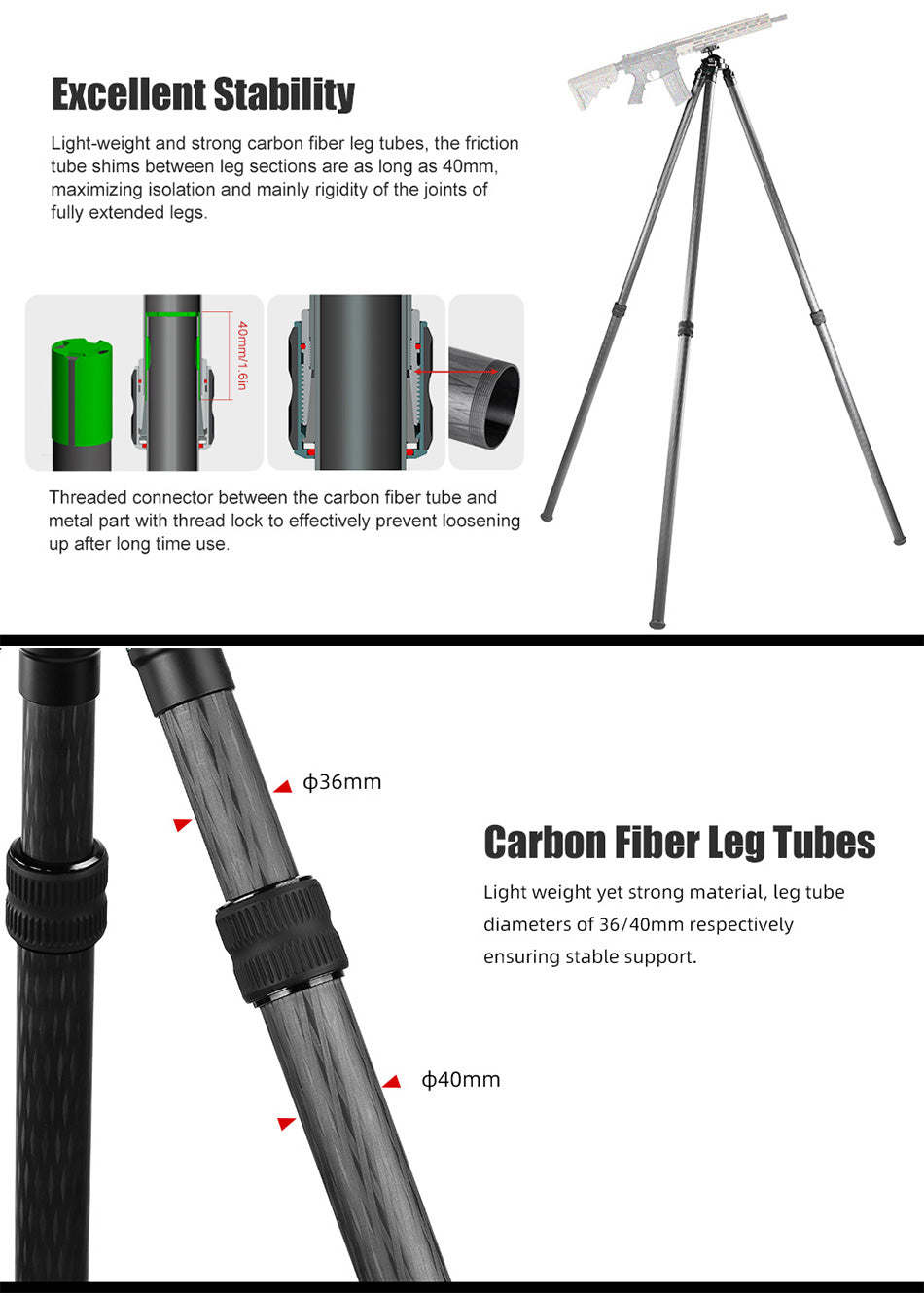

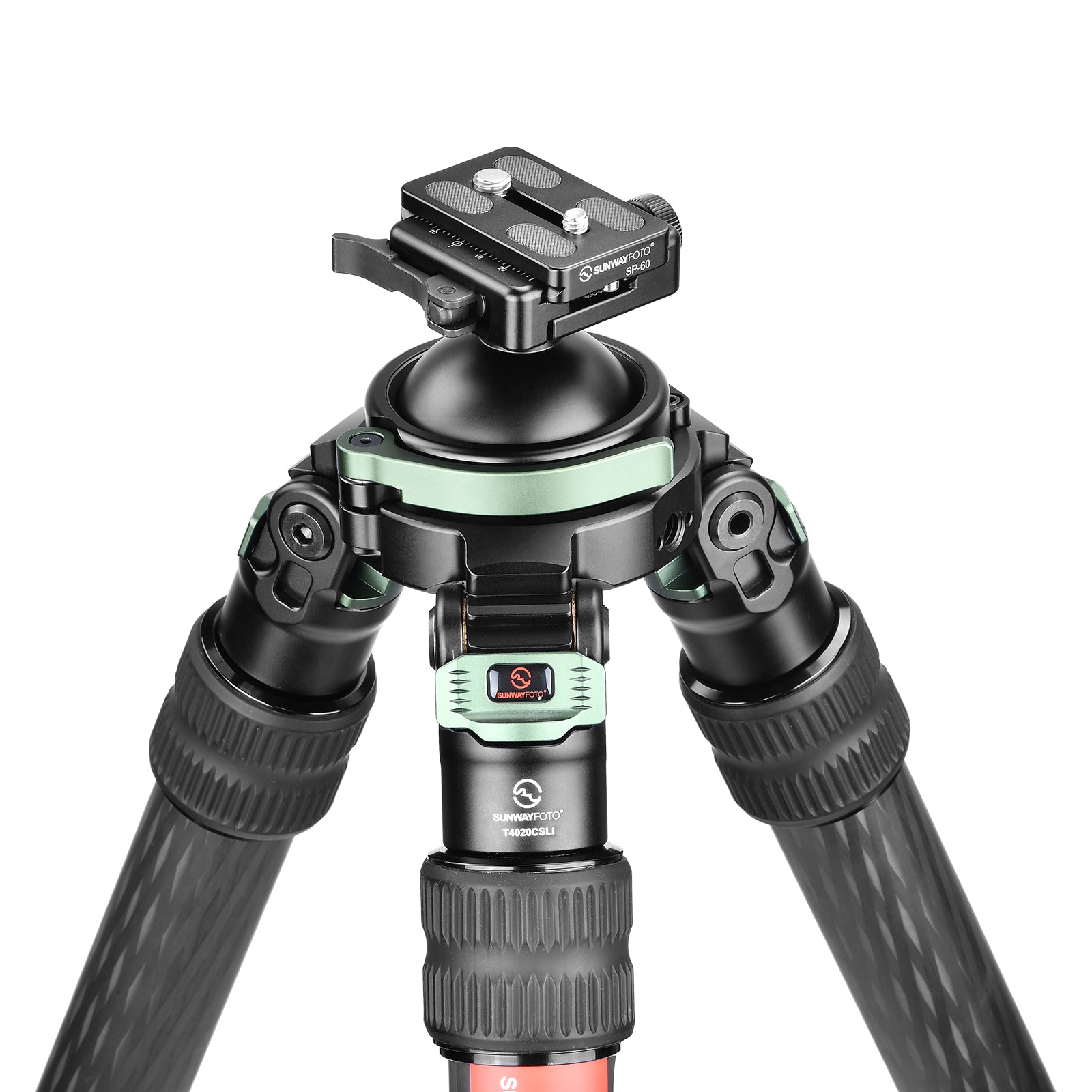

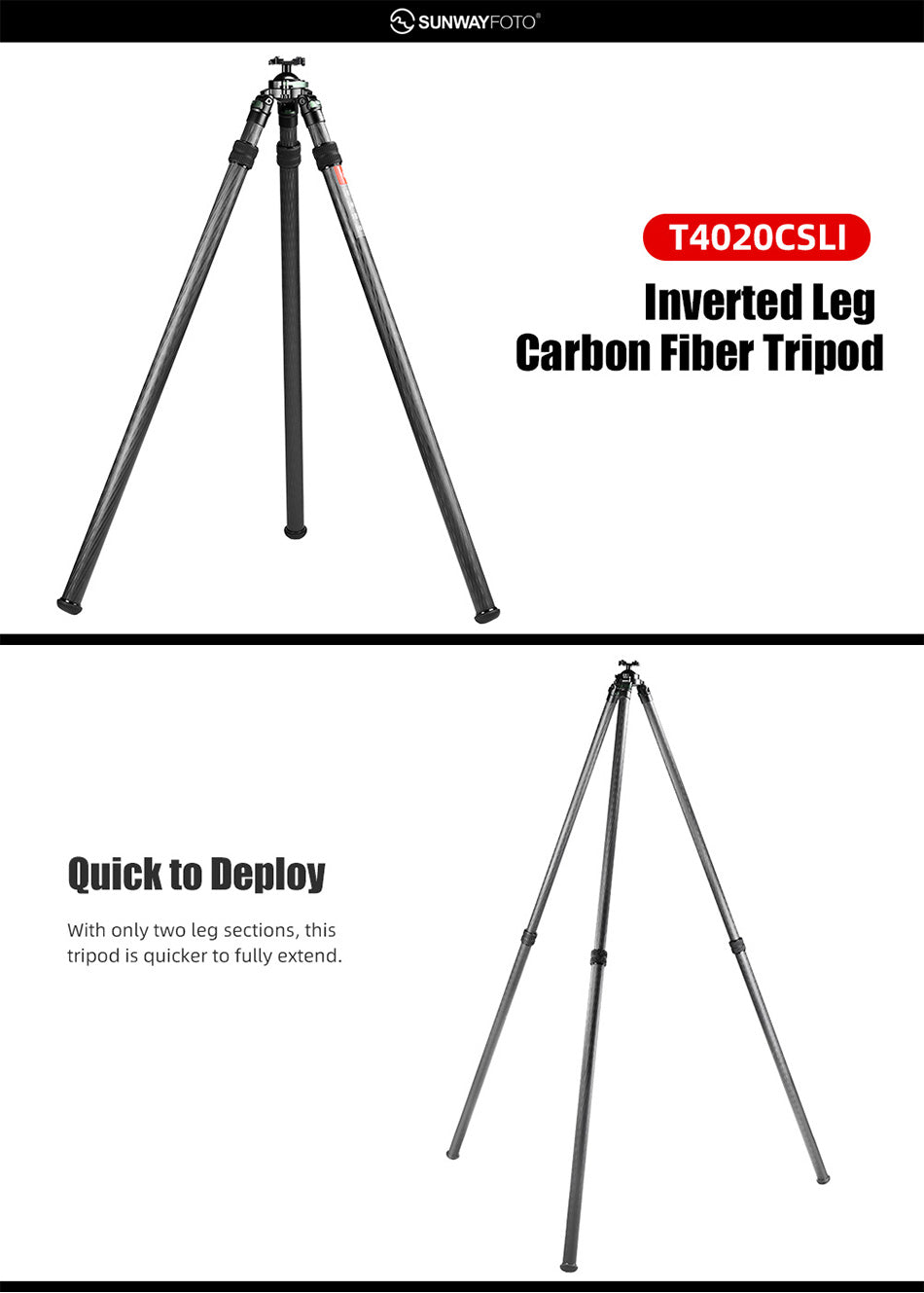

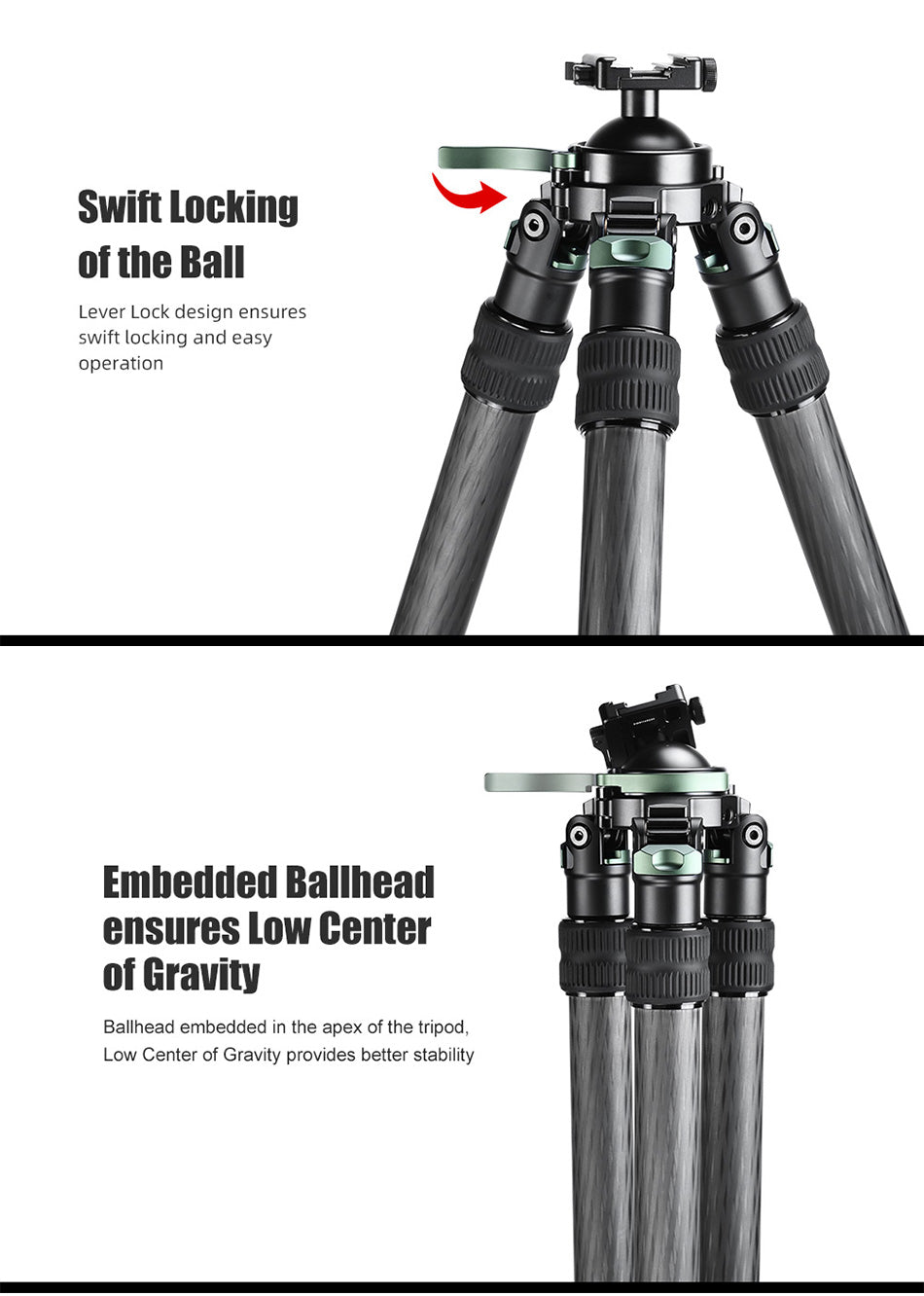

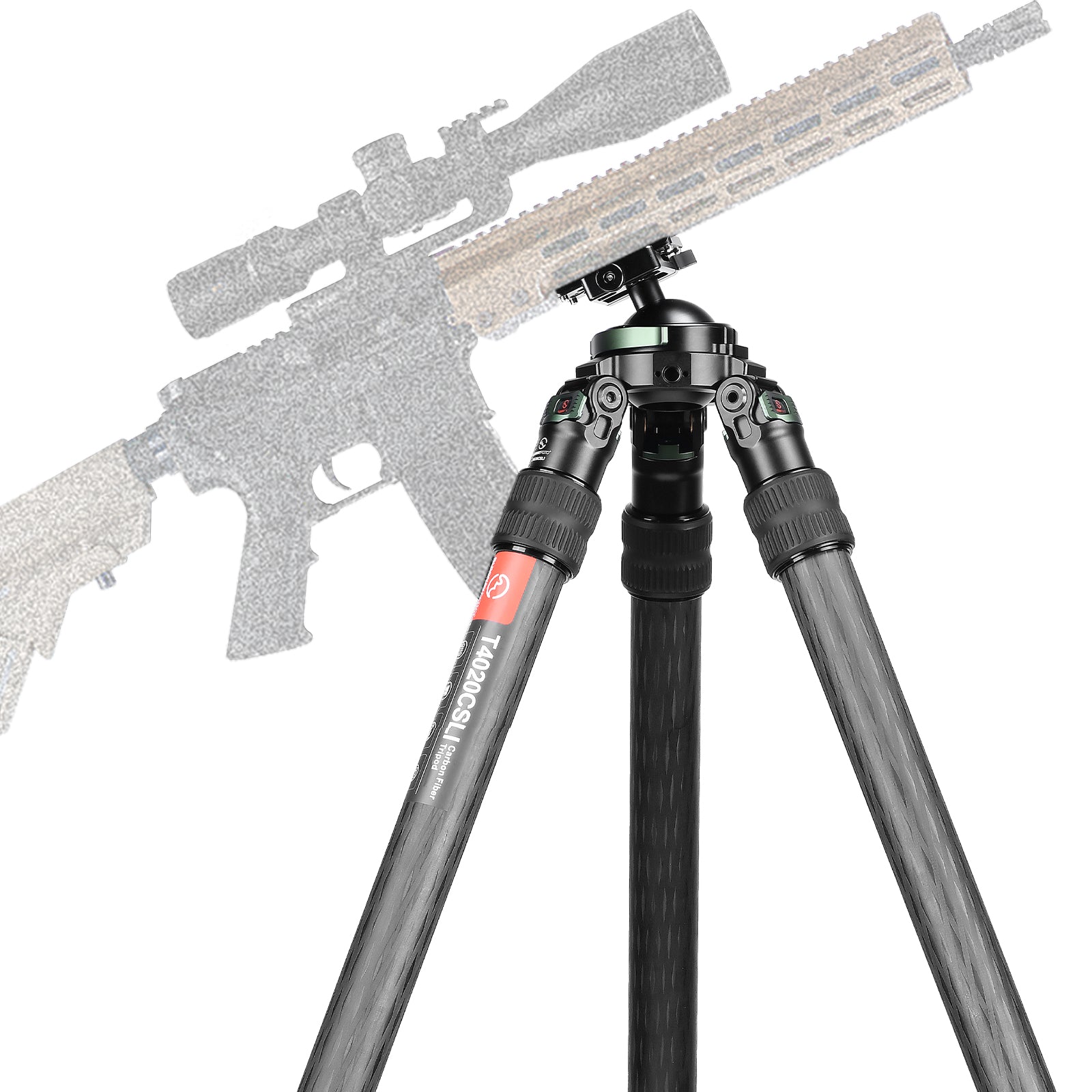

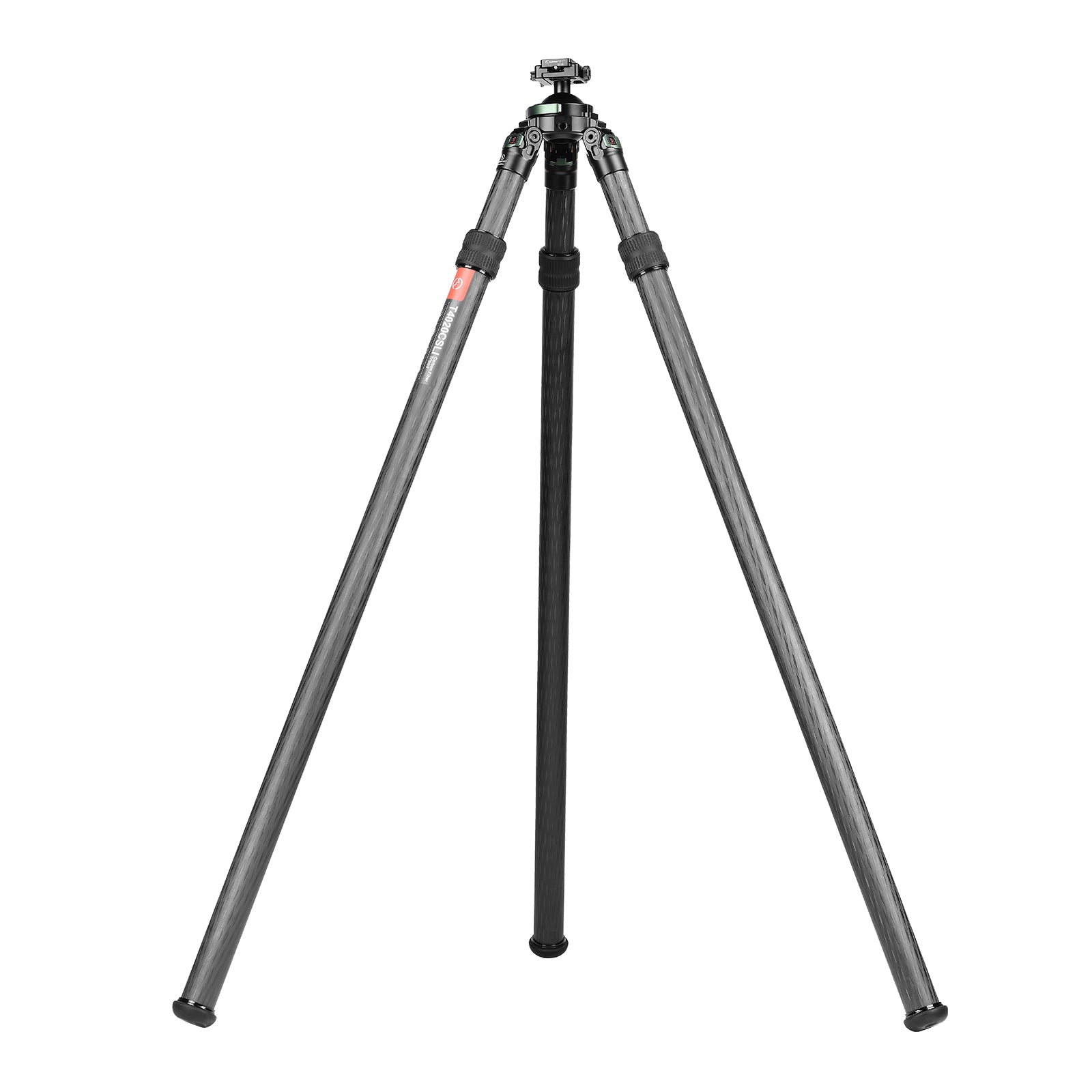

T4020CSLI is one integrated tripod ballhead kit. Featuring inverted tripod leg design whose bigger legs contact with ground providing stable support. Two leg sections of 36mm/40mm (diameter) ensure quick setup. Embedded ballhead provides a lower center of gravity hence better stability. There are combos with different accessories available for various applications.

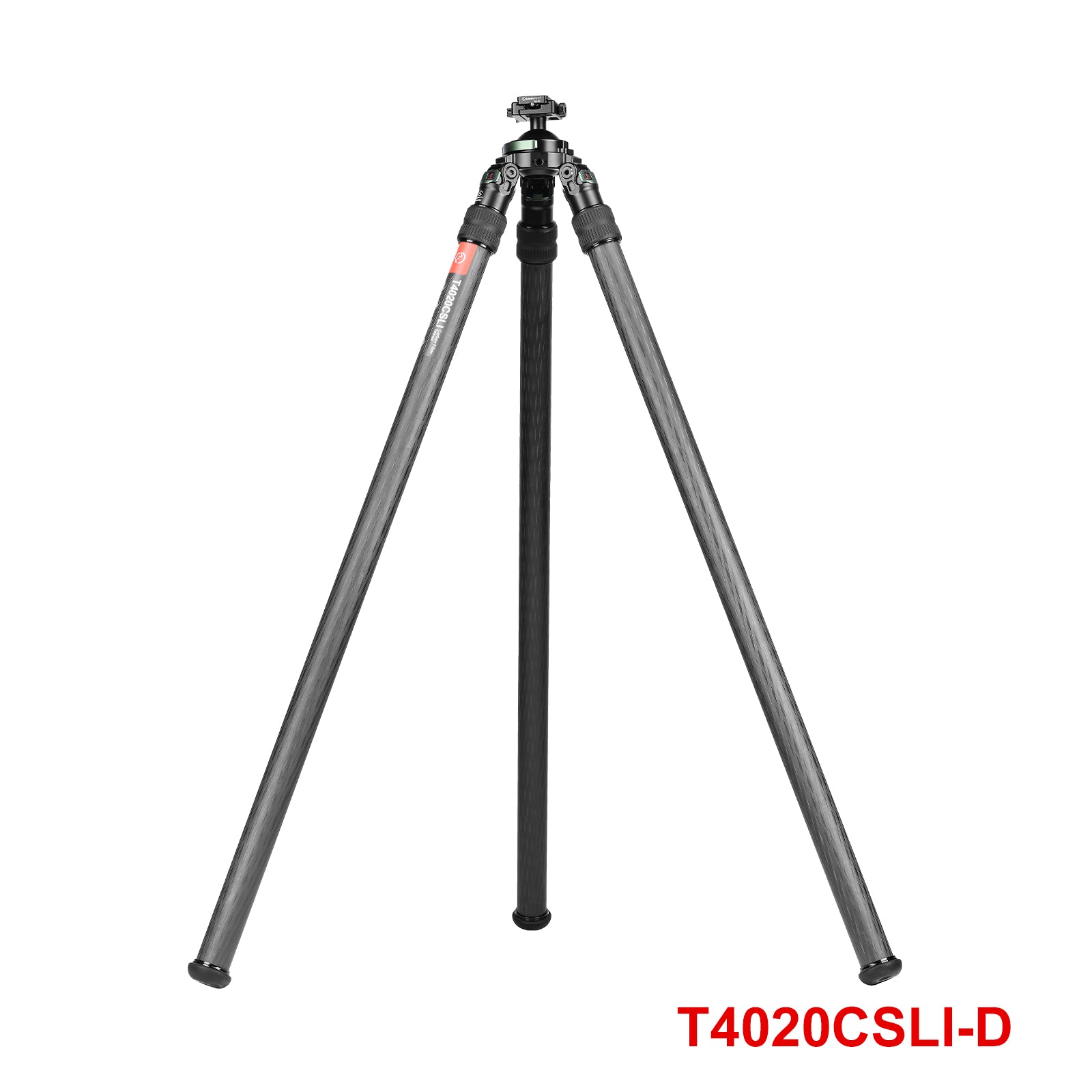

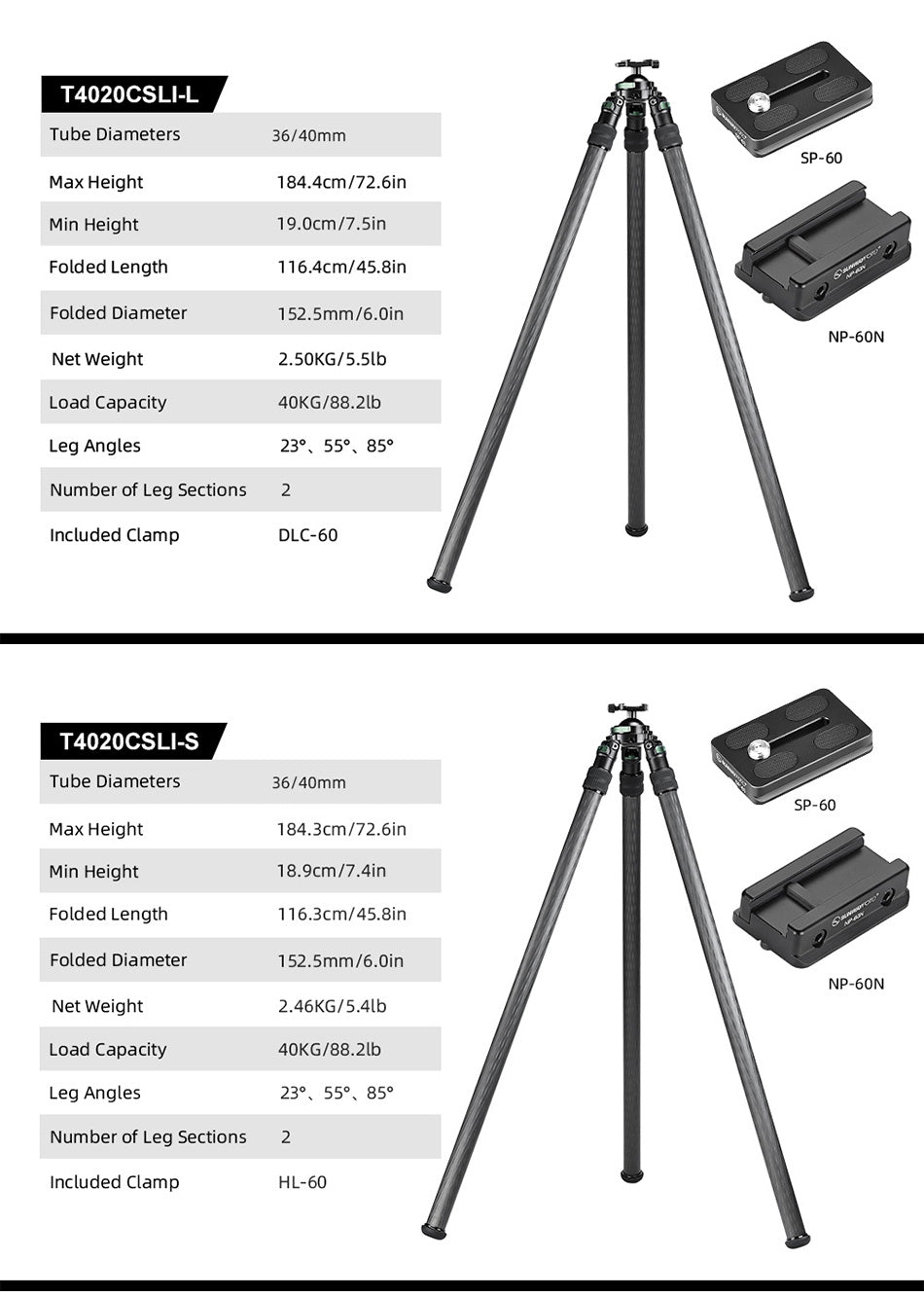

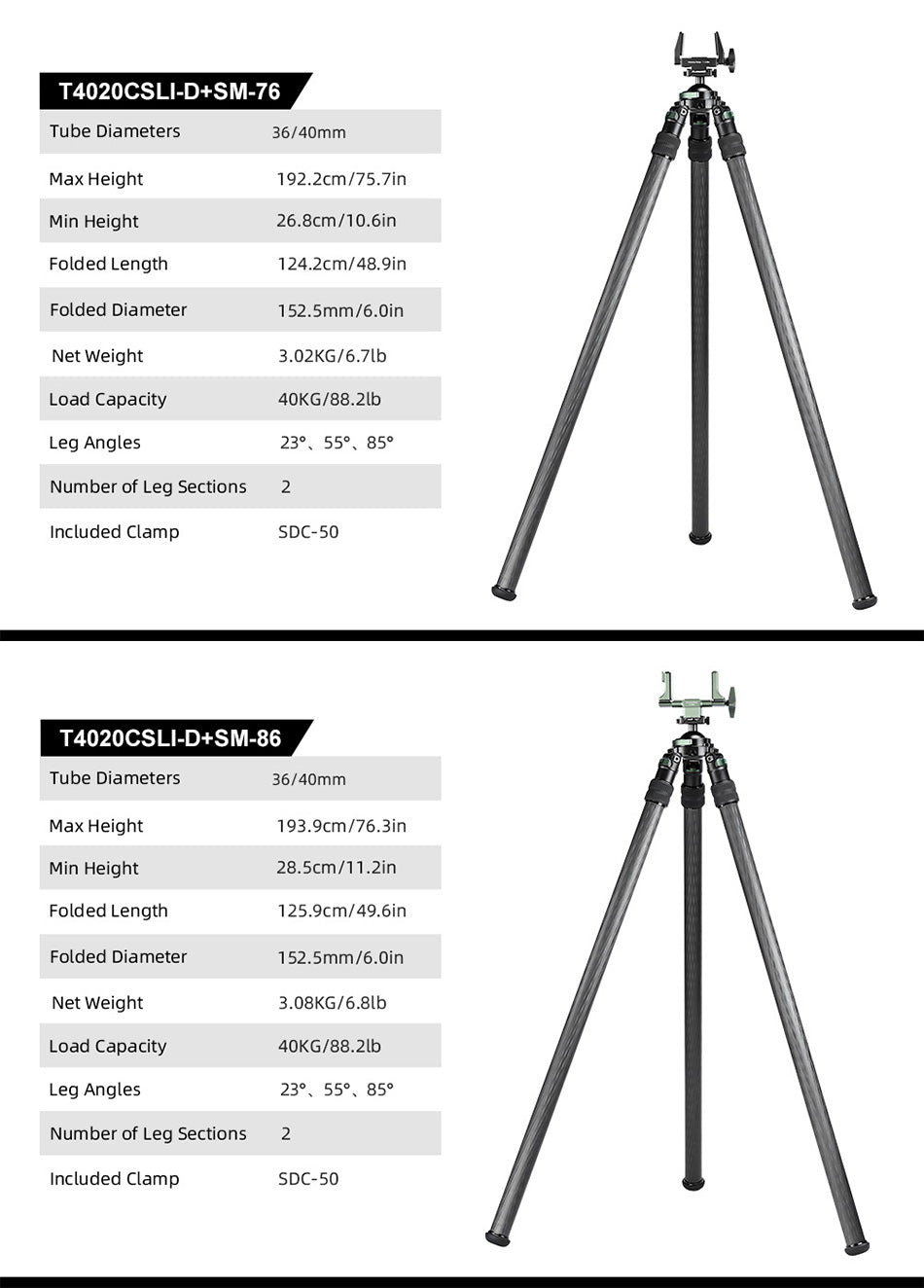

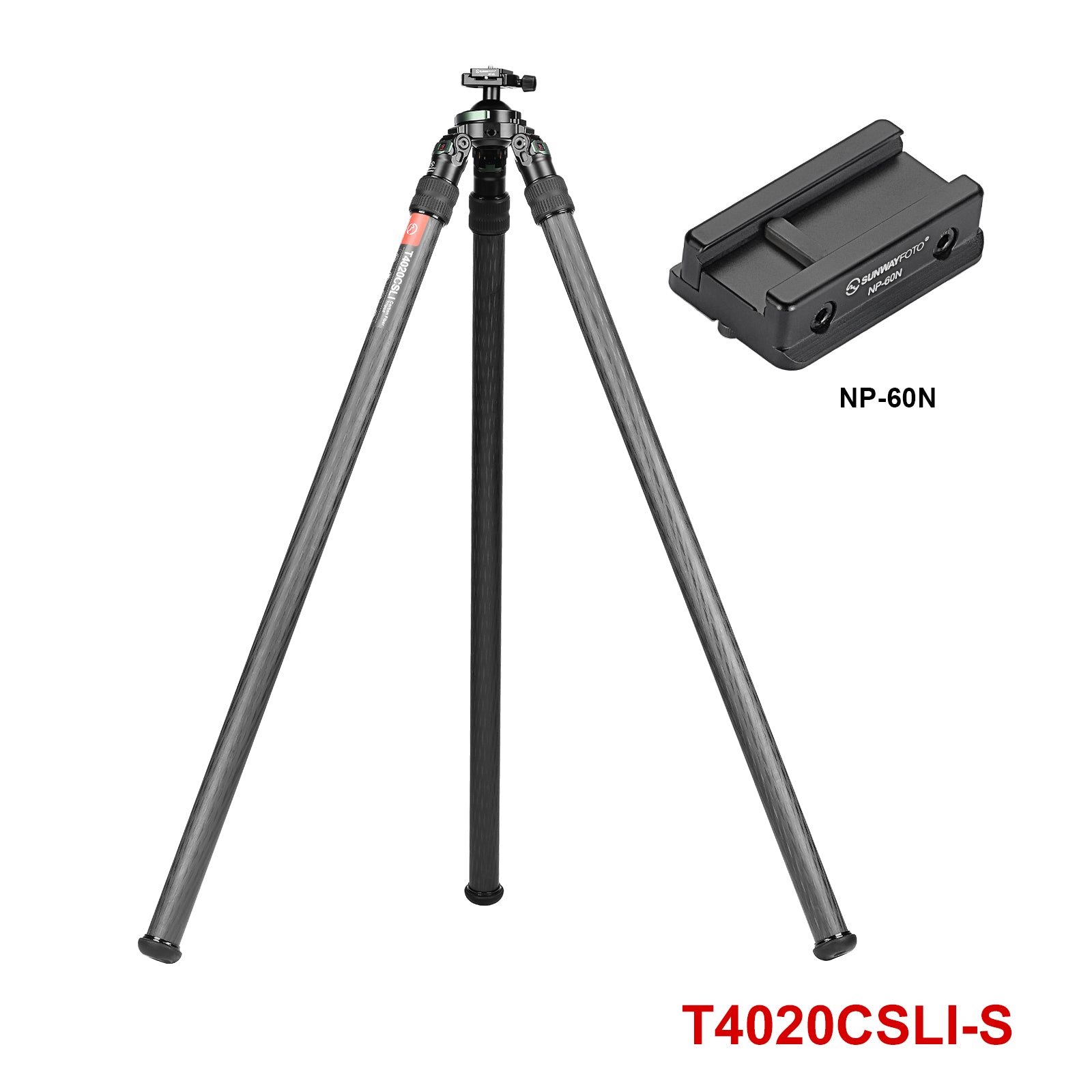

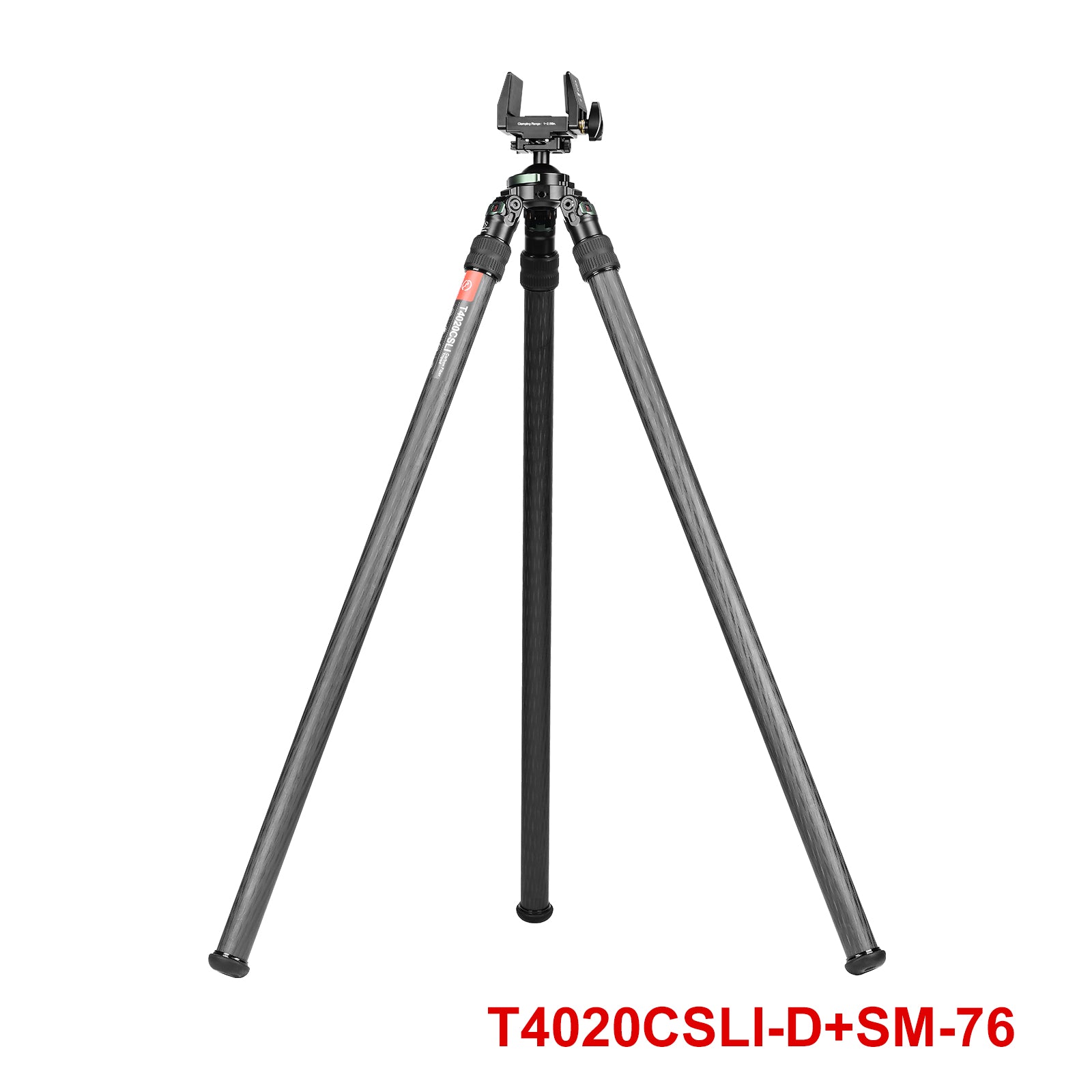

| T4020CSLI-D | T4020CSLI-L | T4020CSLI-S | T4020CSLI-D +SM-76 |

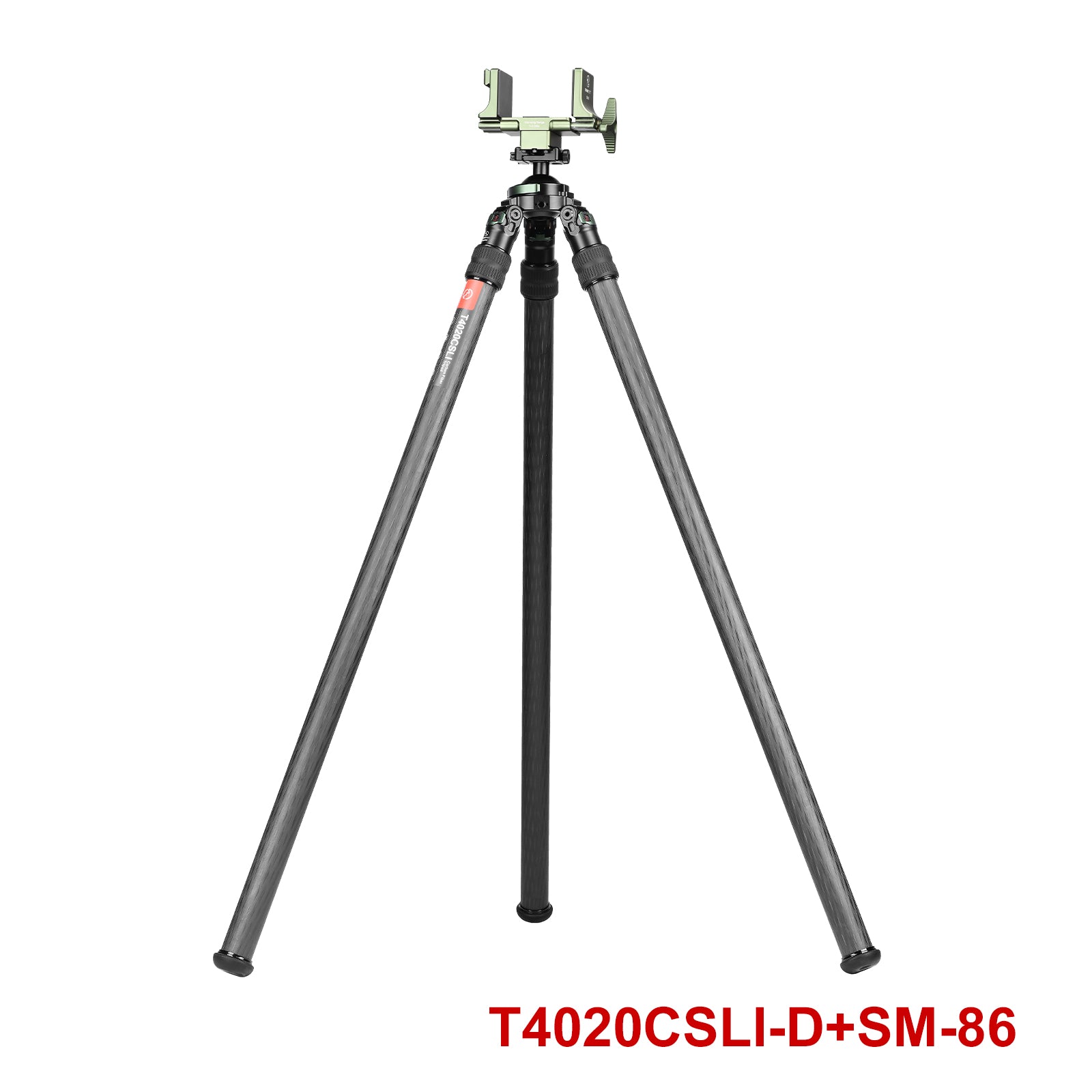

T4020CSLI-D +SM-86 |
|

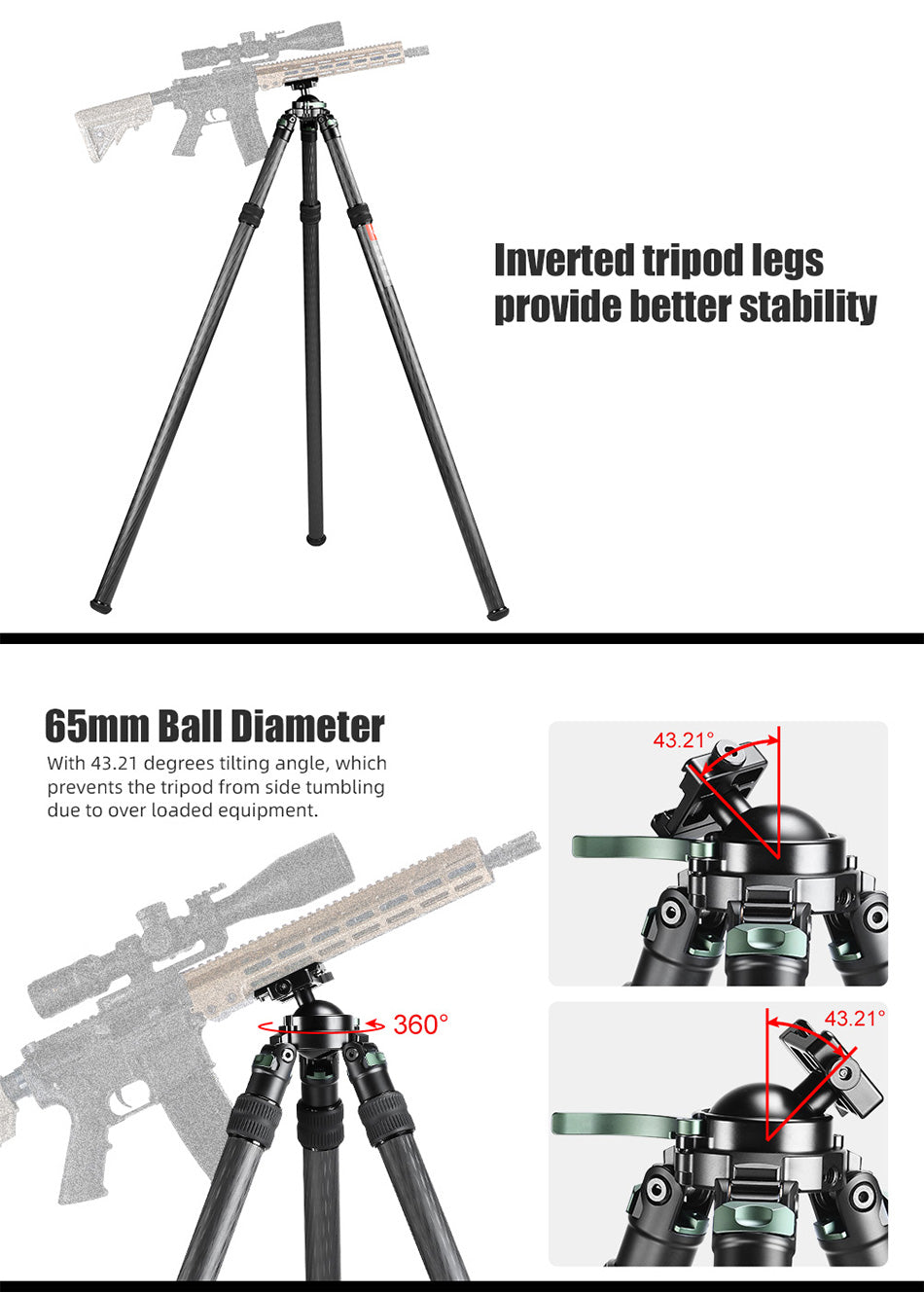

| Ball Diameter | 65mm | ||||
| Tube Diameters | 36、40mm | ||||
| Max Height | 184.5cm/ 72.6in | 184.4cm/72.6in | 184.3cm/72.6in | 192.2cm/ 75.7in | 193.9cm/ 76.3in |
| Min Height | 19.1cm/7.5in | 19.0cm/7.5in | 18.9cm/7.4in | 26.8cm/10.6in | 28.5cm/11.2in |

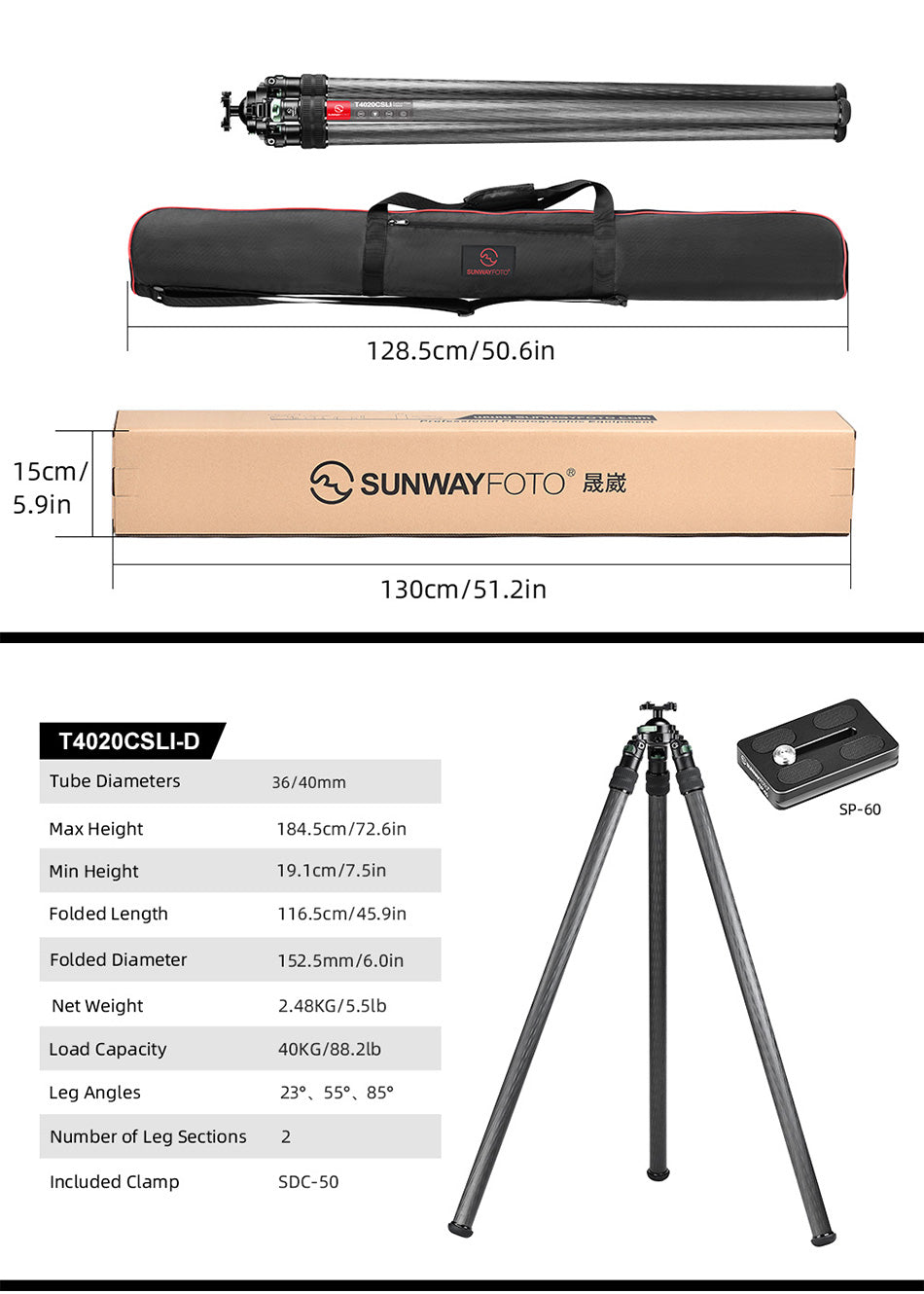

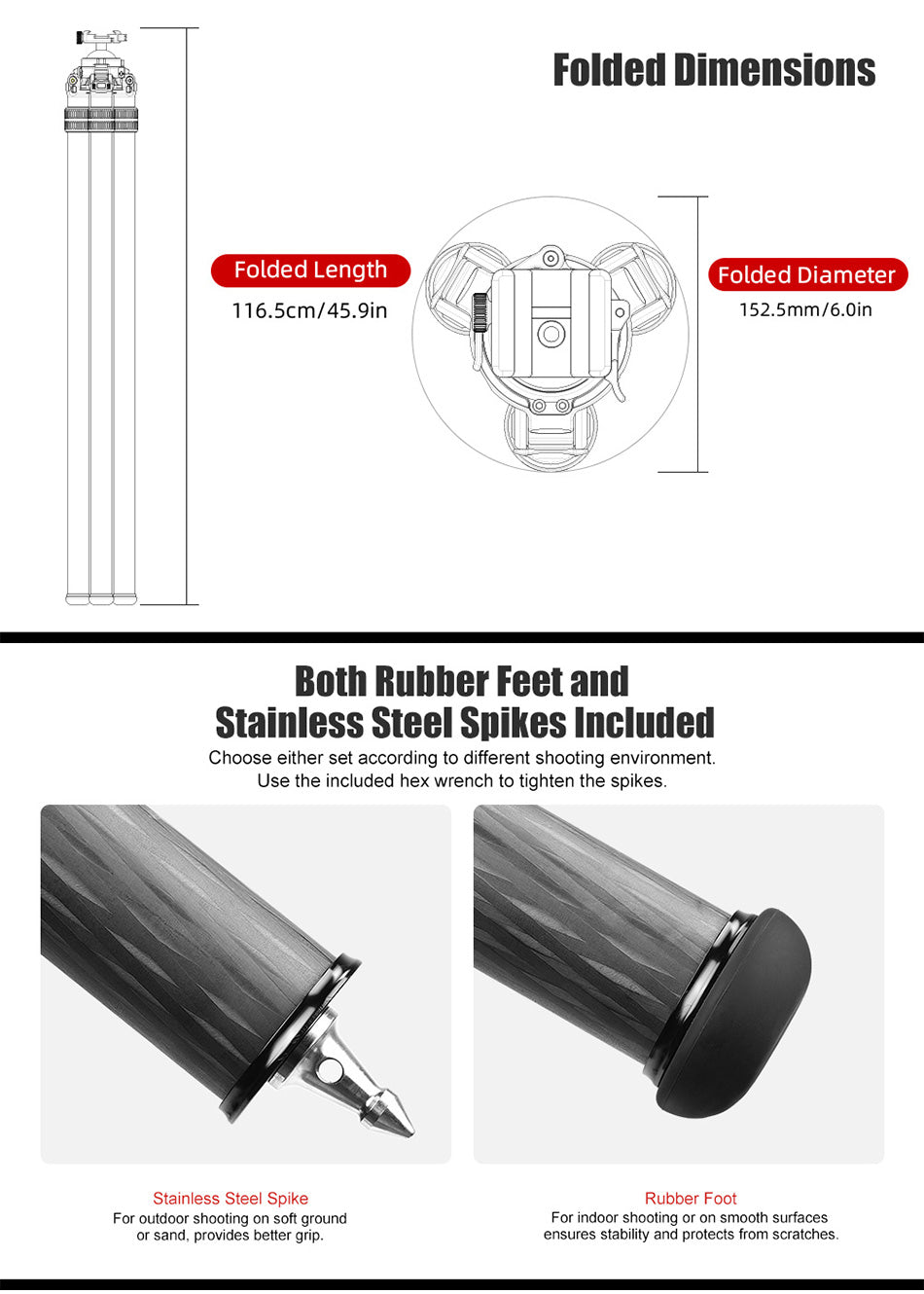

| Folded Length | 116.5cm/45.9in | 116.4cm/45.8in | 11 6.3cm/45.8in | 1 24.2cm/48.9in | 1 25.9cm/49.6in |
| Folded Diameter | 1 52. 5mm/6.0in | 1 52. 5mm/6.0in | 1 52.5mm/6.0in | 1 52.5mm/6.0in | 1 52. 5mm/6.0in |
| Net Weight | 2.48KG/5.5lb | 2.50KG/5.5lb | 2.50KG/5.5lb | 3.02KG/6.7lb | 3.08KG/6.8lb |
| Load Capacity | 40KG/88.2lb | ||||

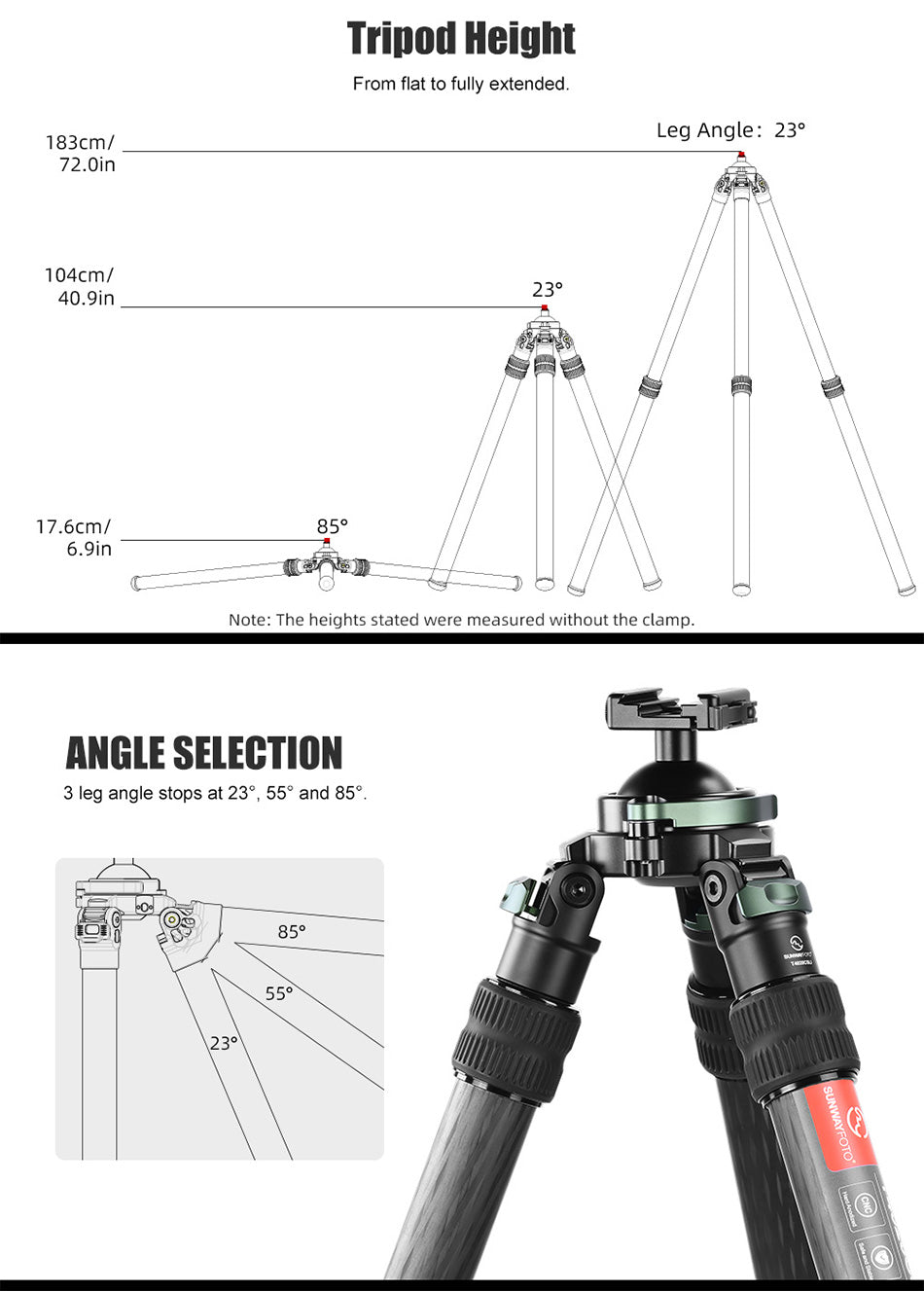

| Leg Angles | 23°,55°,85° | ||||
| Leg Sections | 2 | ||||

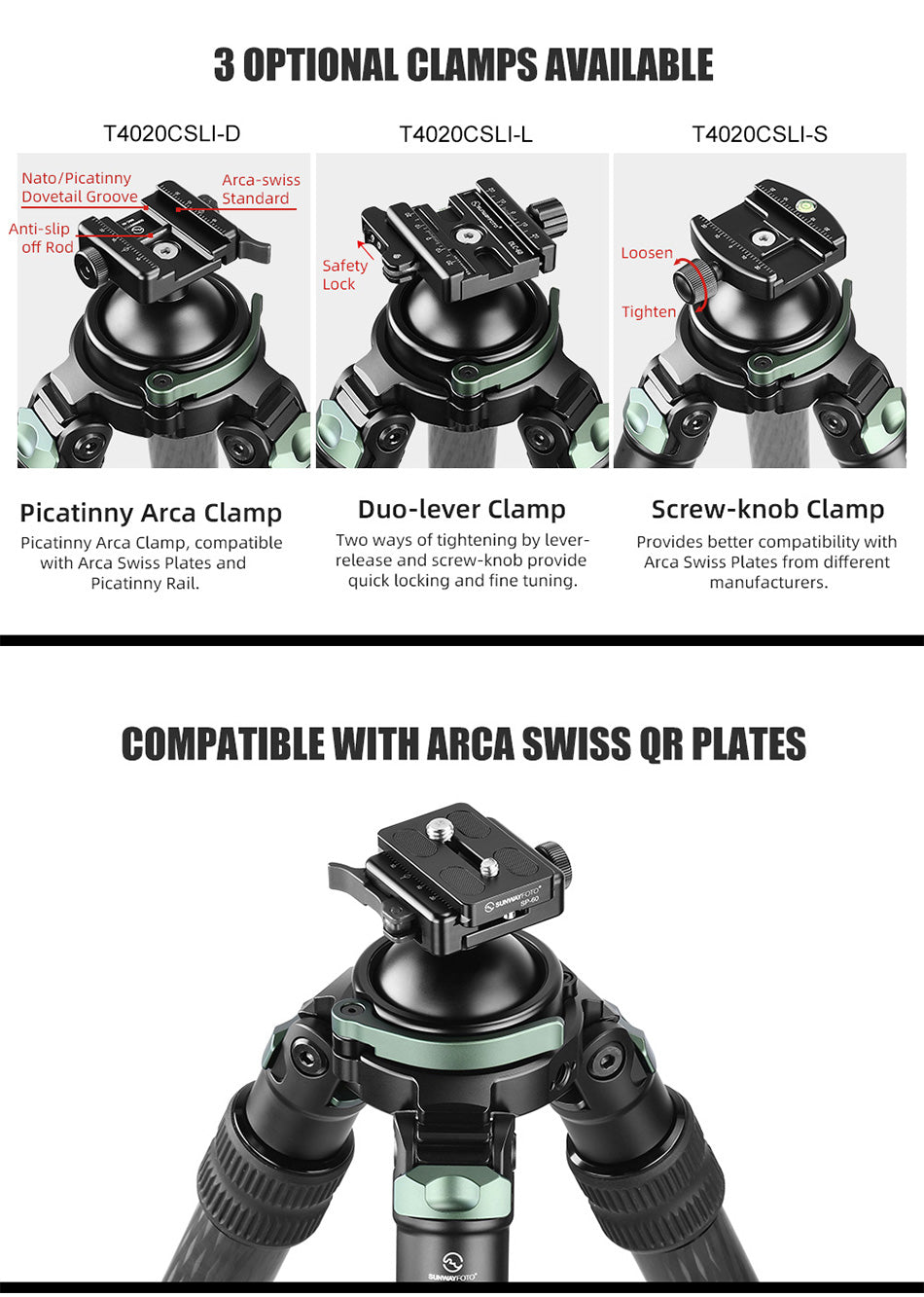

| Clamp |
SDC-50 Lever Clamp |
DLC-60 Duo-Lever Clamp |
HL-60 Screw-knob Clamp |
SDC-50 Lever Clamp |
SDC-50 Lever Clamp |
| Saddle Mount | / | / | / | SM-76 | SM-86 |

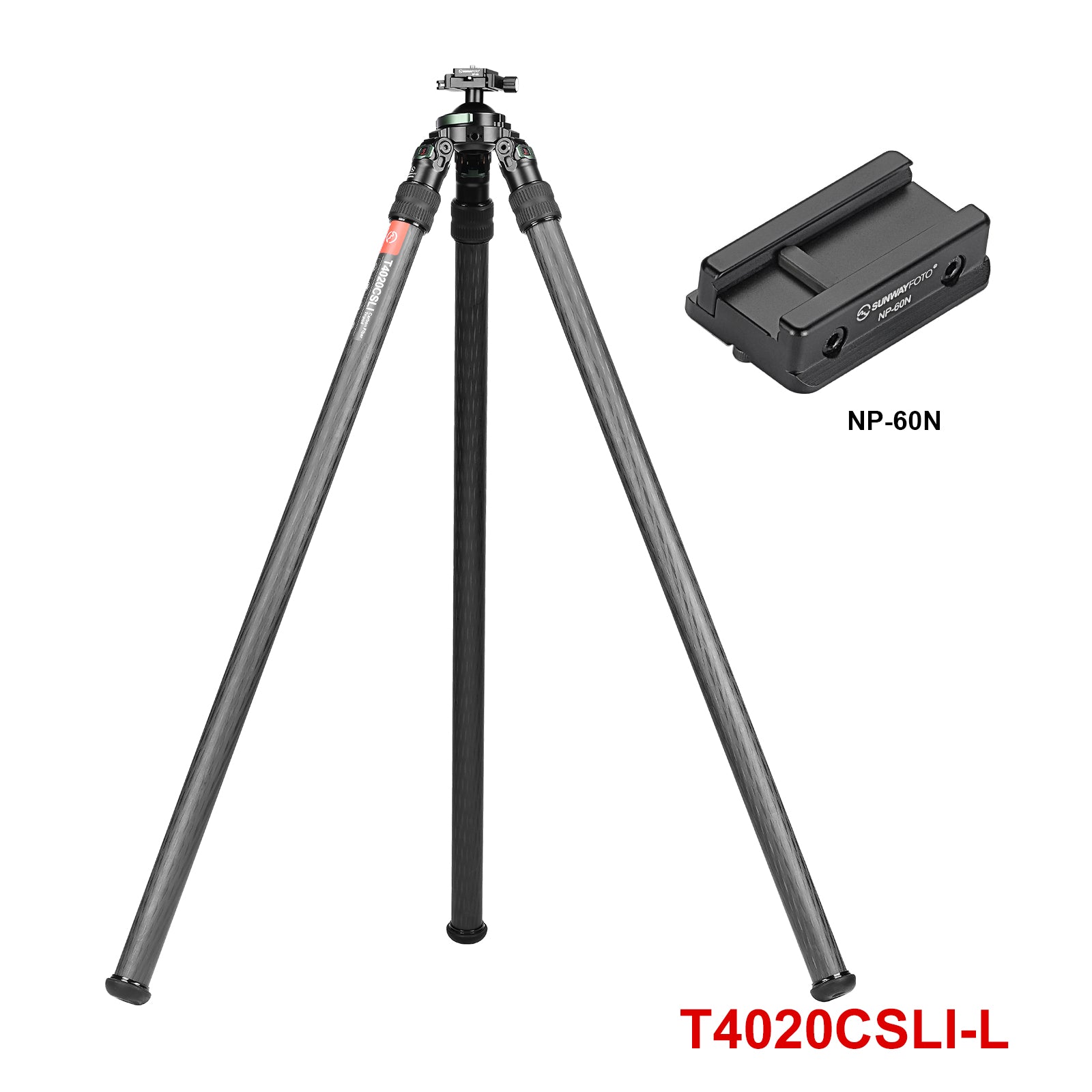

| Accessories | SP-60 | SP-60,NP-60N | SP-60,NP-60N | SP-60 | SP-60 |
