Tablet & device mount.

Tripod dedicated tablet bracket PC-03
Model:  PC-03
Folded Length:129mm
Width:38mm
Height:36mm
Mounting Screw:UNC 1/4"-20
Clampable Range:103~311mm
Net Weight:163g
Base Dovetail:Arca Standard

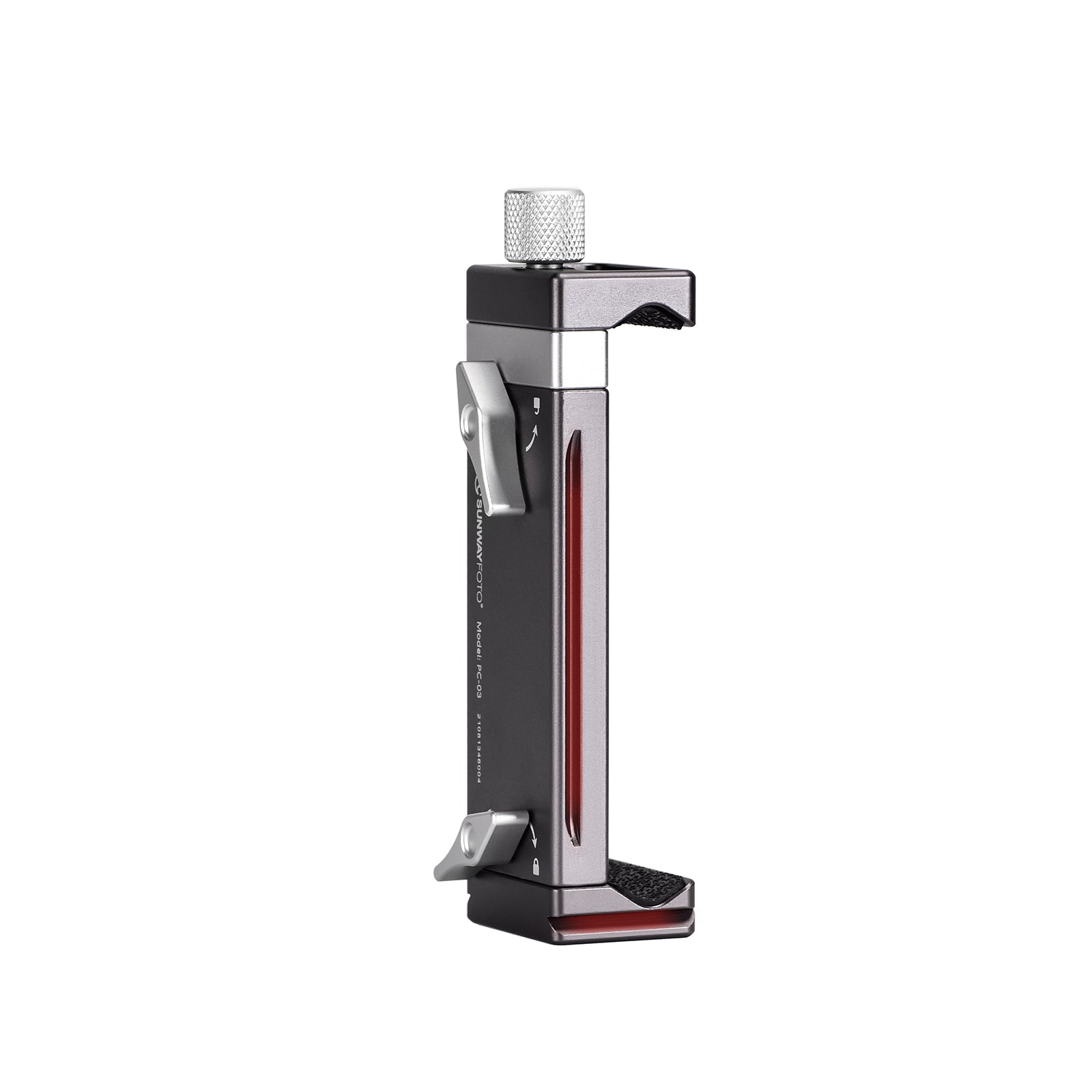

✪PC-03 is one tripod dedicated tablet bracket used to mount your tablet/ipad, smart phones or laptop on tripod.
✪Compact folded size with extendable design, it’s compatible with mobile phone, tablet and laptop.
✪Hard-anodized finish ensures it’s durable and resistant to corrosion and abrasion.

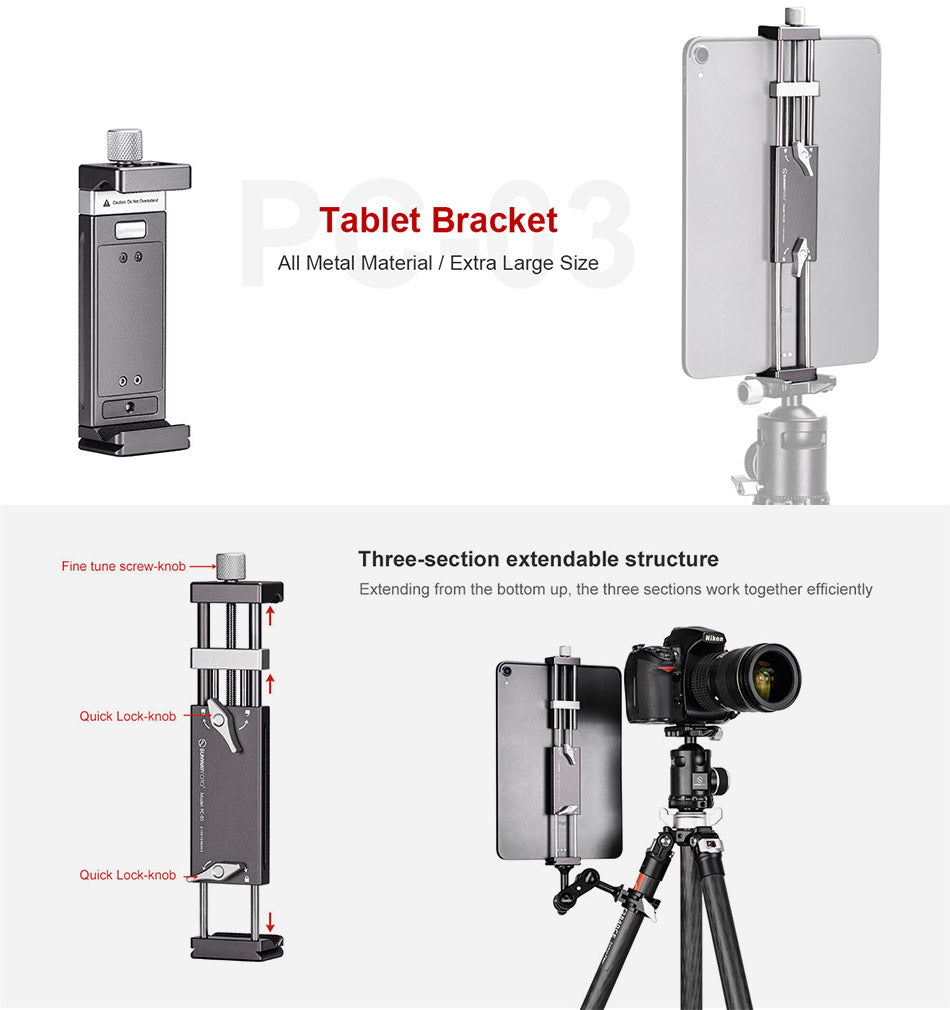

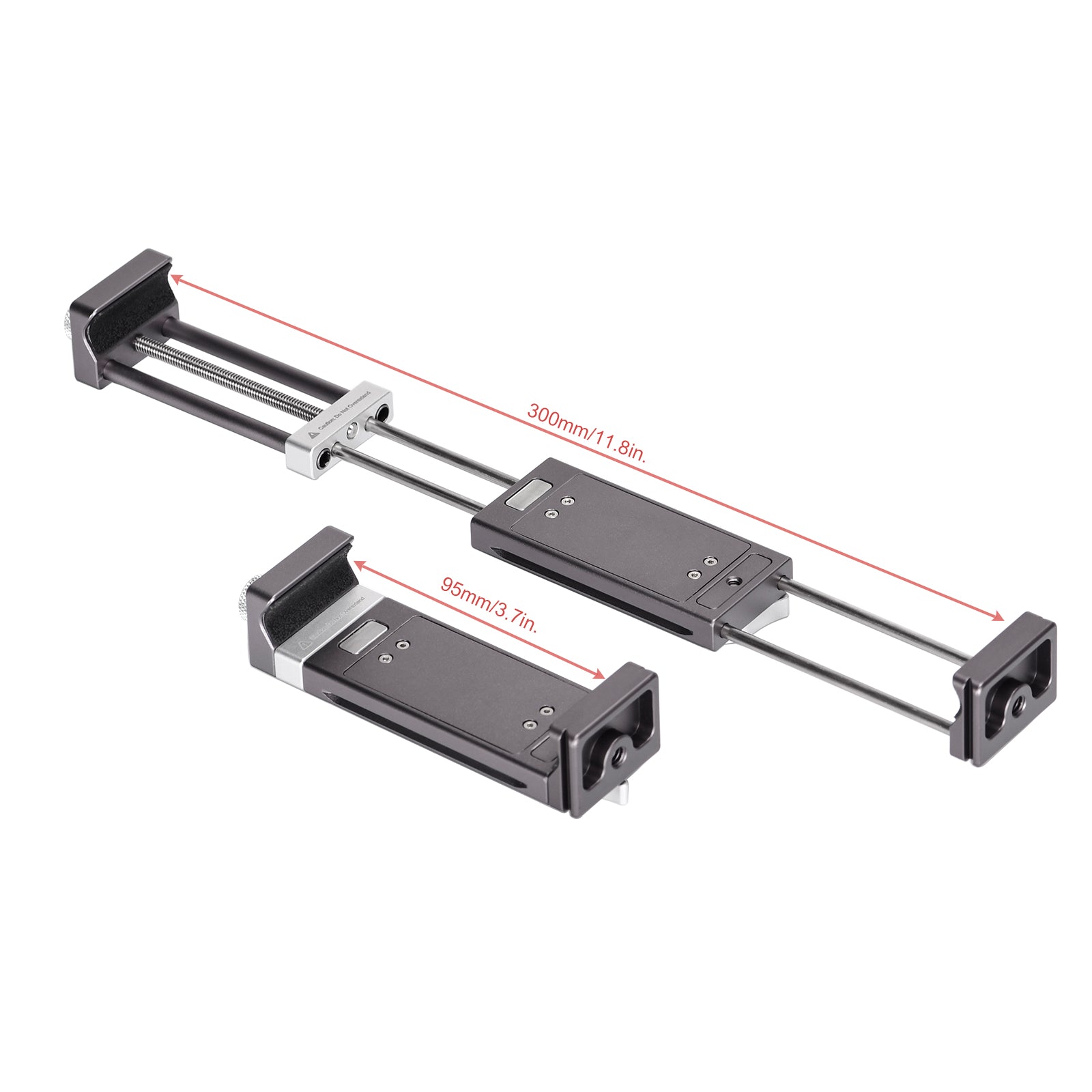

✪Three-section extendable structure, simply twist the Quick Lock-knob to extend the mid and lower section for quick insert and the top screw-knob is used for fine tune. This design ensures a quick installation as well as avoiding damage to the PAD due to clamping force. Extend from the bottom up, the three sections work together efficiently.

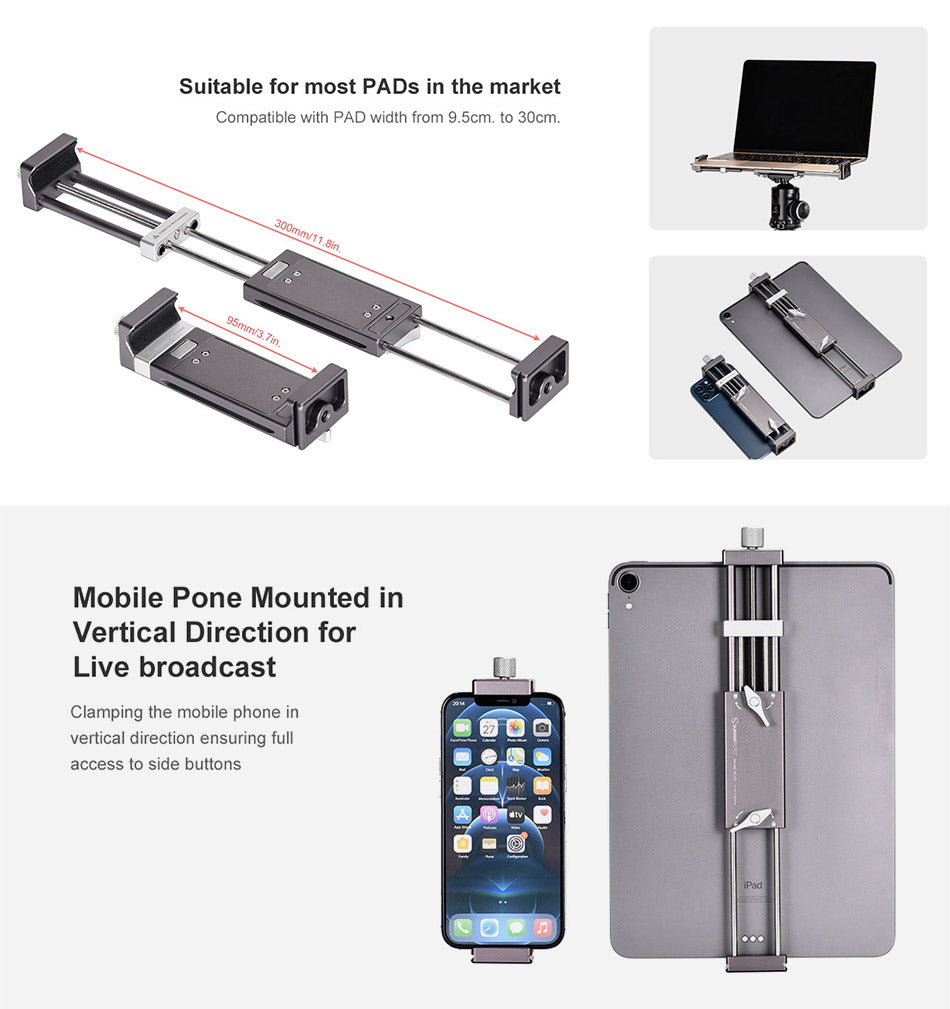

✪Applicable to most PADs in the market, compatible with PAD width from 4.06inch(10.3cm) to 12.2inch(31cm), as well as clamping smart phone in vertical direction allowing access to side buttons and work well for clamping laptop.

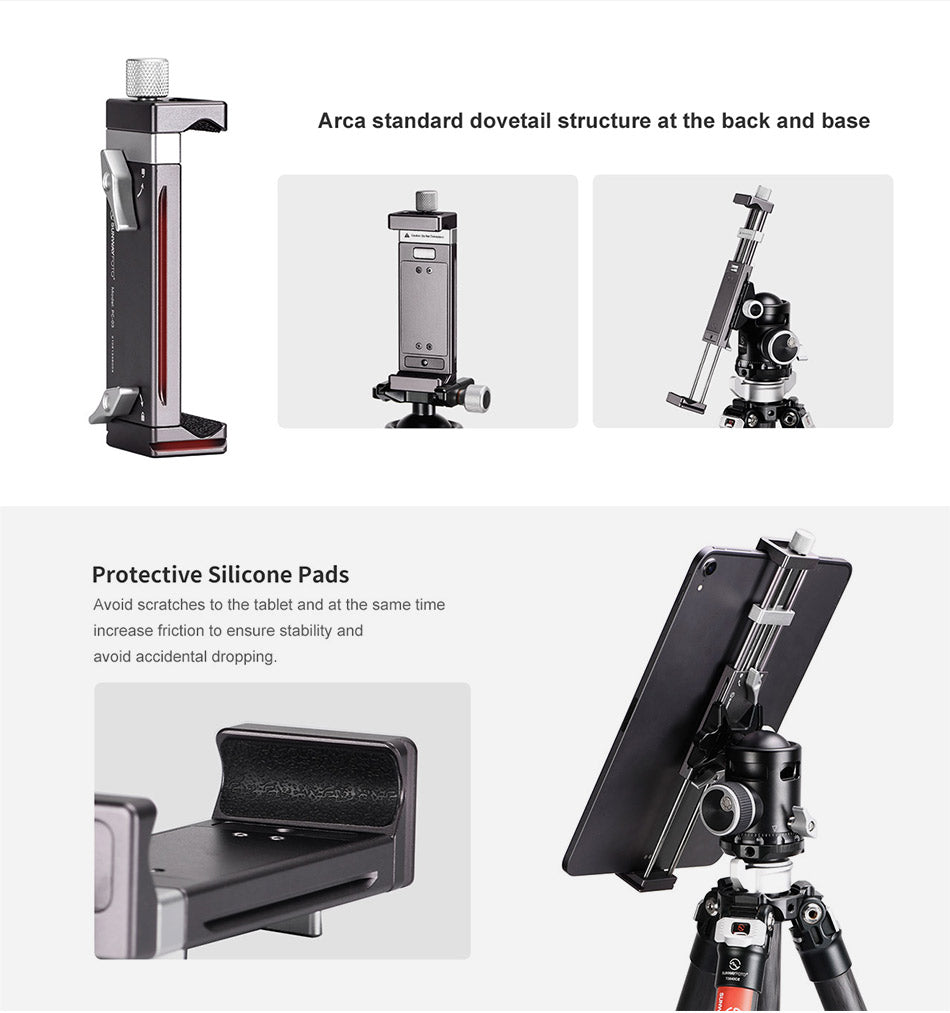

✪Protective silicone pads on both contact areas to avoid scratches to the tablet and at the same time increase friction to ensure stability and avoid accidental dropping.

✪Arca standard dovetail structure at the back and base, the PC-03 is compatible with tripod ballhead for multi-angle adjustment. 1/4” thread socket at the base so it can be mounted on other tripods such as Manfrotto’s which is not Arca standard.

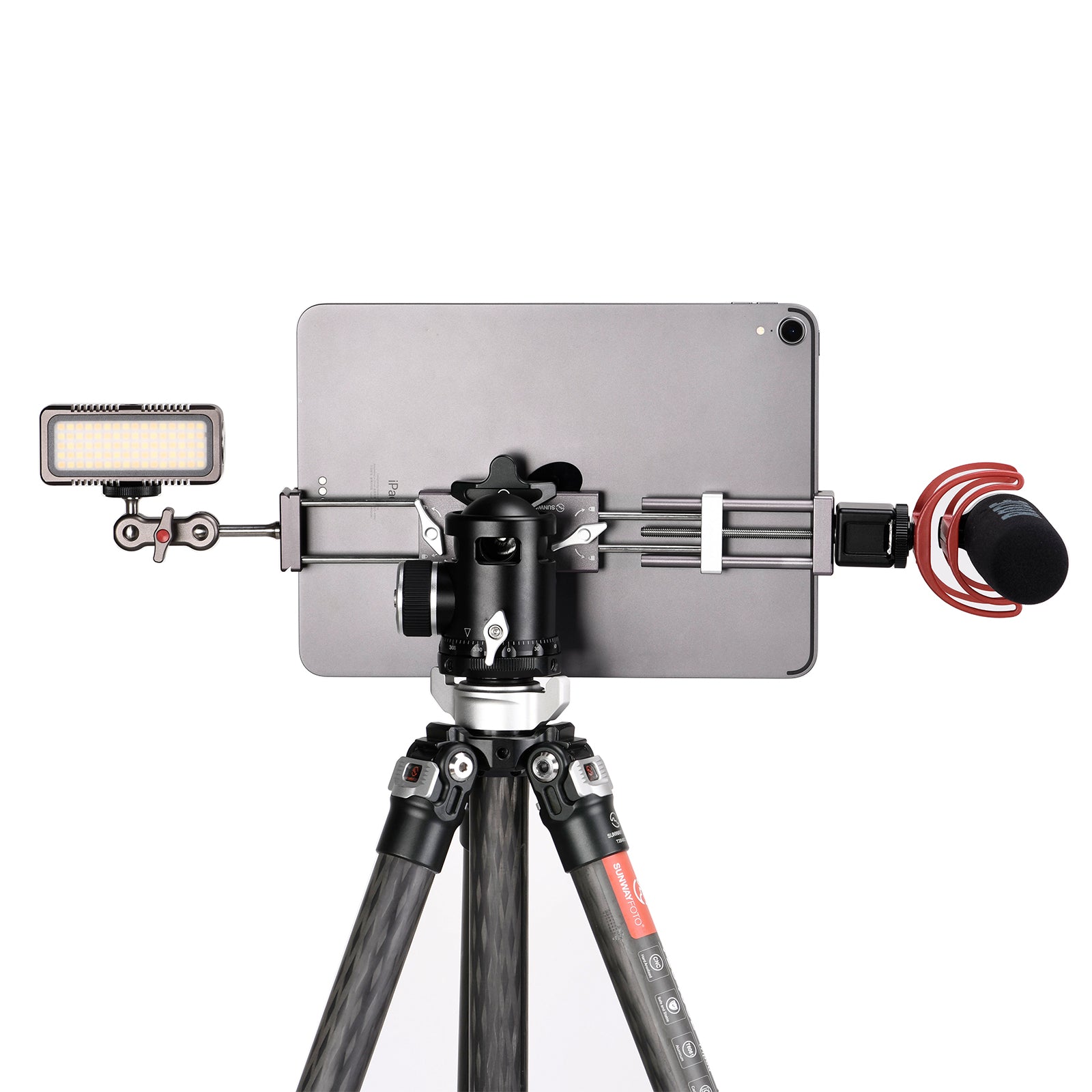

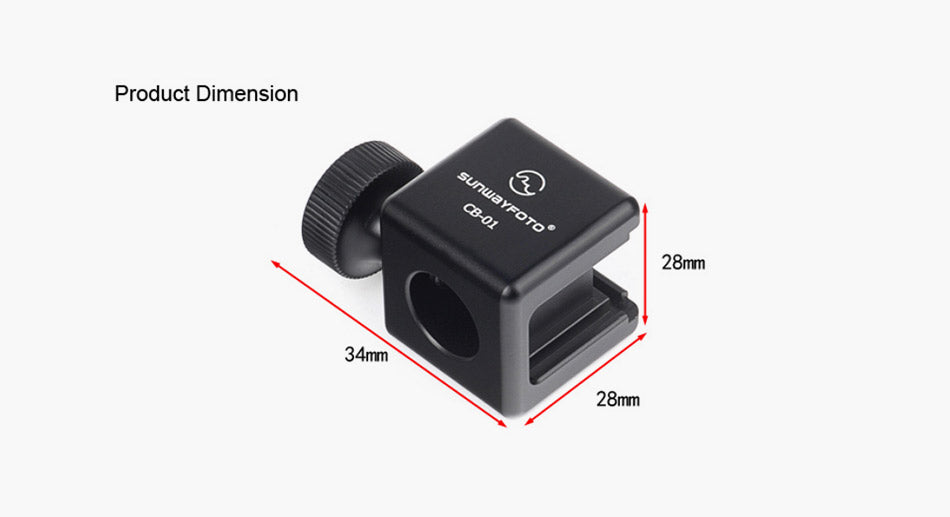

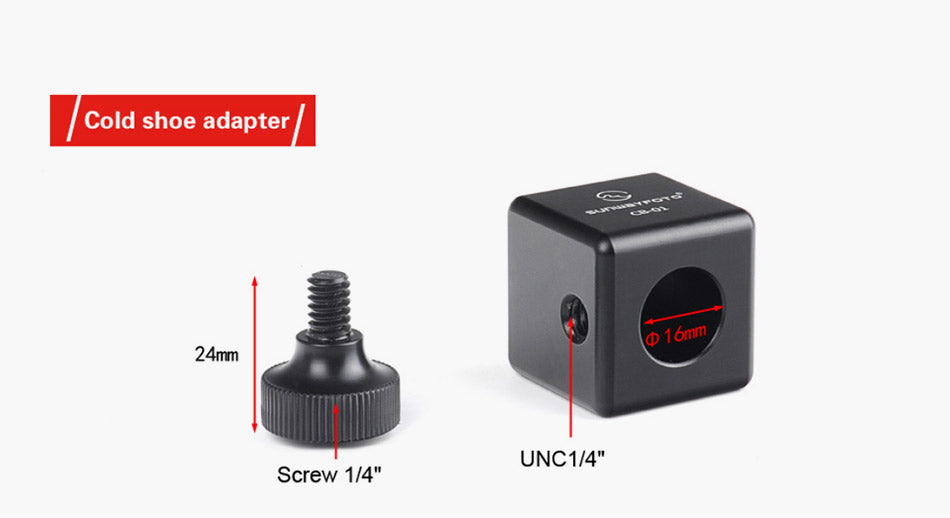

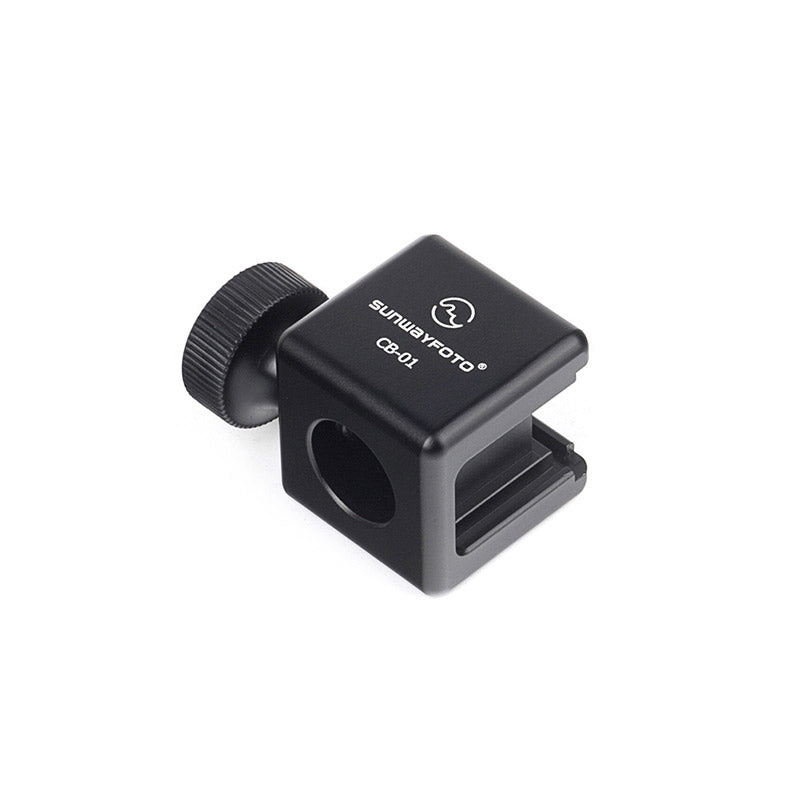

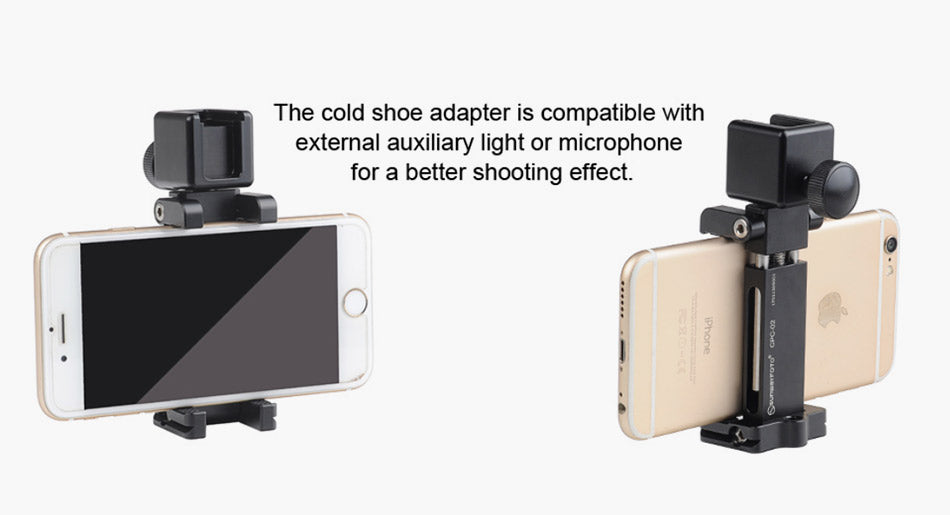

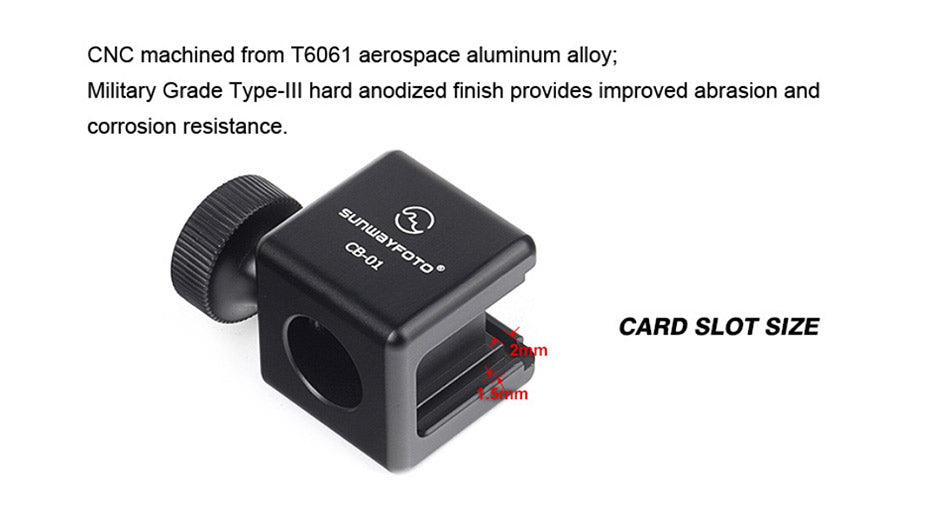

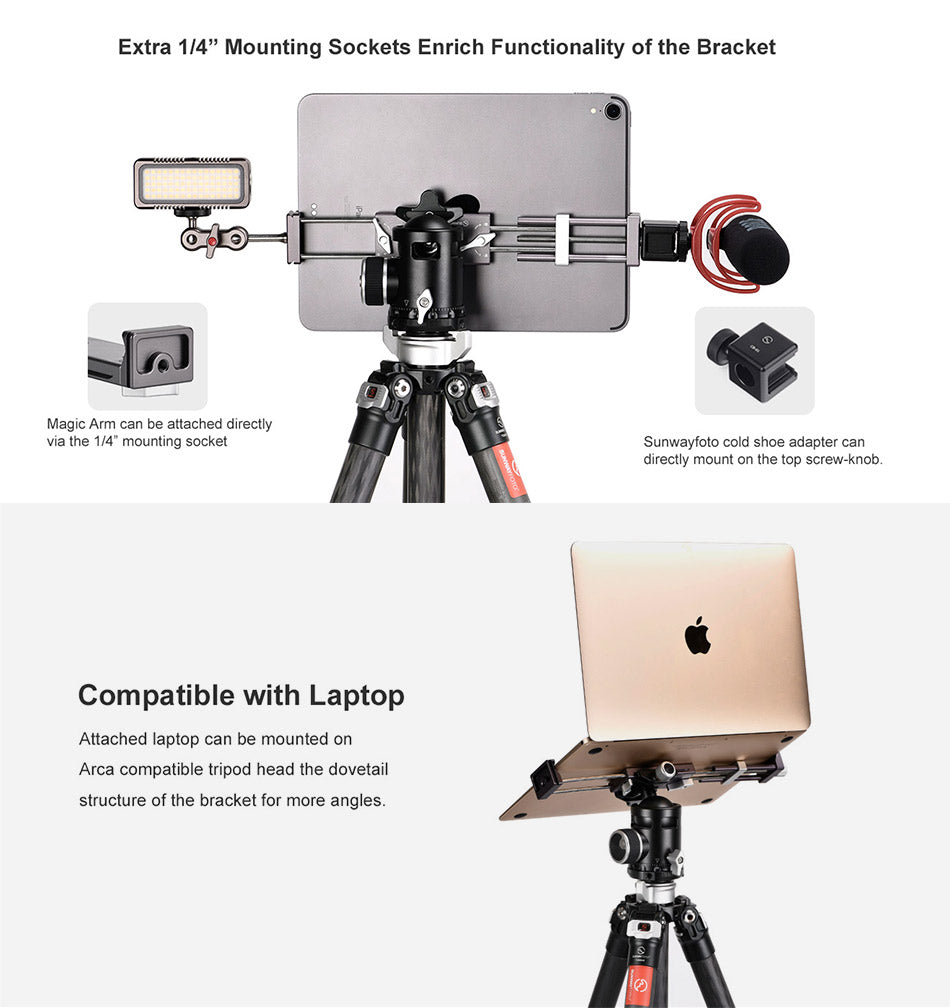

✪cold shoe adapter can directly mount on the top screw-knob to go with microphone or video light. The base 1/4” thread socket provides connection to other equipment enriching the bracket functionality.

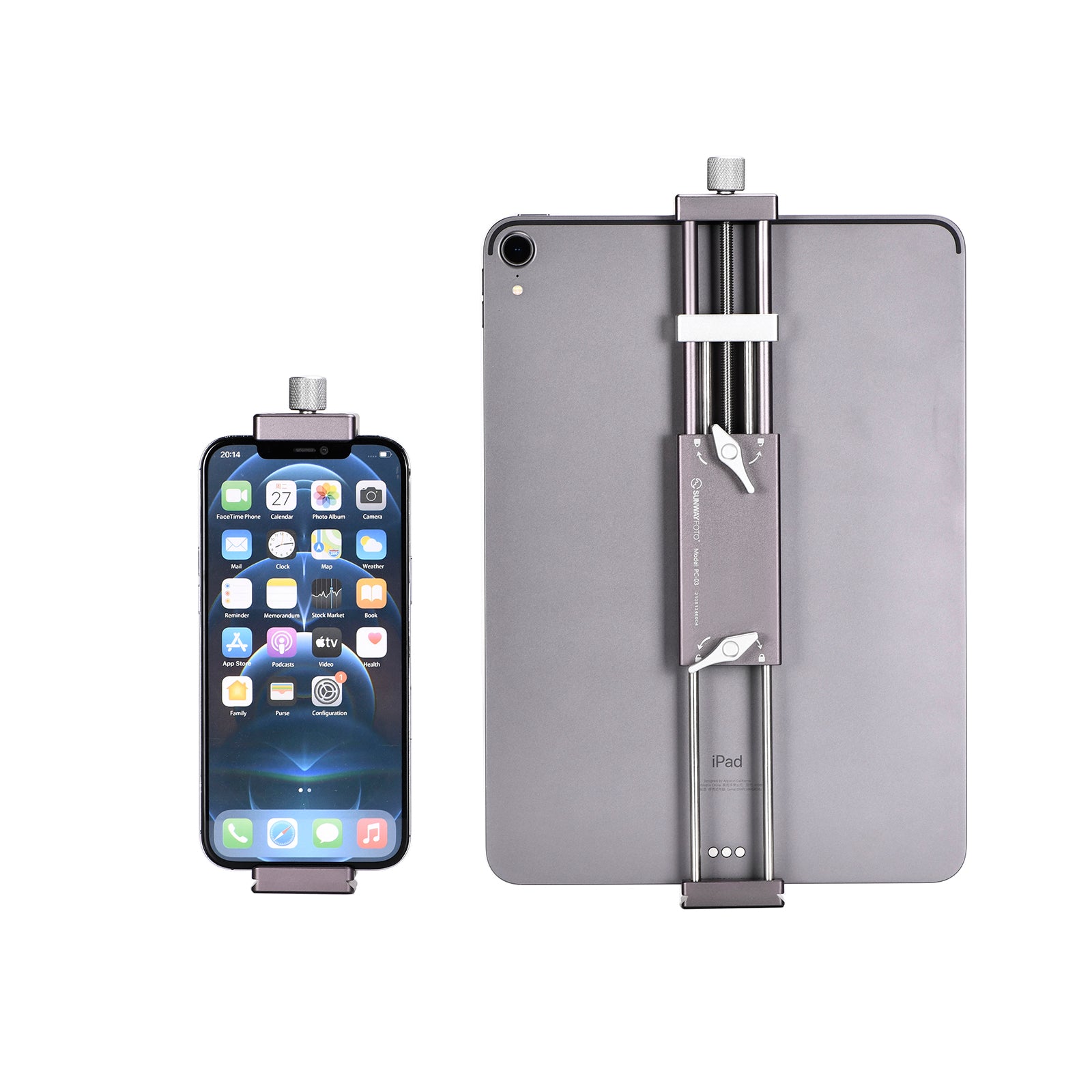

✪Clamping mobile phone in vertical direction to allow normal use of the side buttons which is a most ideal way for video or live broadcasting.Ultra-large clamping range ensures it’s compatible with most PADs in the market either horizontally or vertically.

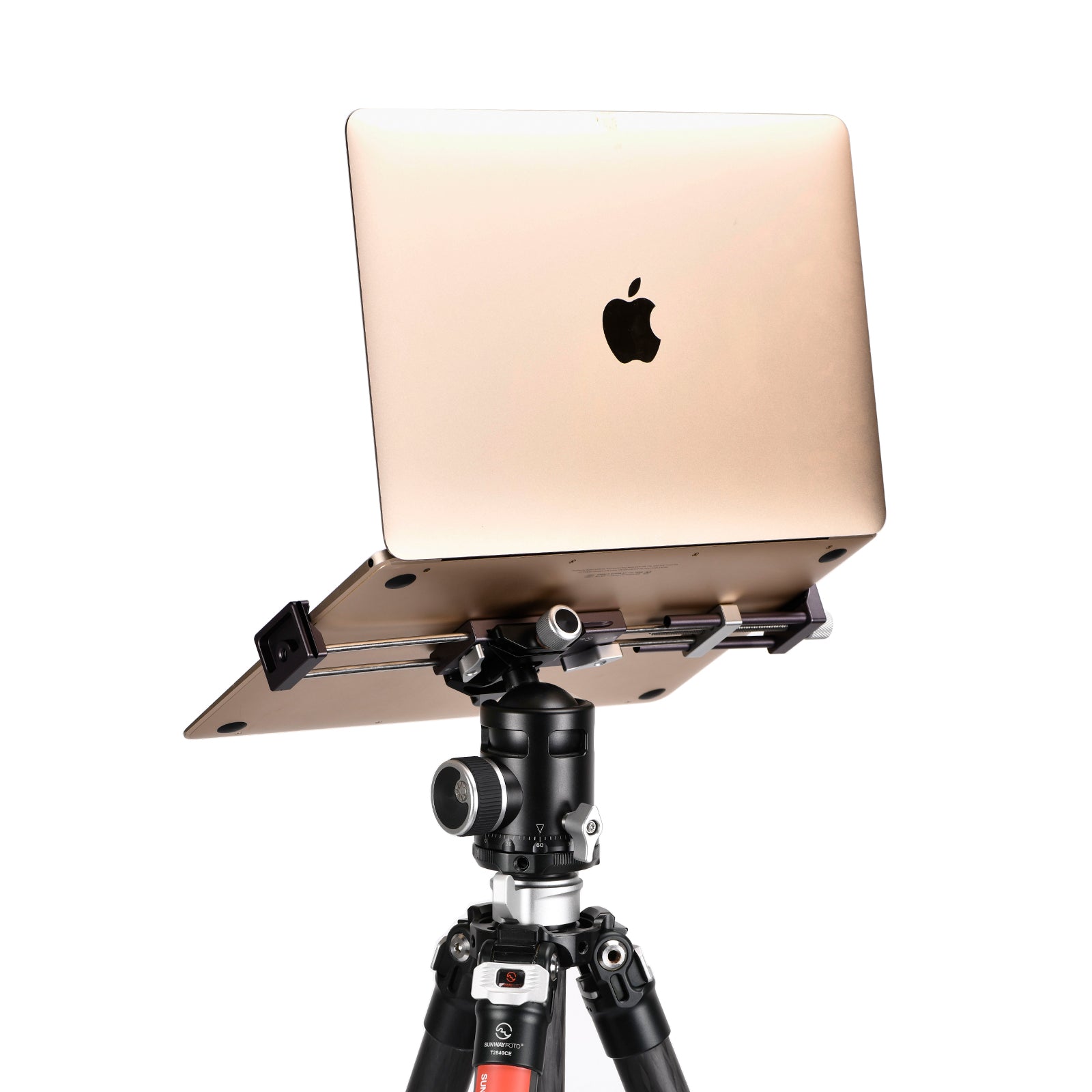

✪With laptop installed, the bracket can be mounted on Arca standard tripod via the Arca dovetail structure (62mm in length) at the back for angles compared with traditional tripod laptop bracket.

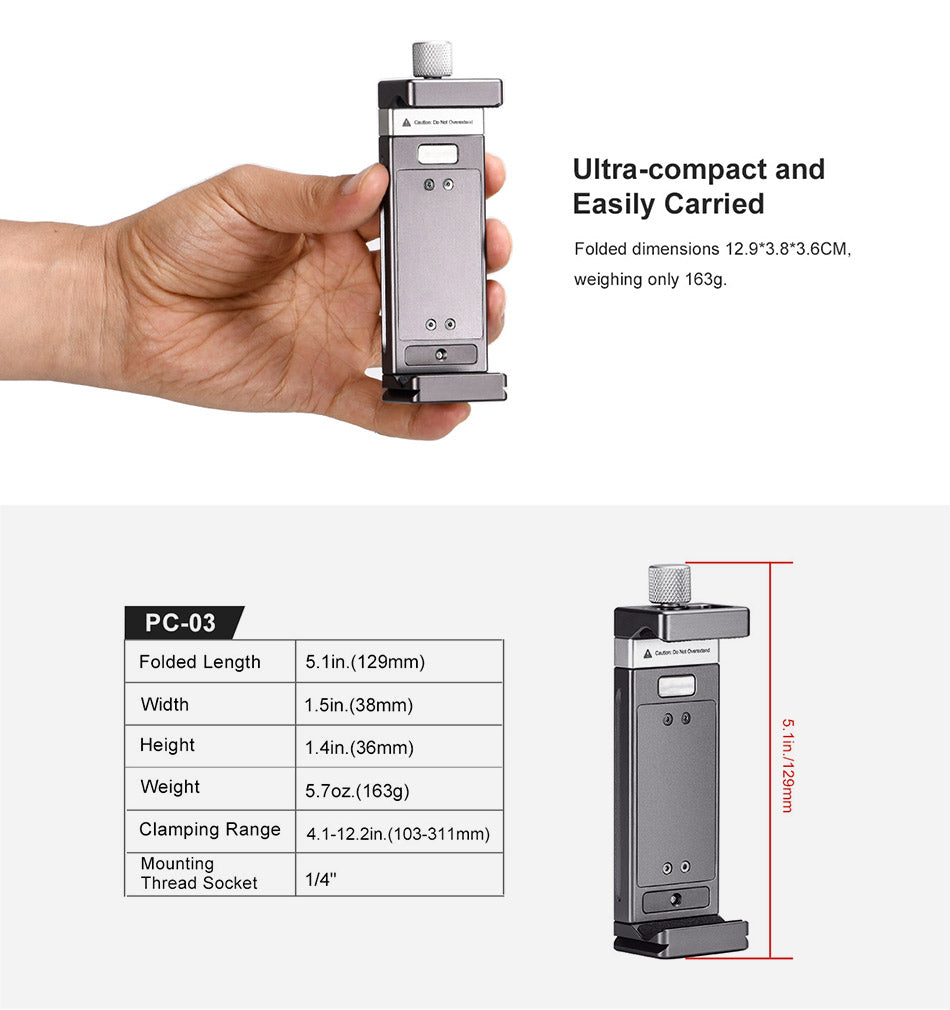

✪Folded Dimensions 5.1*1.5*1.4inch(13*3.8*3.6cm), weighing only 5.75 oz(163 gram）, easy to carry.
