LS-Z9，80mm Universal Rotating Collar for Nikon Z9 ,Canon R3, Tripod Mount Ring Lens Support Collar Arca Swiss Plate Mount DSLR Horizontal Vertical Switching
Check your setup
Match this item to your camera, device and existing support system. Check the model, mounting thread, clamp type and dimensions in the product details.
Ask us about compatibility ↗Shipping & returns
Review delivery information and return conditions before placing your order.
The right connection makes all the difference.
KNOW YOUR EQUIPMENT
The details make the difference.

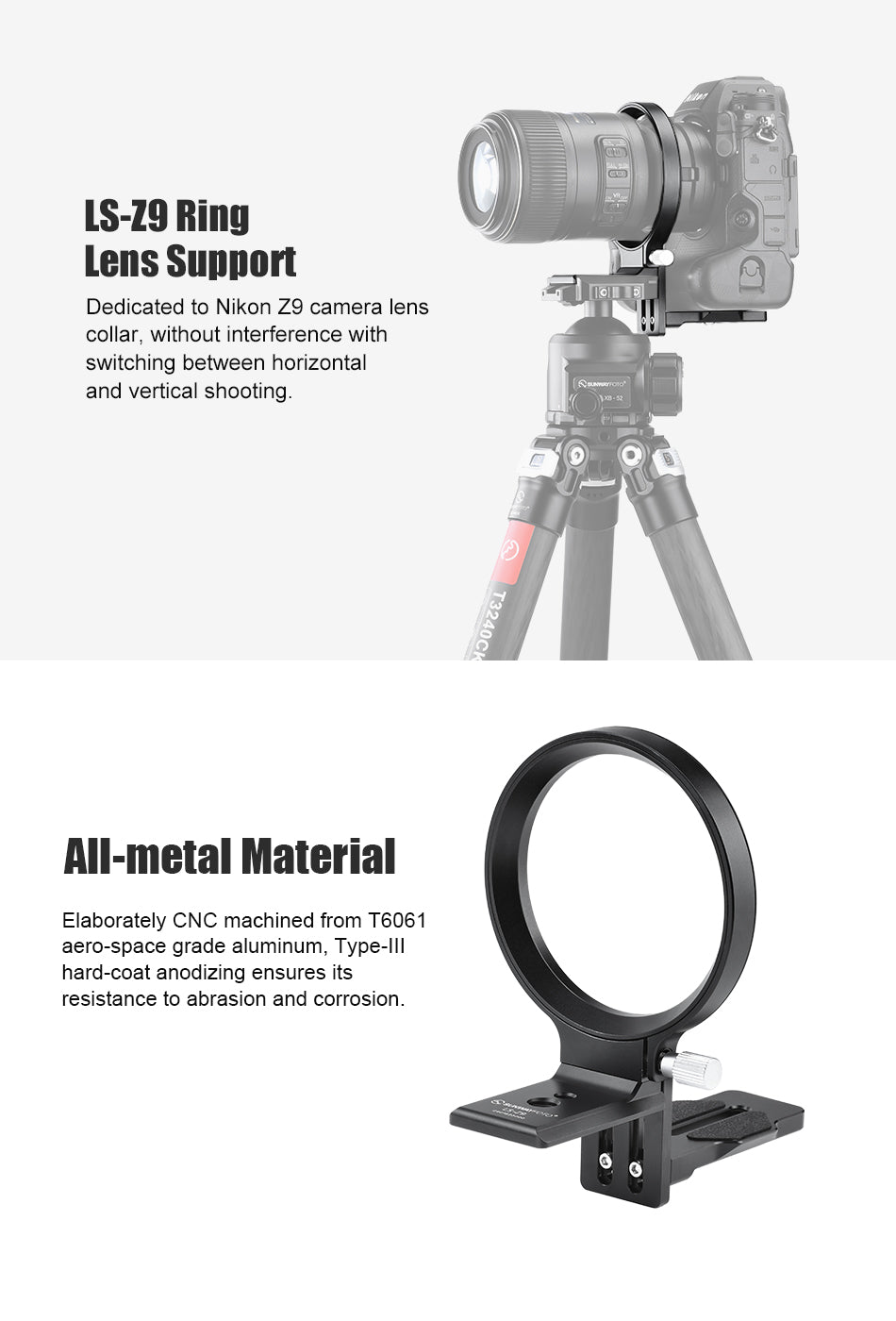

Aero-space grade aluminum material, elaborately CNC machined with high standard hard-anodized finish, making it extremely durable.

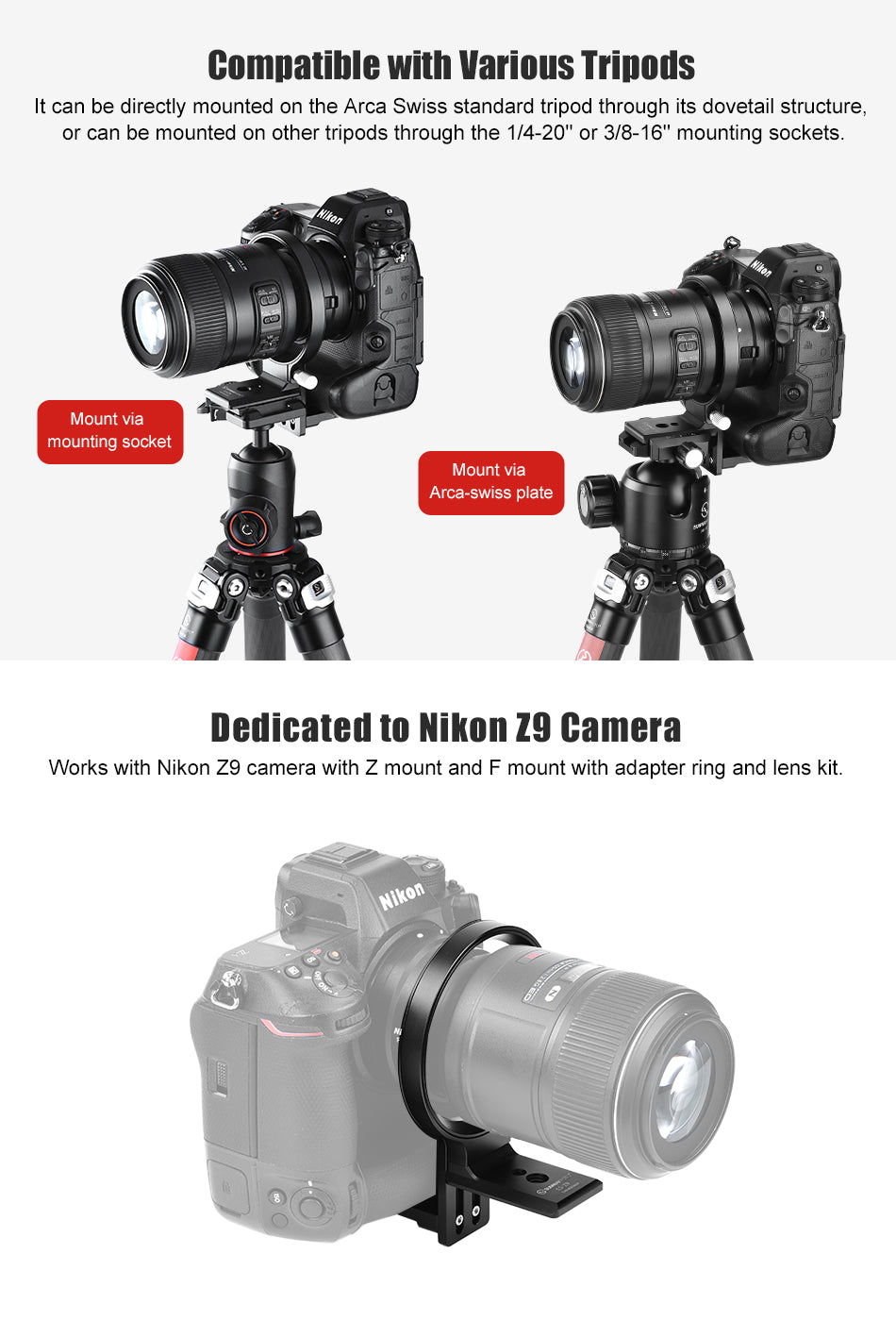

The QR plate uses Arca-swiss dovetail structure, compatible with tripods or ballheads of different brands such as Arca-Swiss/RRS/SIRUI/BENRO/FOTOPRO/MARKINS.

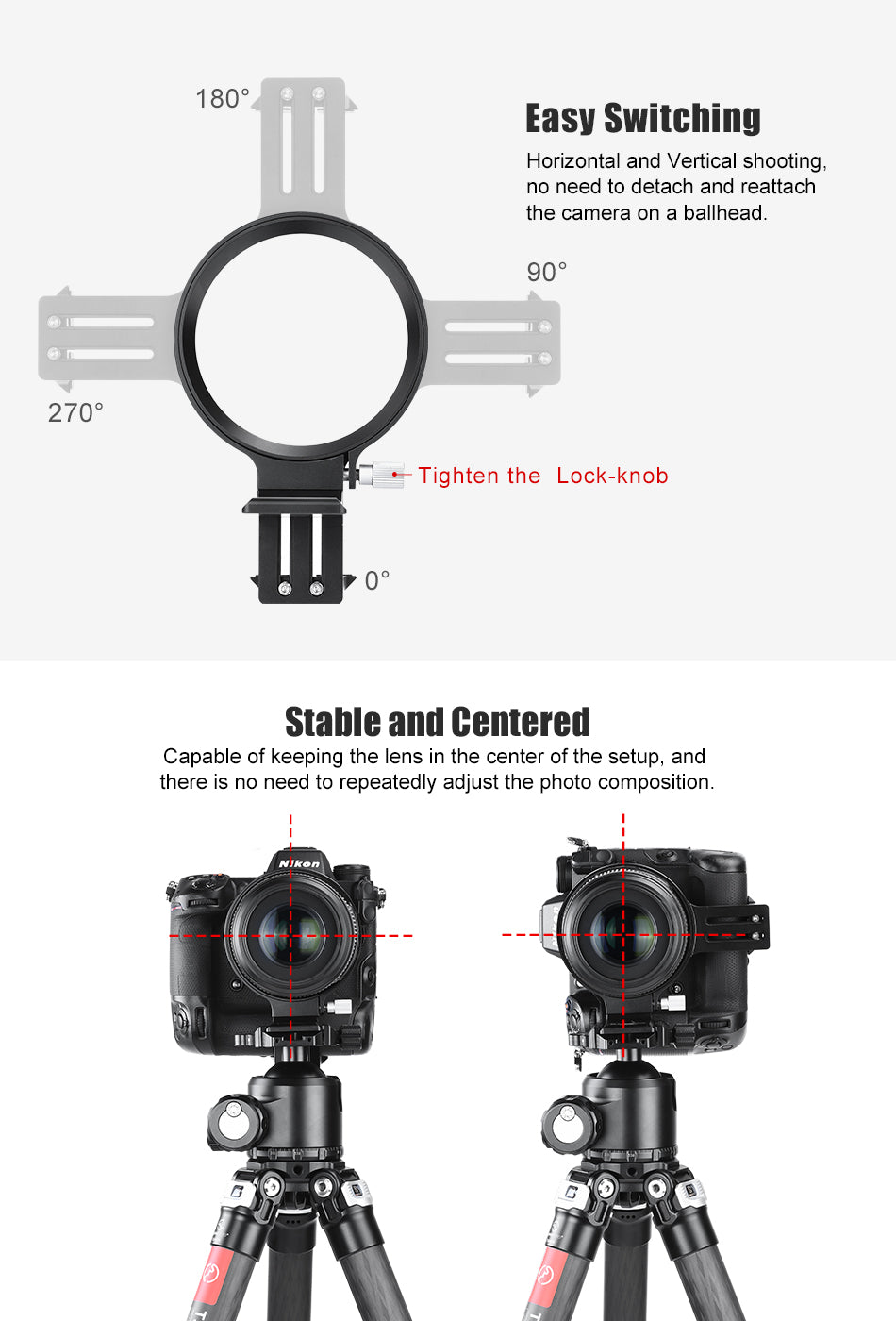

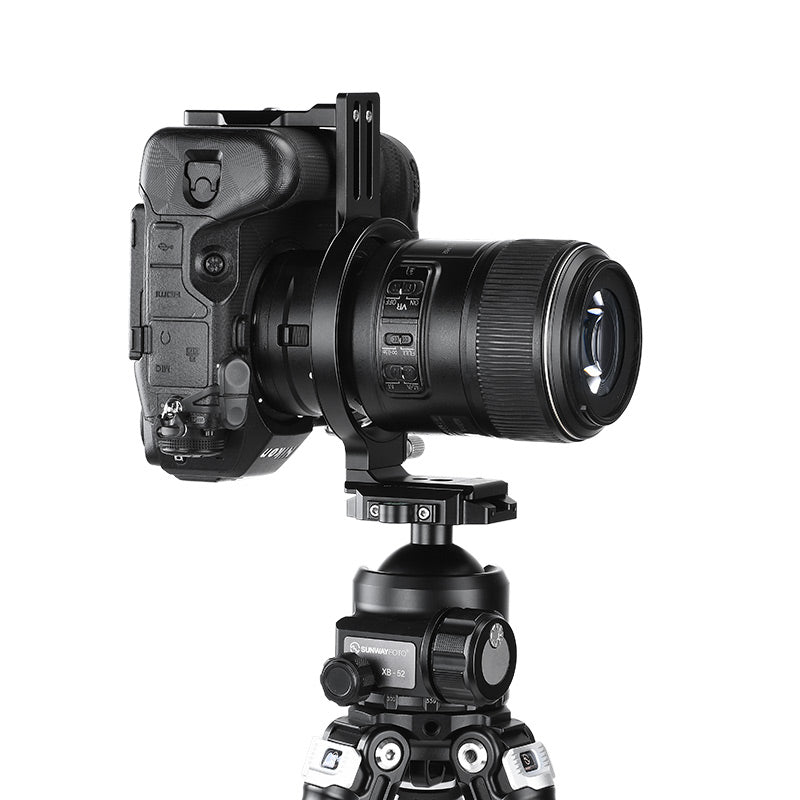

Easy Switching between Horizontal and Vertical: Loosen the lock-knob and rotate the camera body to certain stop and then tighten the lock-knob to switch the camera from horizontal to vertical position without removing the camera from ballhead.

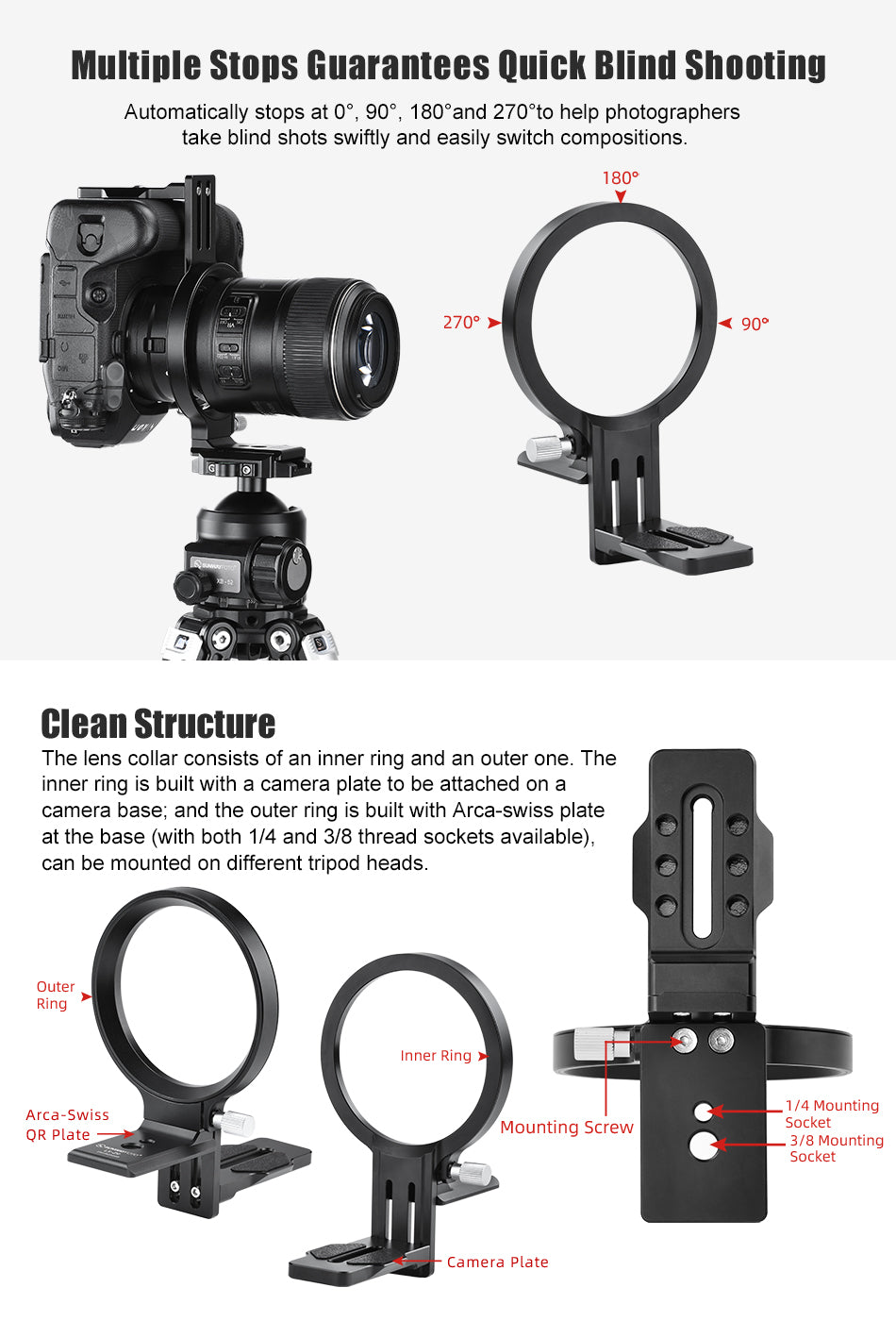

Clean Structure: Consists of an inner ring and an outer one. The inner ring is built with a camera plate to be attached on a camera base; and the outer ring is built with Arca-swiss plate at the base (with both 1/4 and 3/8 thread sockets available), can be mounted on different tripod heads.

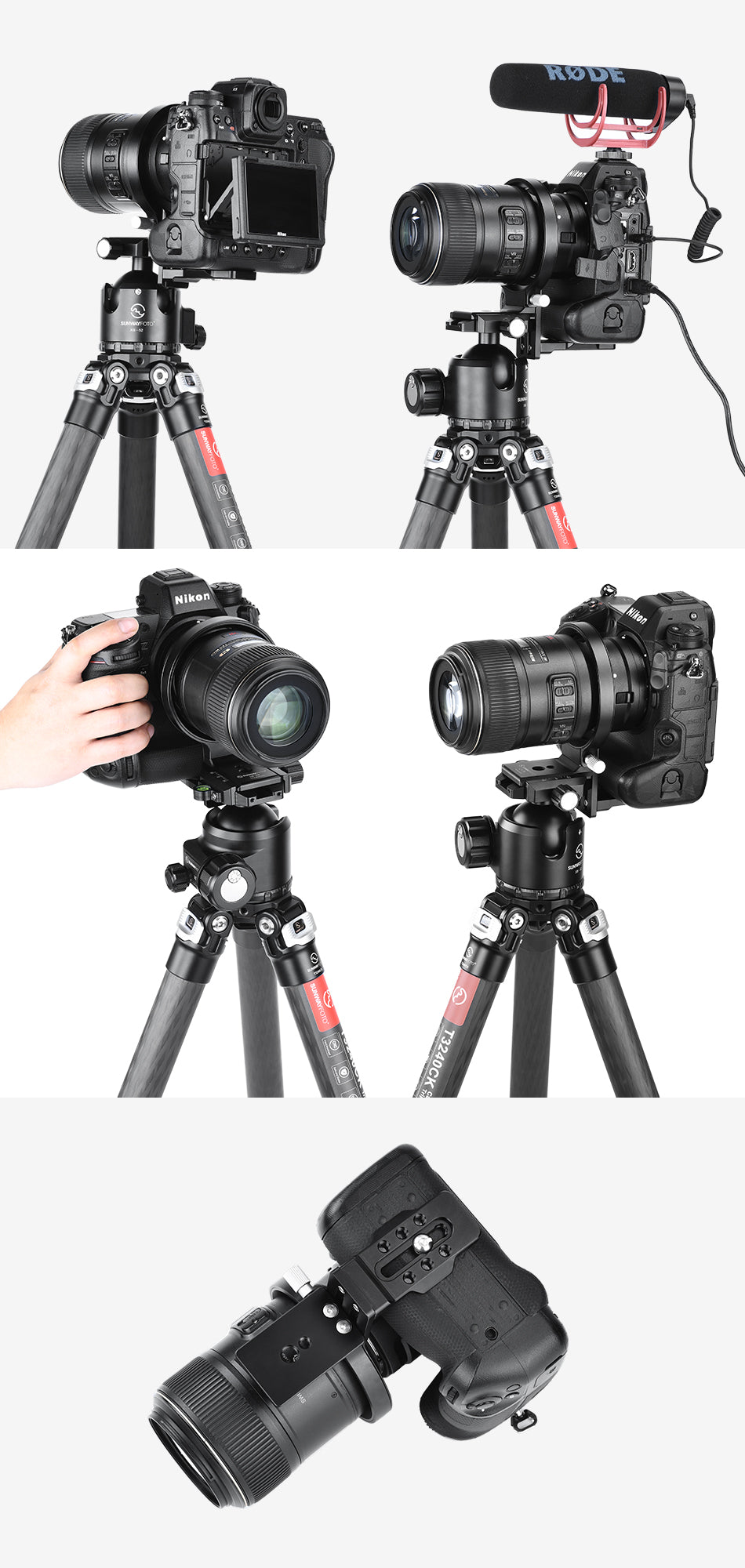

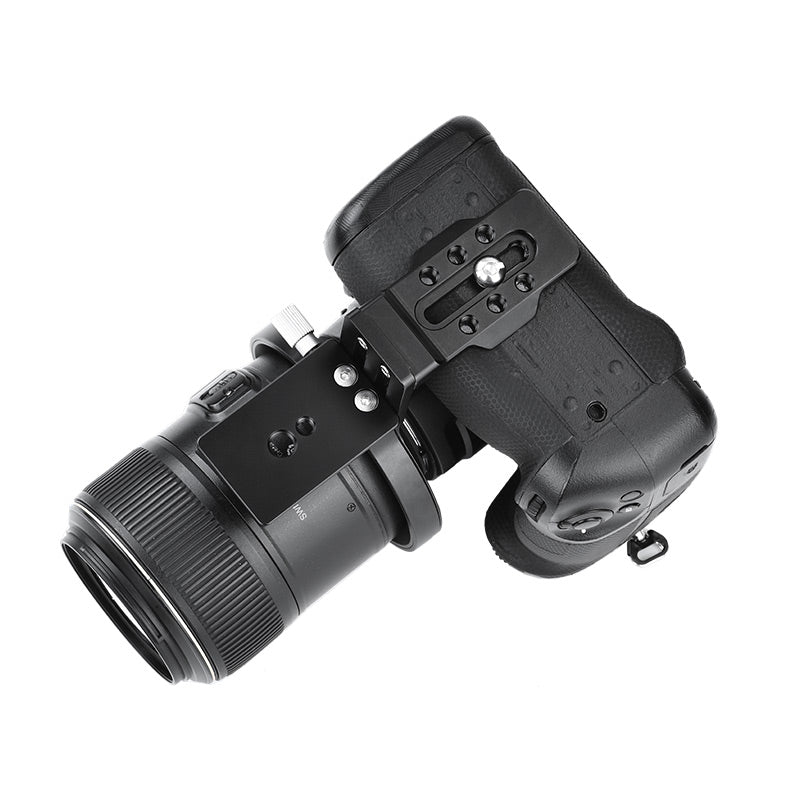

Easy to Install: firstly attach the camera body on the lens support, then attach the lens on the camera and mount the whole set on the tripod via the Arca-swiss QR plate on the ballhead or mount on a tripod directly via the base thread socket.

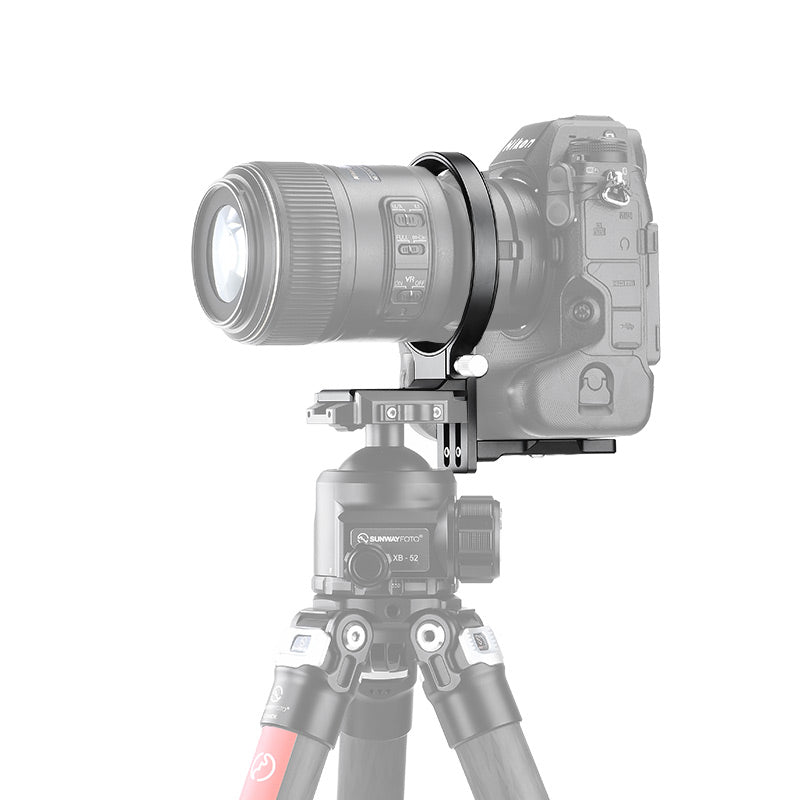

Better Stability: by using a lens collar, and install the whole camera and lens kit on a tripod via its base plate making the center of gravity lies between the camera and lens, which provides better balancing and stability.

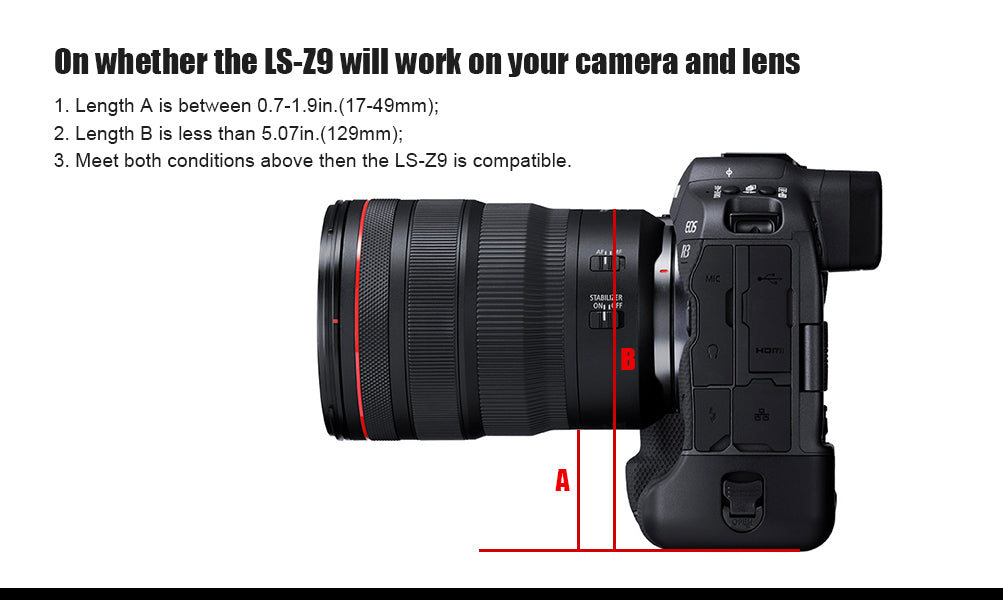

The inner diameter of the inner ring is 80.0mm, compatible with Nikon Z9 and Canon EOS R3.
Related Products：PNL-Z9

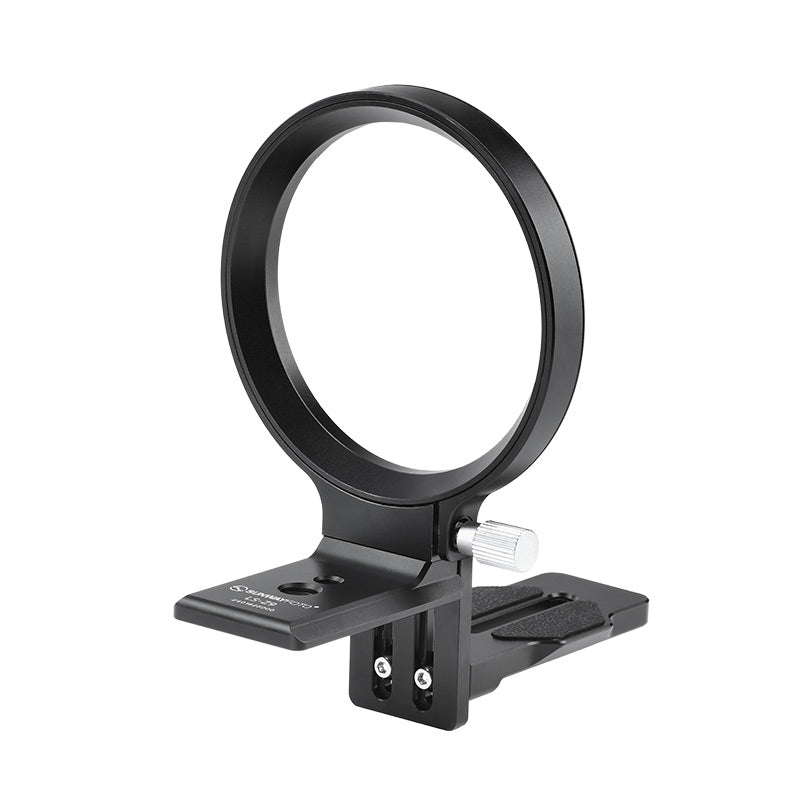

LS-Z9 Ring Lens Support

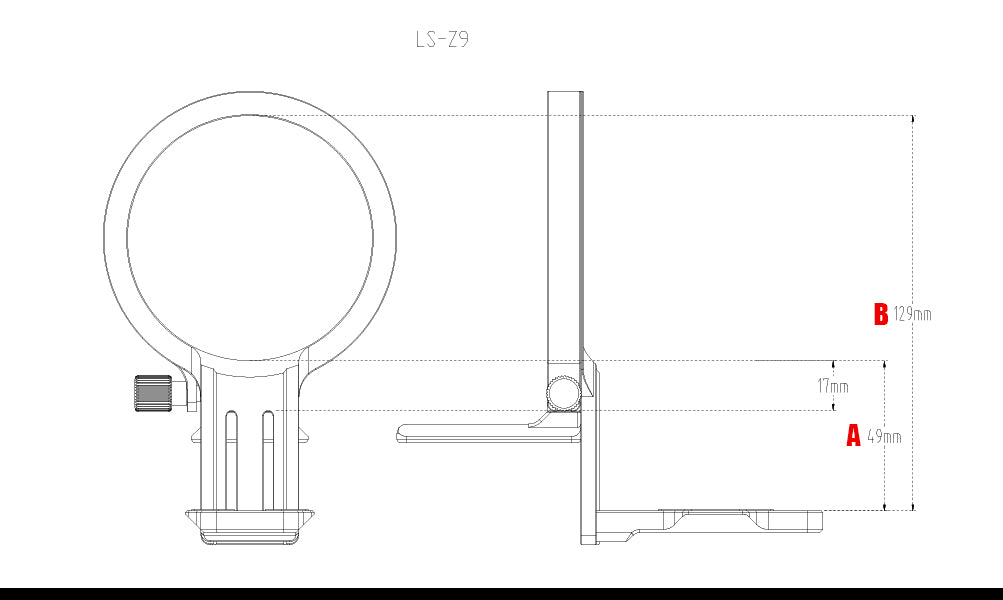

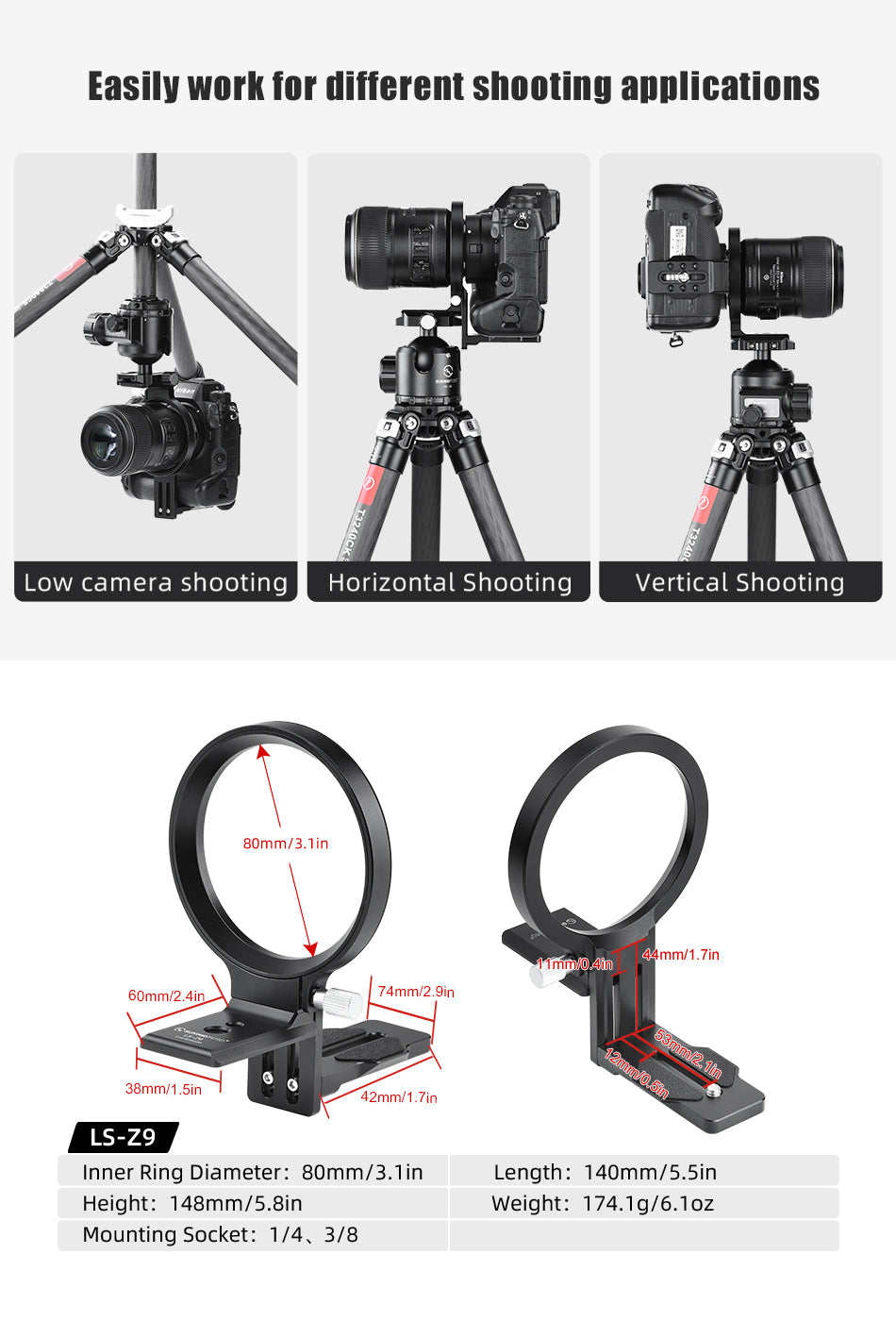

Model: LS-Z9
Inner Ring Diameter：80mm/3.1in
Length：140mm/5.5in
Height：148mm/5.8in
Weight：174.1g/6.1oz
Mounting Socket：1/4、3/8
