T4040CS-D Hunting Tripod for Shooting Rifle Stand Carbon Fiber,40mm,4 Sections,load 88lbs(40kgs),with Arca-Swiss Picatinny Adapter Clamp
Check your setup
Match this item to your camera, device and existing support system. Check the model, mounting thread, clamp type and dimensions in the product details.
Ask us about compatibility ↗Shipping & returns
Review delivery information and return conditions before placing your order.
The right connection makes all the difference.
KNOW YOUR EQUIPMENT
The details make the difference.

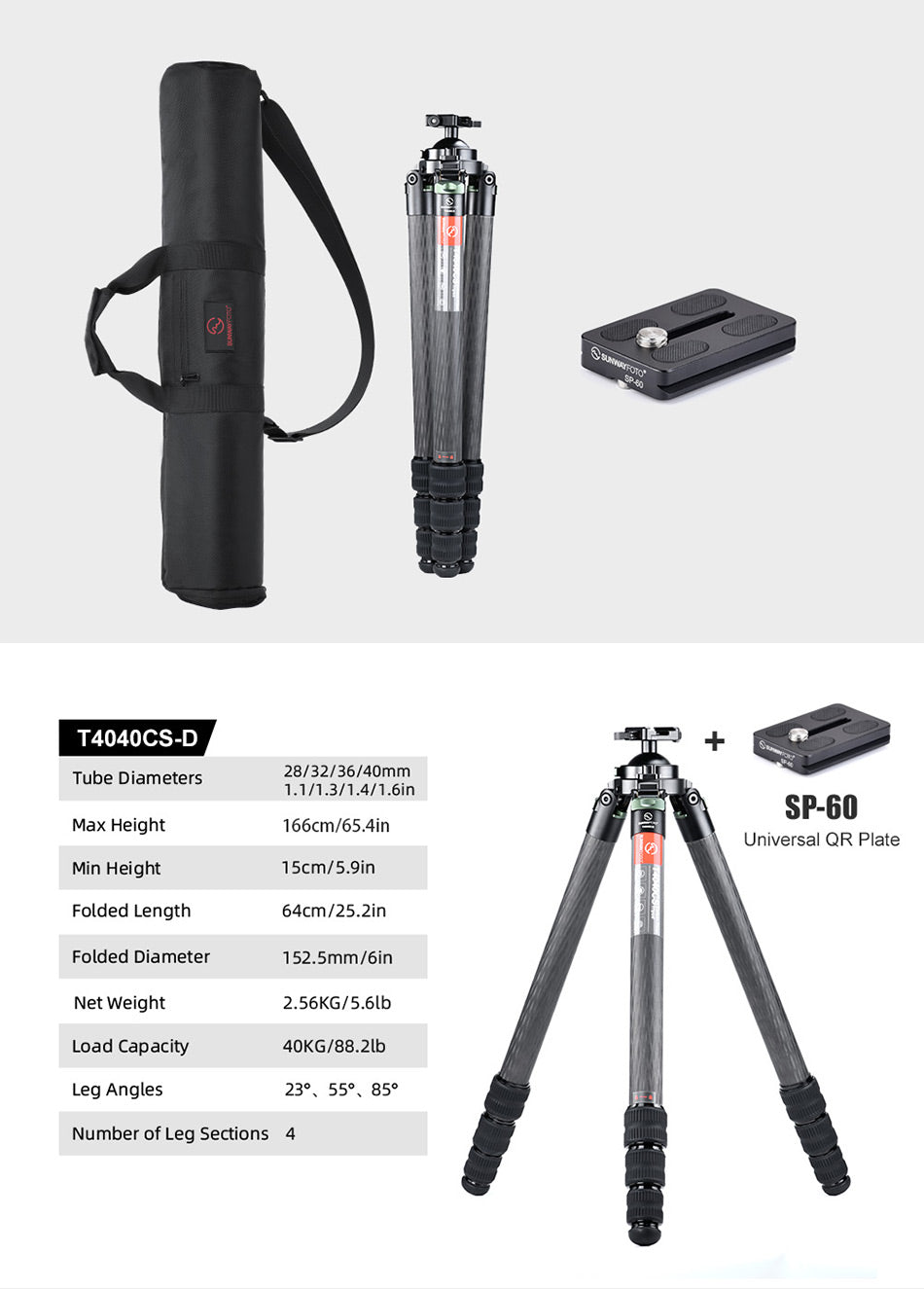

Carbon Fiber Tripod Kit T4040CS-D
Model: T4040CS-D
Tube Diameters:28/32/36/40mm

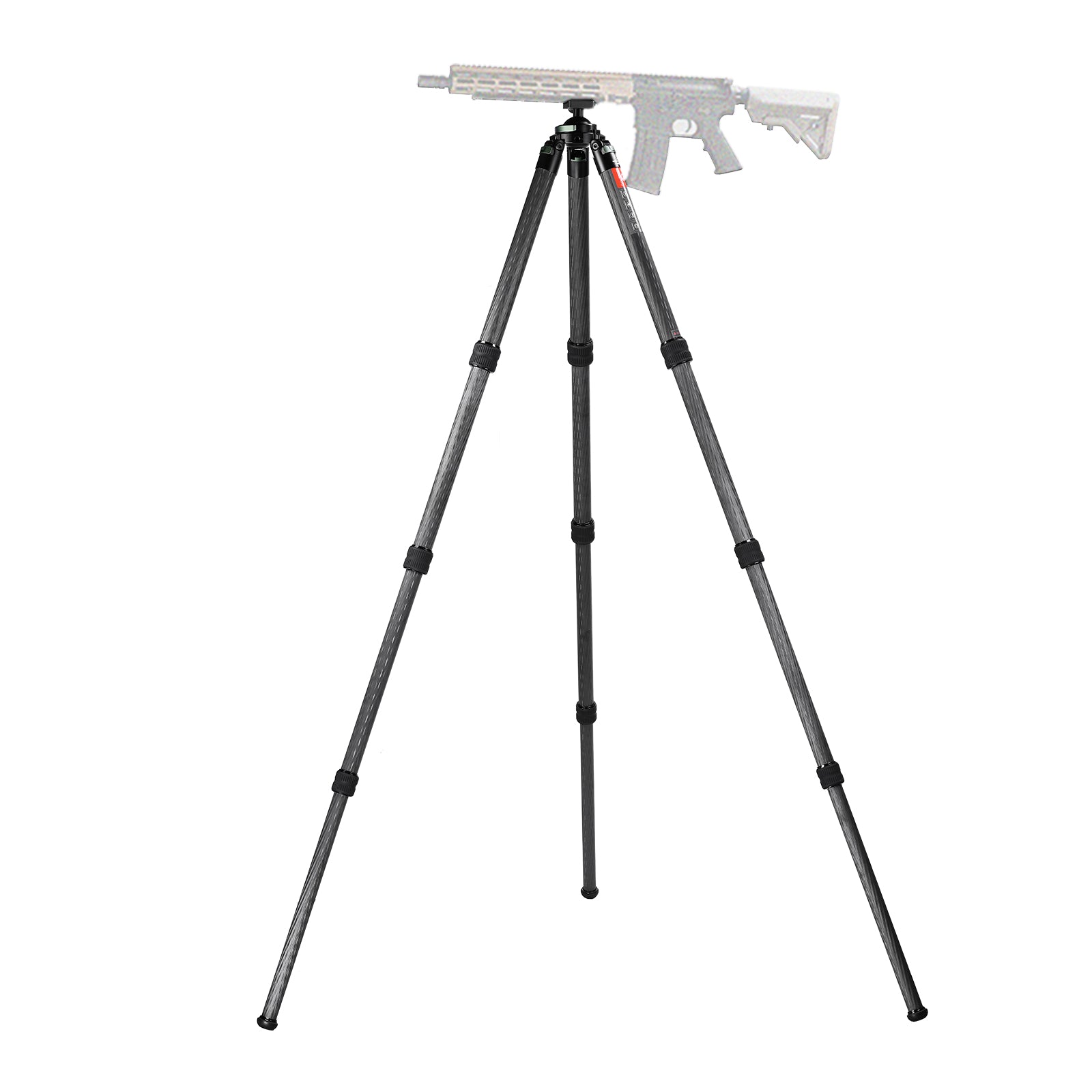

Max Height:166cm/65.4in
Min Height:15cm/5.9in

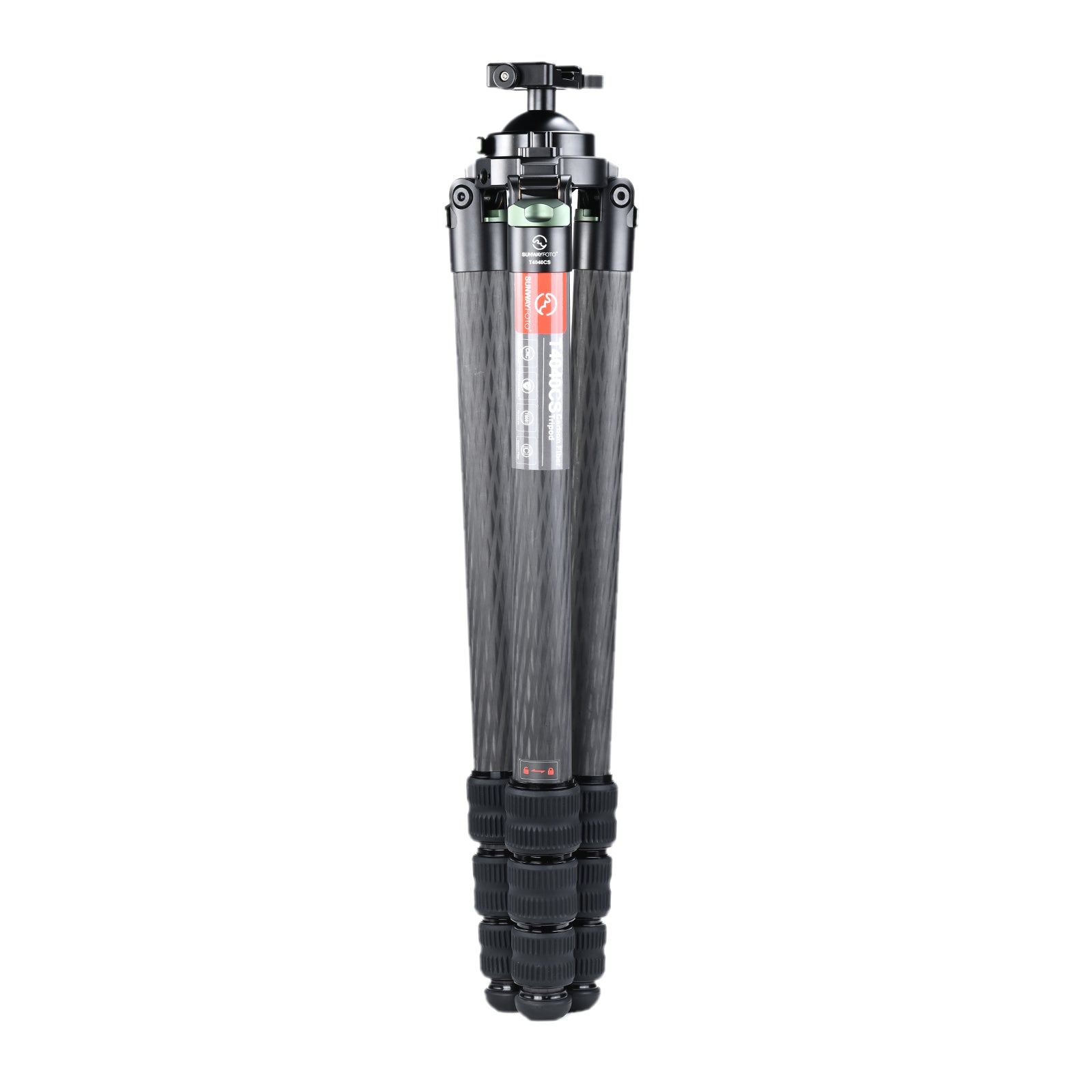

Folded Length:64cm/25.2in
Folded Diameter:152.5mm/6in
Net Weight:2.56KG/5.6lb
Load Capacity:40KG/88.2lb

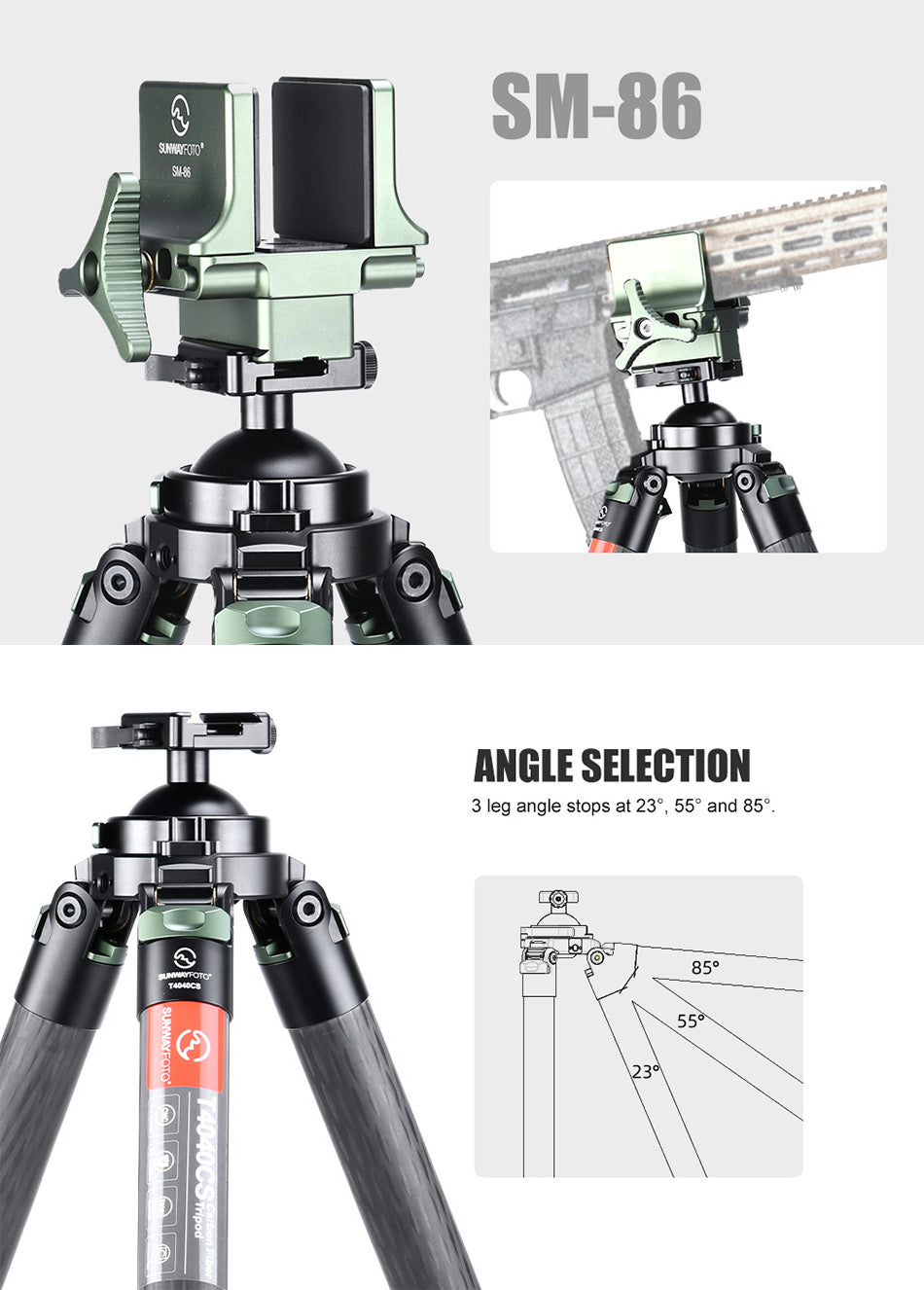

Leg Angles:23°、55°、85°
Number of Leg Sections:4

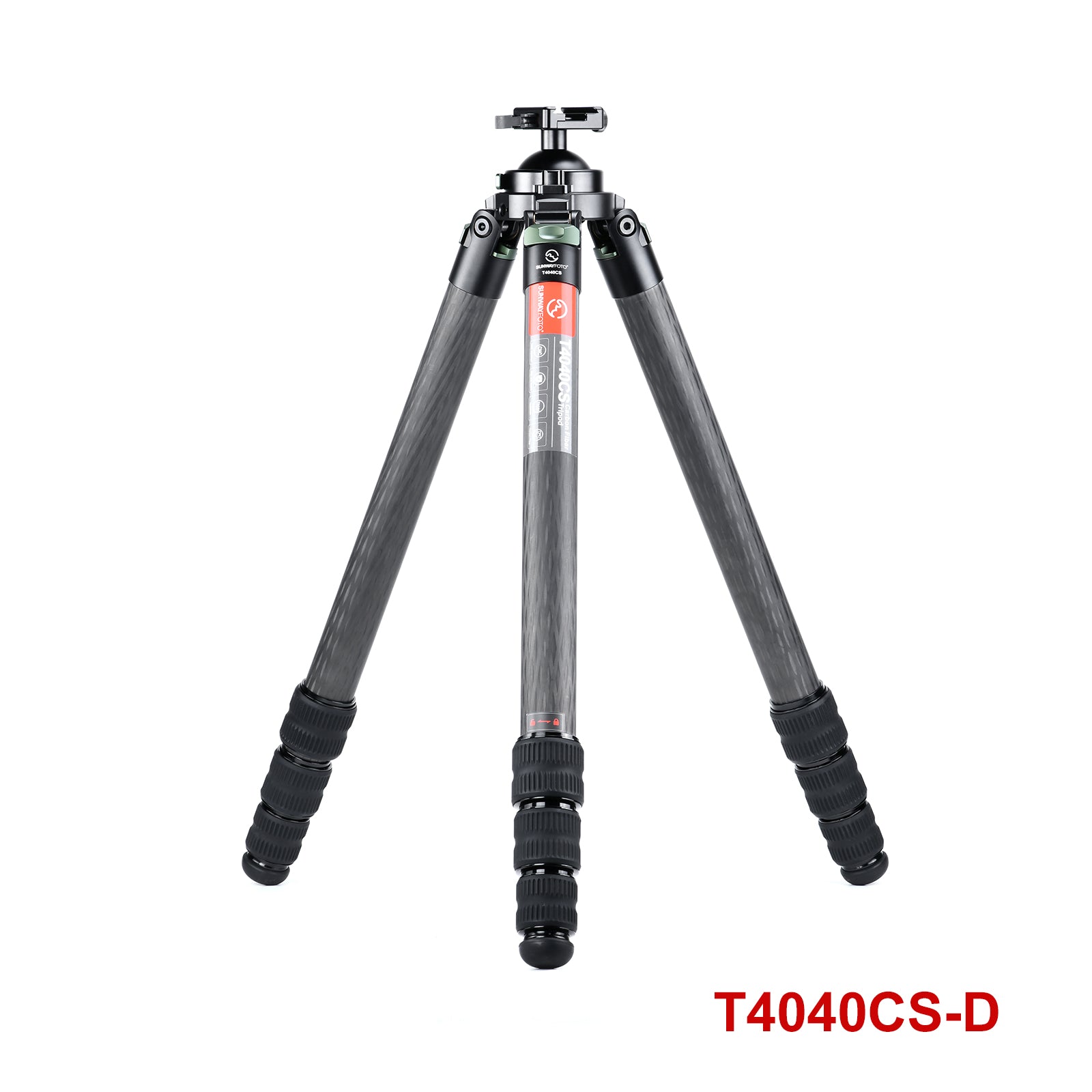

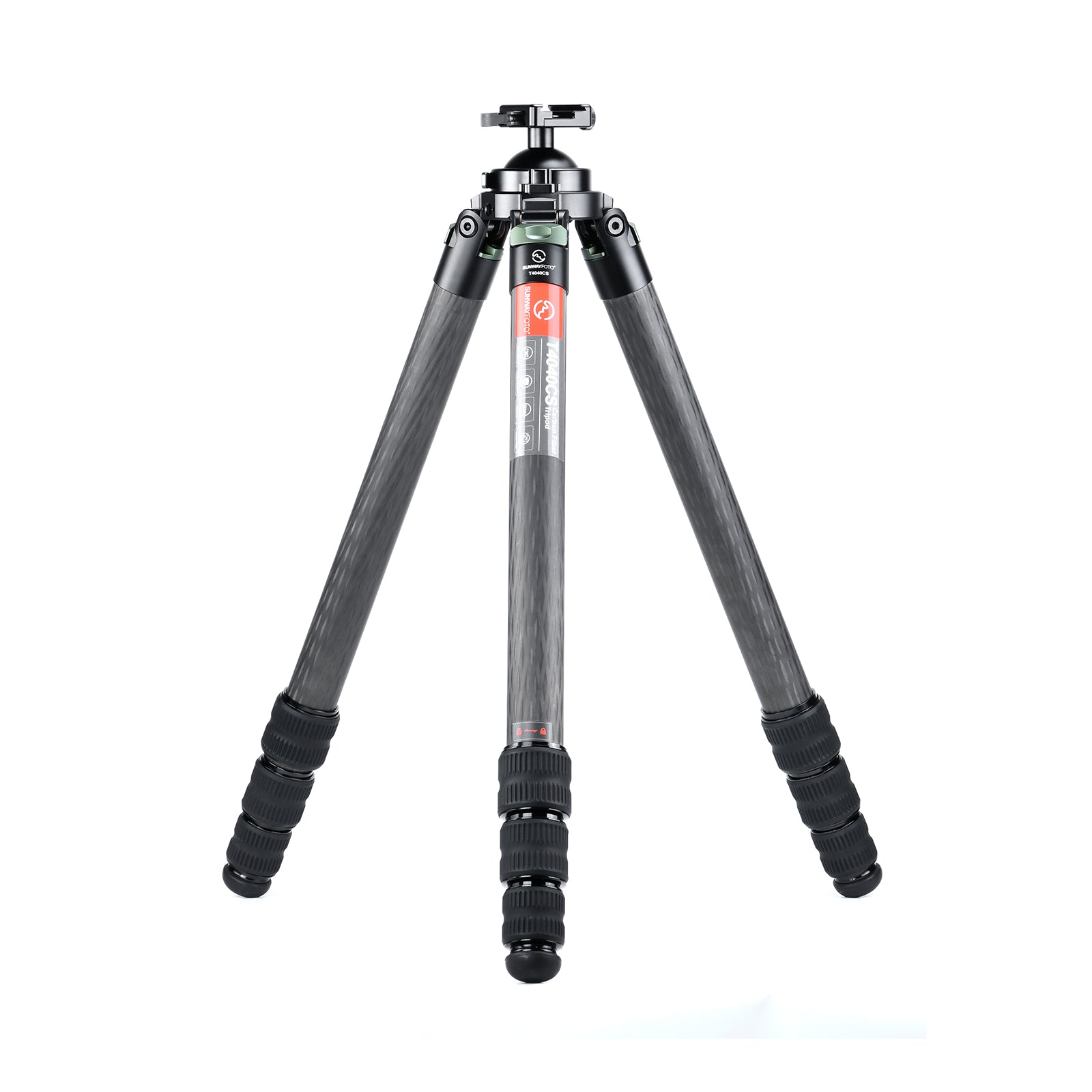

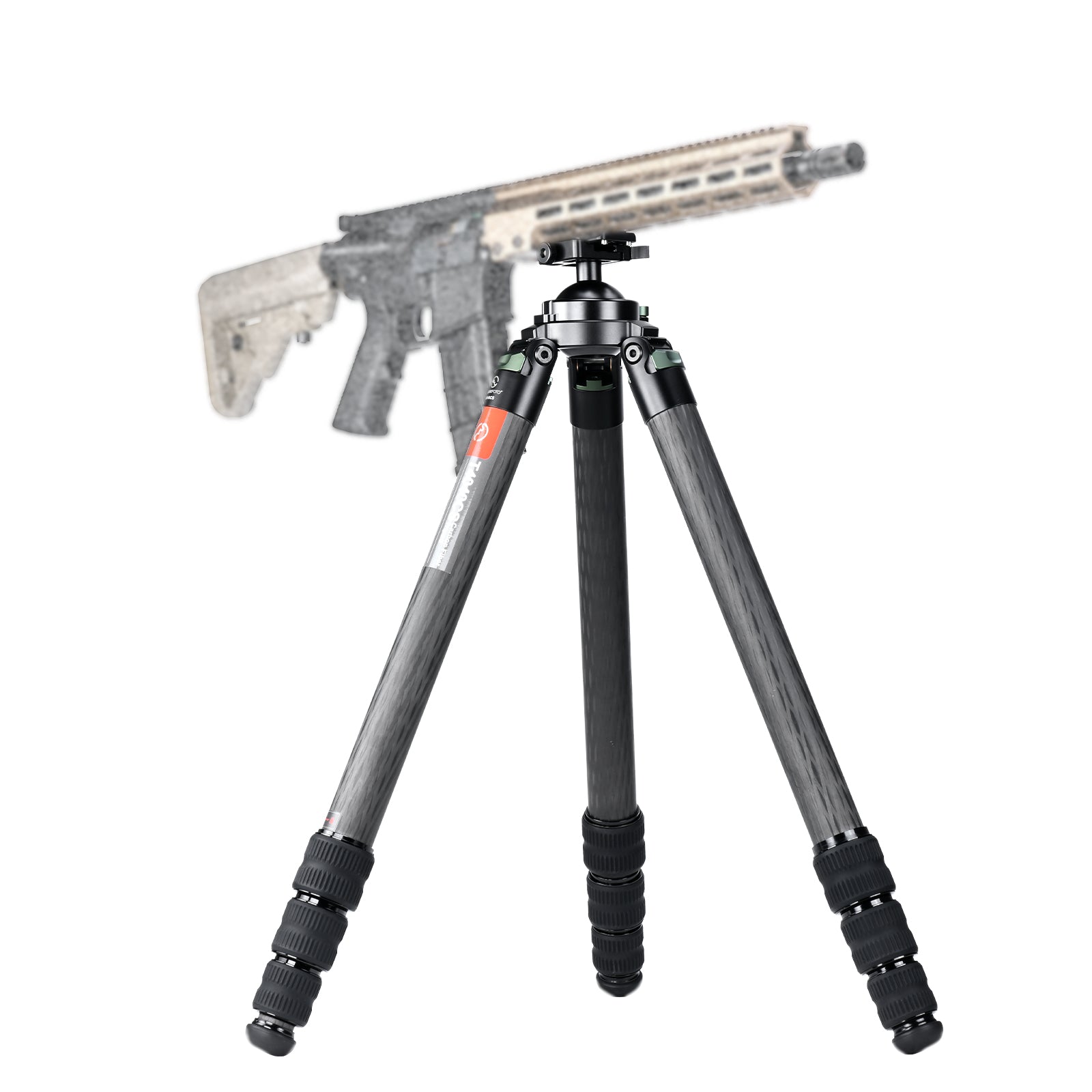

T4040CS-D tripod kit is one tripod ballhead combo specially designed for hunting and shooting.

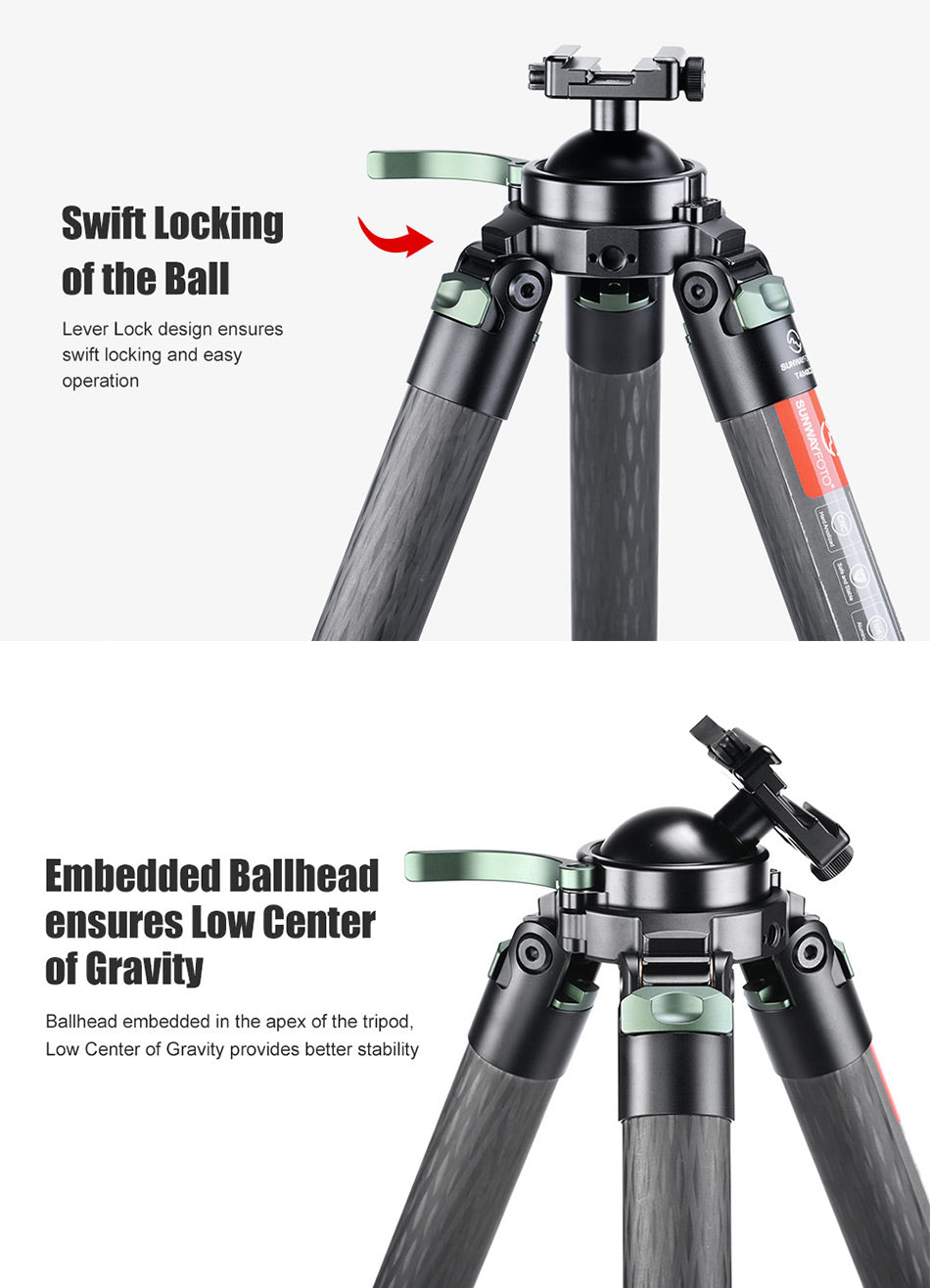

Undetachable ballhead design provides lower center of gravity hence better stability.

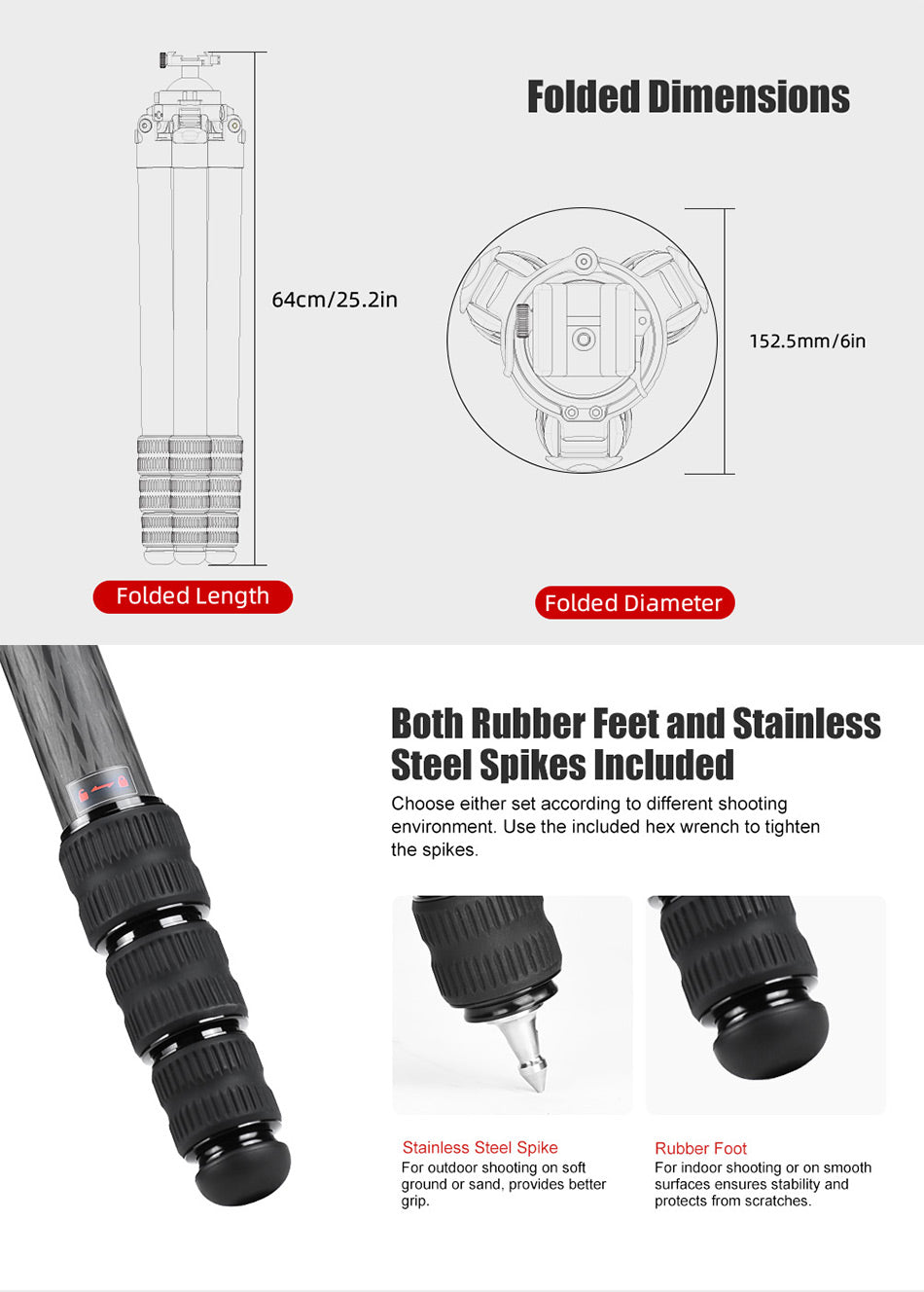

Folded Dimensions 6in.(15.3cm)*25.2in.(64cm), Net weight 5.60 lb.(2.56kg), with load capacity of 88 lbs(40kg).

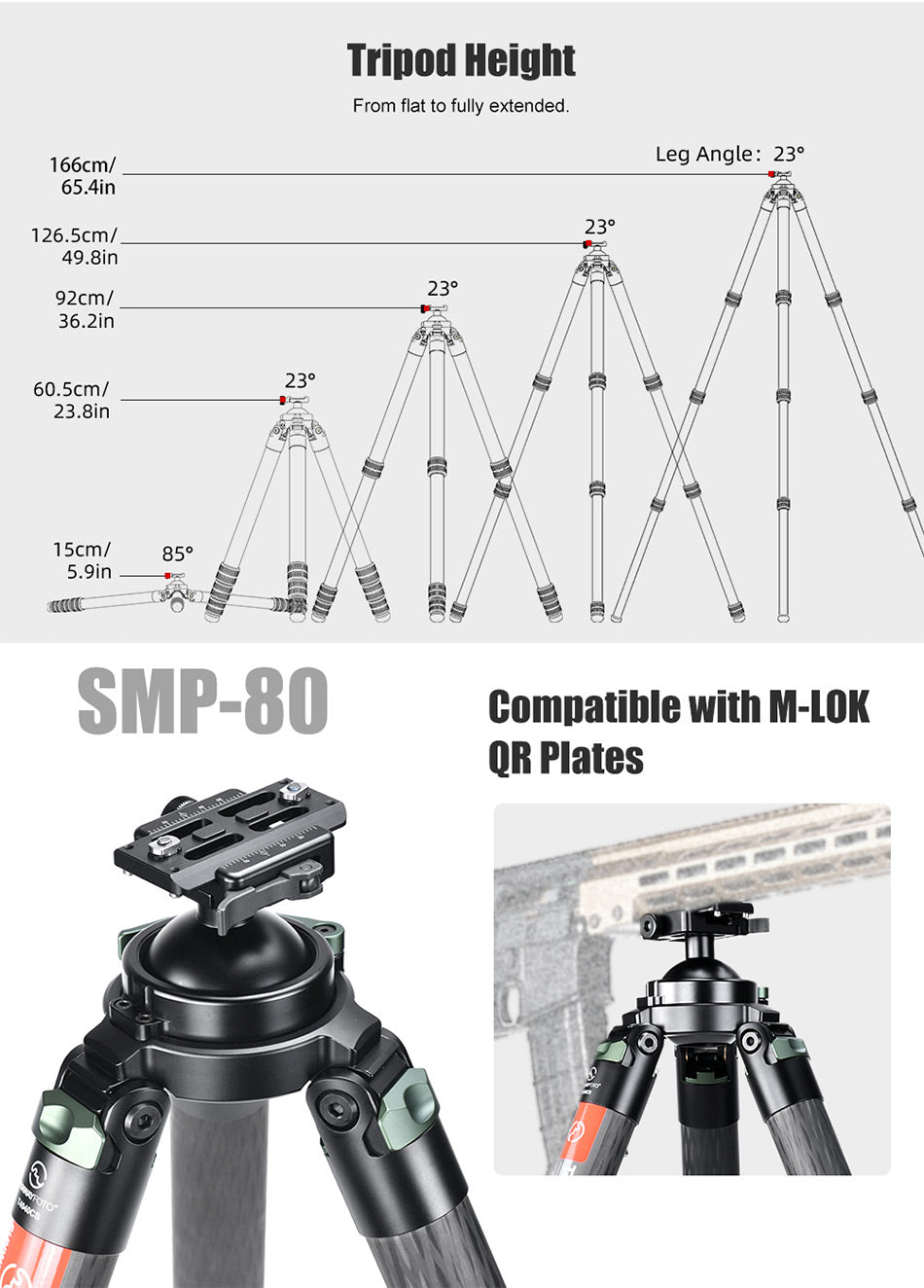

4 Leg sections, 3 leg angles of (23/55/85), tripod height from 5.9-66in.(15-166cm).

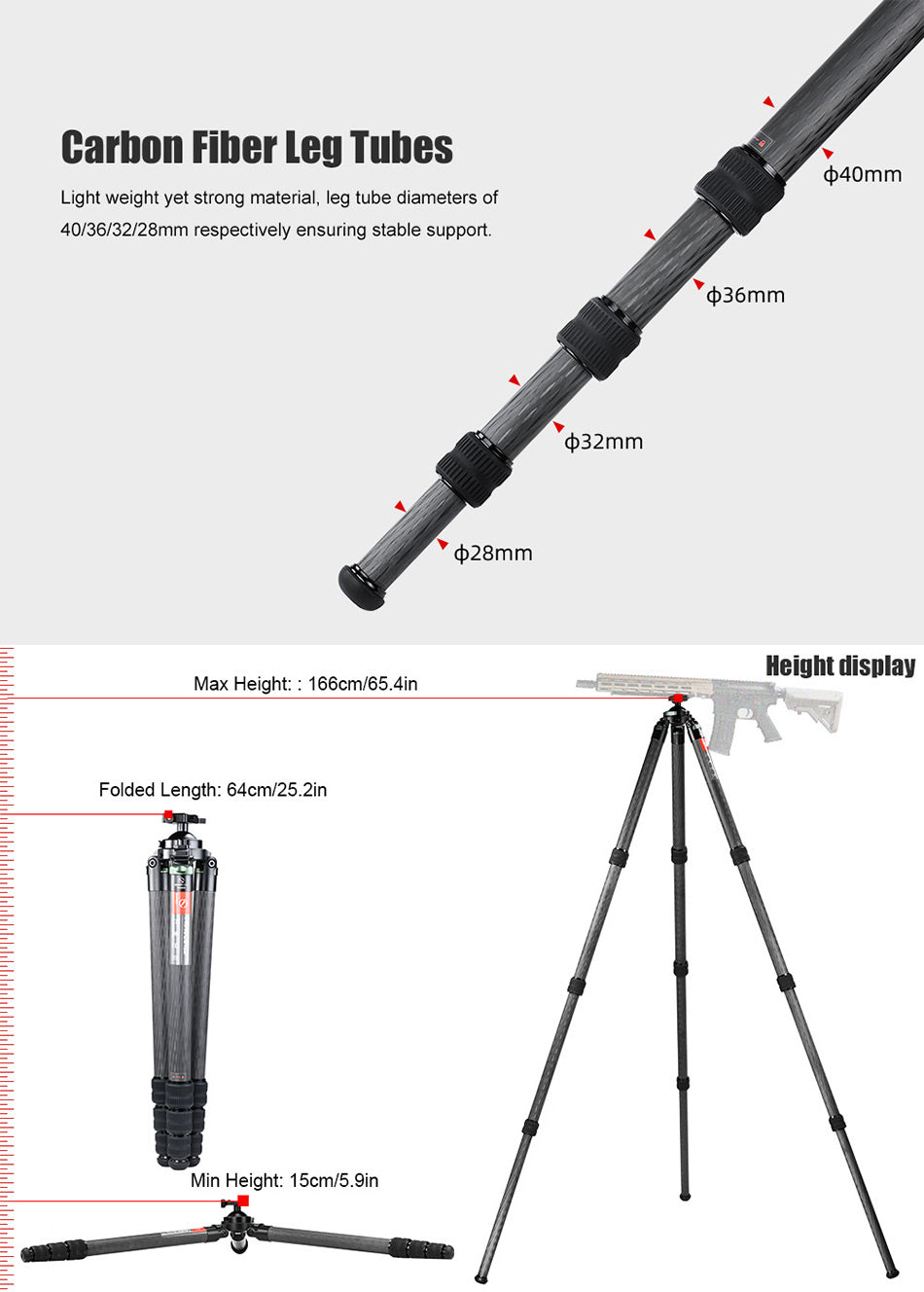

Tube diameters of 40/36/32/28mm(1.6/1.4/1.3/1.1in).

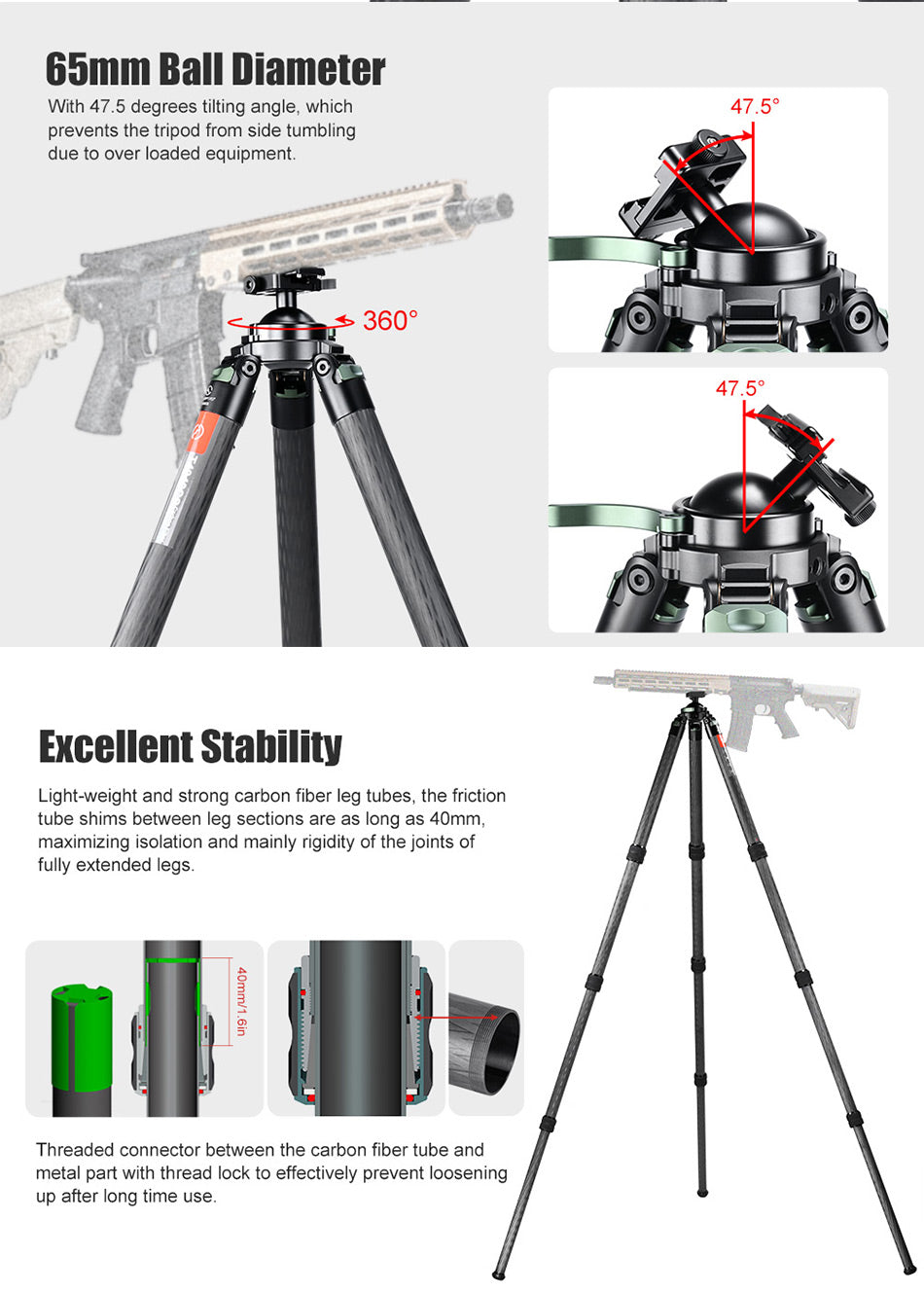

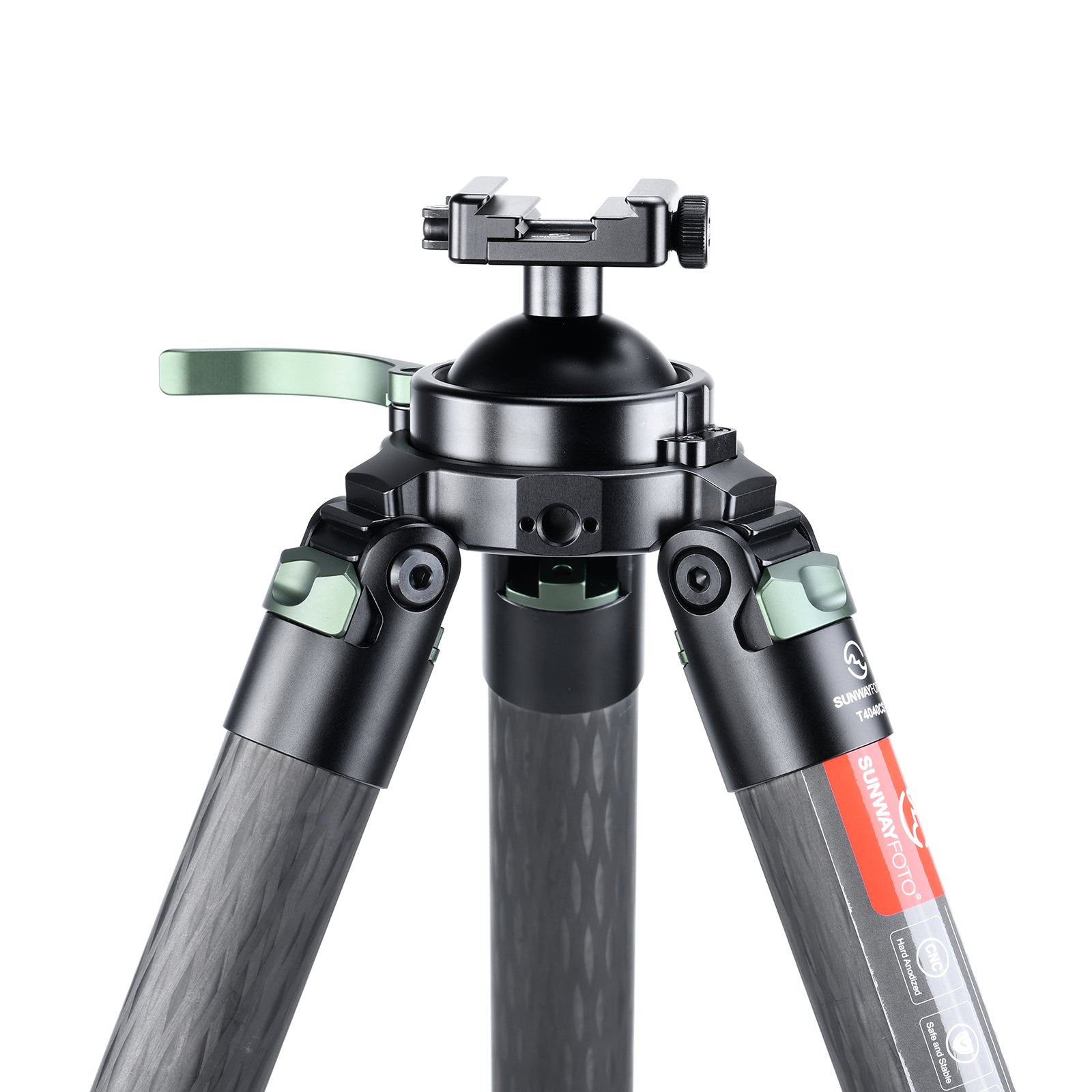

Ball diameter 65mm, with 47.5 degrees tilting angle, which prevents the tripod from side tumbling due to over loaded equipment.

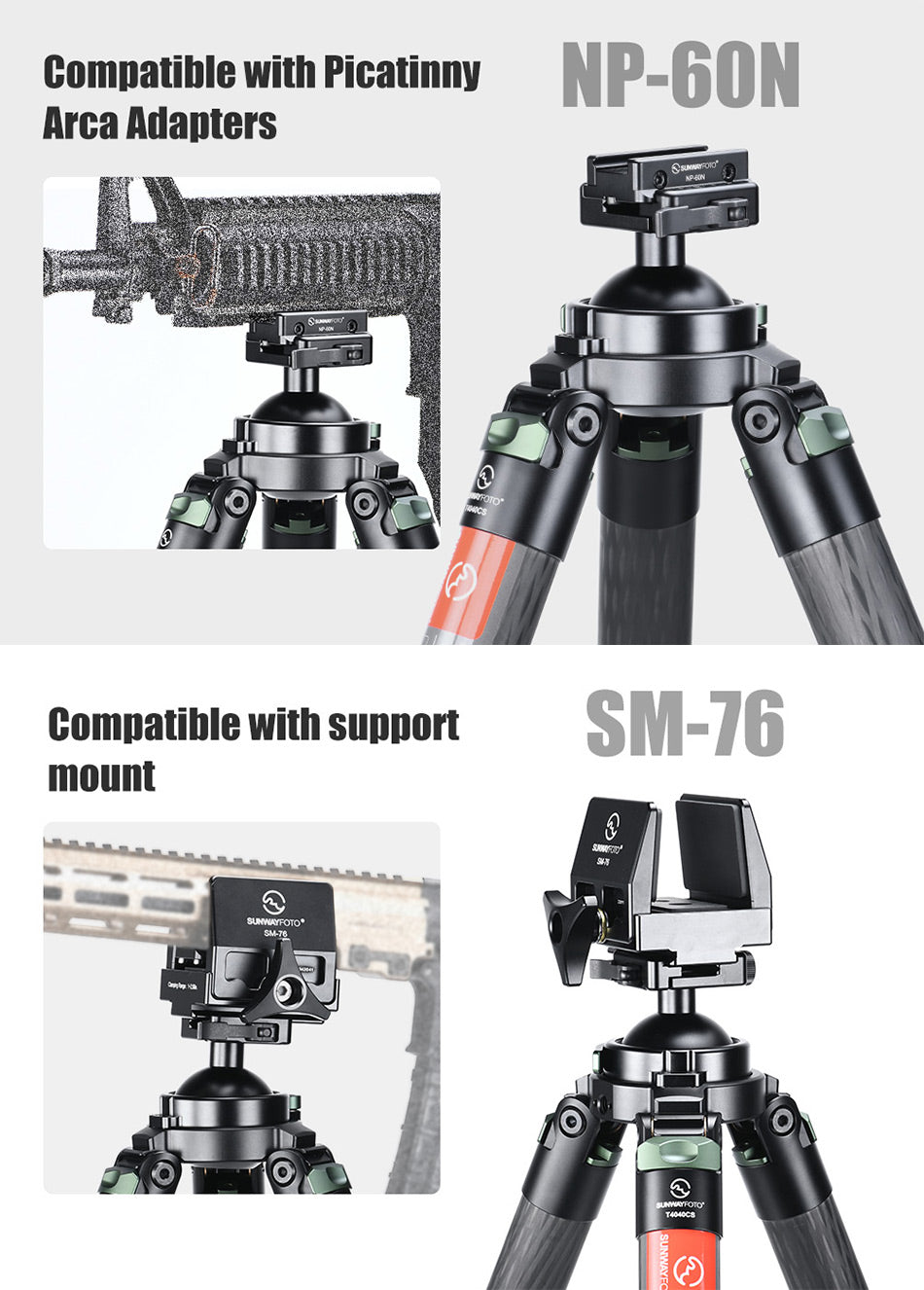

Both the screw-knob and lever-lock can be used for tightening, which also provides better compatibility of different QR plates as well as quick-locking.Two groove standards: Arca and Pitcatinny/Nato dovetail structures
Clamp width can be fine tuned to work with different Arca QR plates.Anti-slip block effectively avoids dropping of the loaded equipment under power shock.
6-year warranty service, any malfunction within 6 years under normal use enjoy free repair service.
